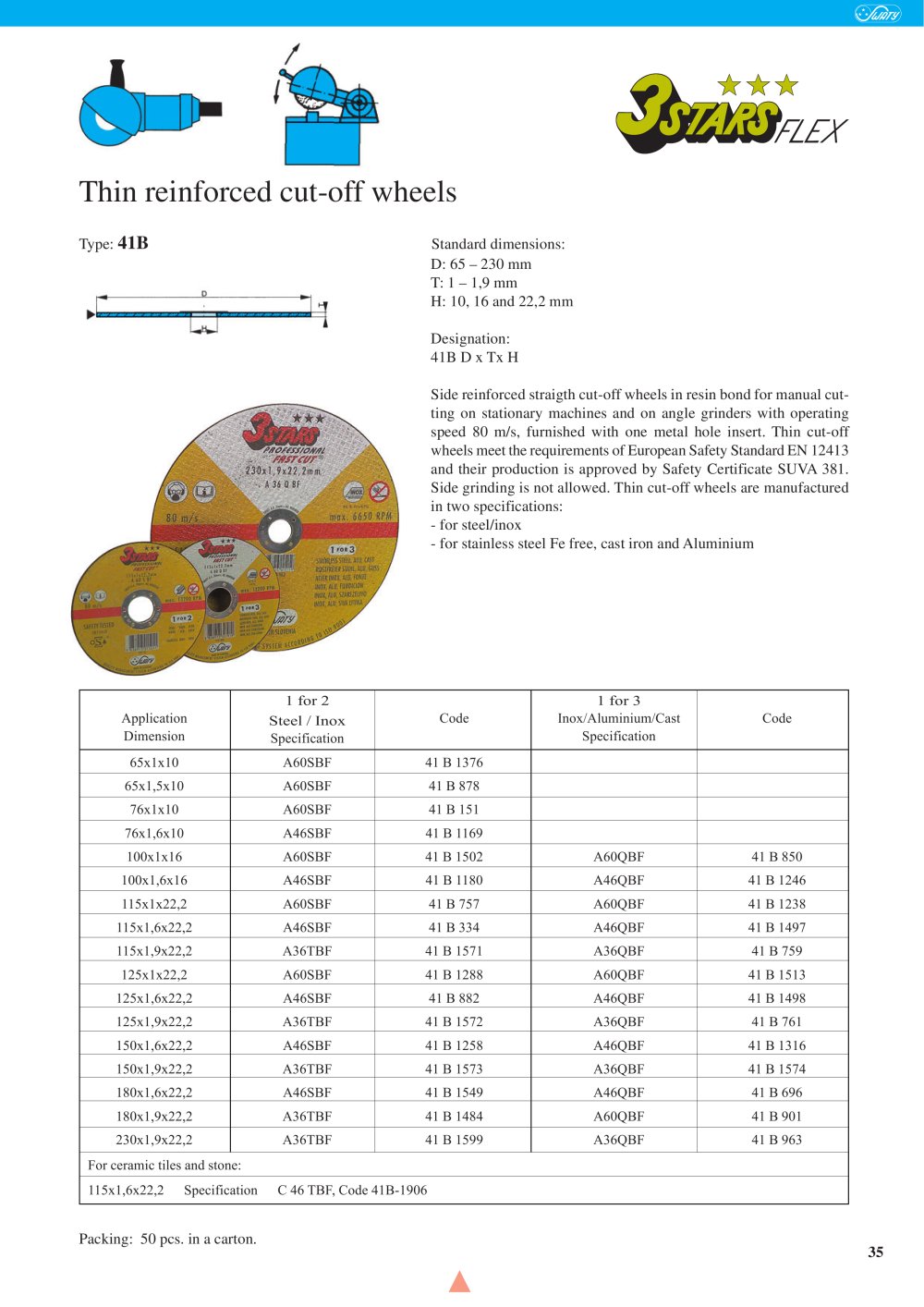

Thin reinforced cut-off wheels Type: 41B Standard dimensions: D: 65 – 230 mm T: 1 – 1,9 mm H: 10, 16 and 22,2 mm Designation: 41B D x Tx H Side reinforced straigth cut-off wheels in resin bond for manual cutting on stationary machines and on angle grinders with operating speed 80 m/s, furnished with one metal hole insert. Thin cut-off wheels meet the requirements of European Safety Standard EN 12413 and their production is approved by Safety Certificate SUVA 381. Side grinding is not allowed. Thin cut-off wheels are manufactured in two specifications: - for steel/inox - for stainless steel Fe free, cast iron and Aluminium Packing: 50 pcs. in a carton. 35 1 for 2 1 for 3 Application Steel / Inox Code Inox/Aluminium/Cast Code Dimension Specification Specification 65x1x10 A60SBF 41 B 1376 65x1,5x10 A60SBF 41 B 878 76x1x10 A60SBF 41 B 151 76x1,6x10 A46SBF 41 B 1169 100x1x16 A60SBF 41 B 1502 A60QBF 41 B 850 100x1,6x16 A46SBF 41 B 1180 A46QBF 41 B 1246 115x1x22,2 A60SBF 41 B 757 A60QBF 41 B 1238 115x1,6x22,2 A46SBF 41 B 334 A46QBF 41 B 1497 115x1,9x22,2 A36TBF 41 B 1571 A36QBF 41 B 759 125x1x22,2 A60SBF 41 B 1288 A60QBF 41 B 1513 125x1,6x22,2 A46SBF 41 B 882 A46QBF 41 B 1498 125x1,9x22,2 A36TBF 41 B 1572 A36QBF 41 B 761 150x1,6x22,2 A46SBF 41 B 1258 A46QBF 41 B 1316 150x1,9x22,2 A36TBF 41 B 1573 A36QBF 41 B 1574 180x1,6x22,2 A46SBF 41 B 1549 A46QBF 41 B 696 180x1,9x22,2 A36TBF 41 B 1484 A60QBF 41 B 901 230x1,9x22,2 A36TBF 41 B 1599 A36QBF 41 B 963 For ceramic tiles and stone: 115x1,6x22,2 Specification C 46 TBF, Code 41B-1906
