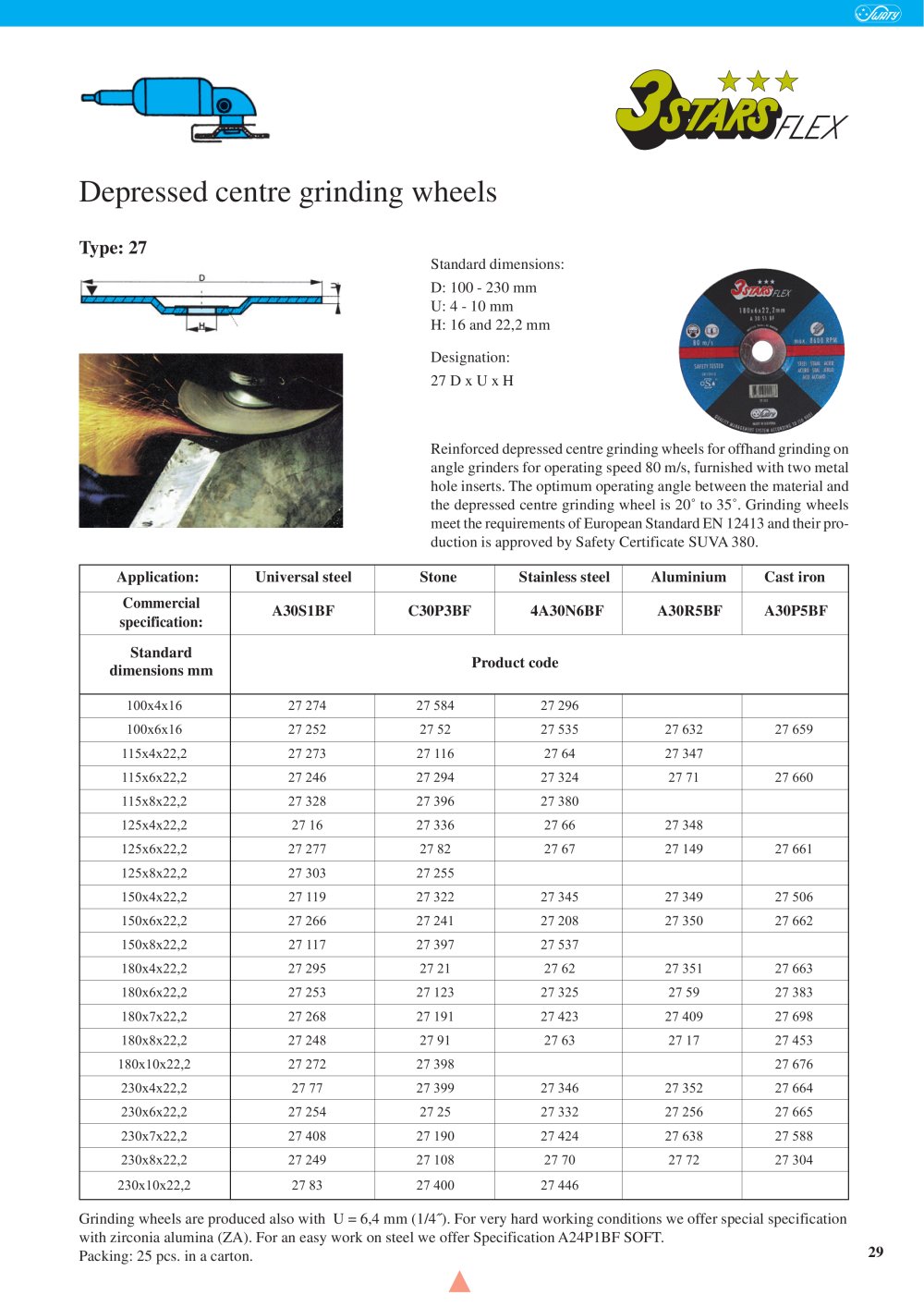

Depressed centre grinding wheels Type: 27 Standard dimensions: D: 100 - 230 mm U: 4 - 10 mm H: 16 and 22,2 mm Designation: 27 D x U x H Reinforced depressed centre grinding wheels for offhand grinding on angle grinders for operating speed 80 m/s, furnished with two metal hole inserts. The optimum operating angle between the material and the depressed centre grinding wheel is 20¢ª to 35¢ª. Grinding wheels meet the requirements of European Standard EN 12413 and their production is approved by Safety Certificate SUVA 380. Grinding wheels are produced also with U = 6,4 mm (1/4½). For very hard working conditions we offer special specification with zirconia alumina (ZA). For an easy work on steel we offer Specification A24P1BF SOFT. Packing: 25 pcs. in a carton. 29 Application: Universal steel Stone Stainless steel Aluminium Cast iron Commercial A30S1BF C30P3BF 4A30N6BF A30R5BF A30P5BF specification: Standard dimensions mm Product code 100x4x16 27 274 27 584 27 296 100x6x16 27 252 27 52 27 535 27 632 27 659 115x4x22,2 27 273 27 116 27 64 27 347 115x6x22,2 27 246 27 294 27 324 27 71 27 660 115x8x22,2 27 328 27 396 27 380 125x4x22,2 27 16 27 336 27 66 27 348 125x6x22,2 27 277 27 82 27 67 27 149 27 661 125x8x22,2 27 303 27 255 150x4x22,2 27 119 27 322 27 345 27 349 27 506 150x6x22,2 27 266 27 241 27 208 27 350 27 662 150x8x22,2 27 117 27 397 27 537 180x4x22,2 27 295 27 21 27 62 27 351 27 663 180x6x22,2 27 253 27 123 27 325 27 59 27 383 180x7x22,2 27 268 27 191 27 423 27 409 27 698 180x8x22,2 27 248 27 91 27 63 27 17 27 453 180x10x22,2 27 272 27 398 27 676 230x4x22,2 27 77 27 399 27 346 27 352 27 664 230x6x22,2 27 254 27 25 27 332 27 256 27 665 230x7x22,2 27 408 27 190 27 424 27 638 27 588 230x8x22,2 27 249 27 108 27 70 27 72 27 304 230x10x22,2 27 83 27 400 27 446
