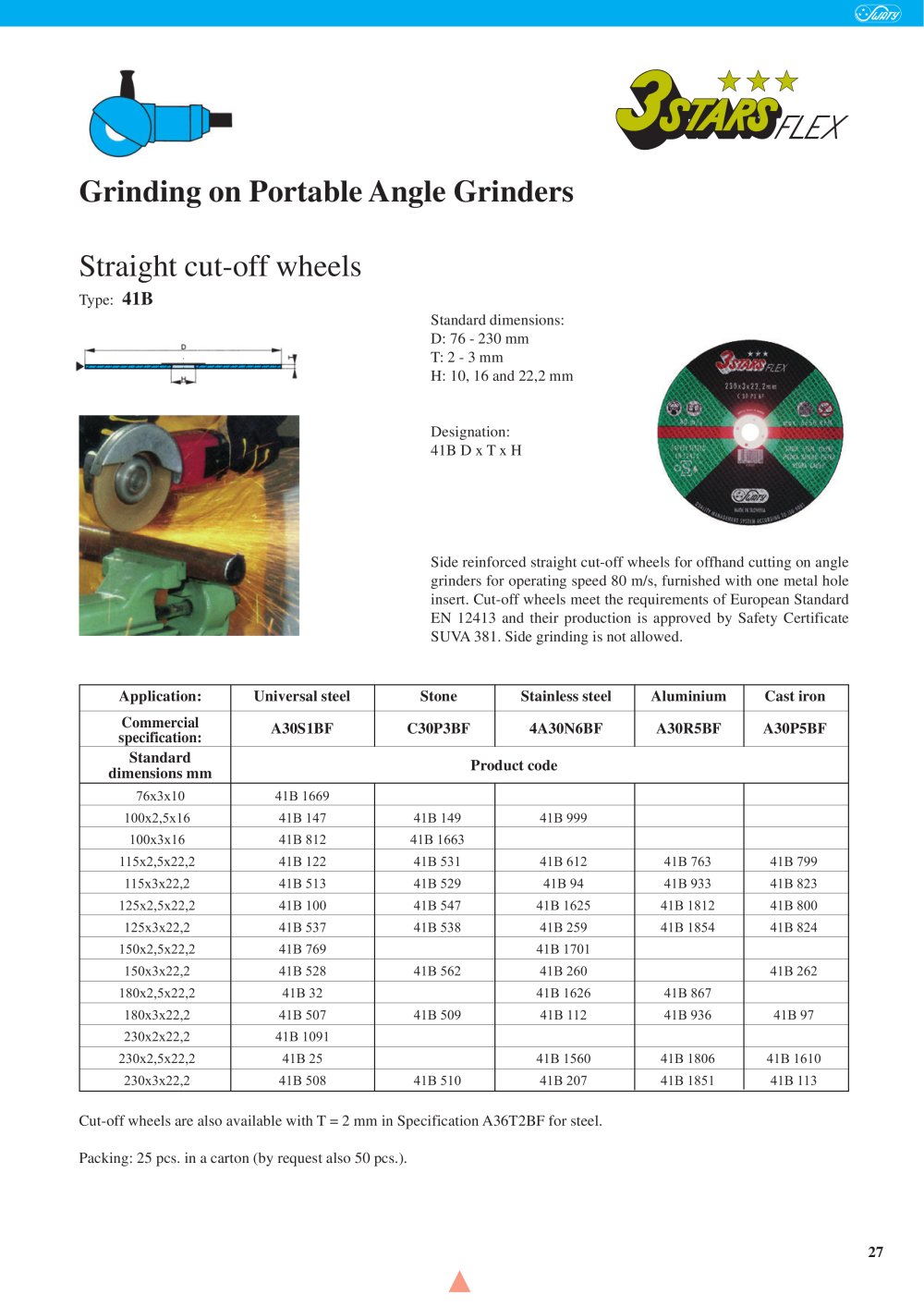

Grinding on Portable Angle Grinders Straight cut-off wheels Type: 41B Standard dimensions: D: 76 - 230 mm T: 2 - 3 mm H: 10, 16 and 22,2 mm Designation: 41B D x T x H Side reinforced straight cut-off wheels for offhand cutting on angle grinders for operating speed 80 m/s, furnished with one metal hole insert. Cut-off wheels meet the requirements of European Standard EN 12413 and their production is approved by Safety Certificate SUVA 381. Side grinding is not allowed. Cut-off wheels are also available with T = 2 mm in Specification A36T2BF for steel. Packing: 25 pcs. in a carton (by request also 50 pcs.). 27 Application: Universal steel Stone Stainless steel Aluminium Cast iron Commercial specification: A30S1BF C30P3BF 4A30N6BF A30R5BF A30P5BF Standard dimensions mm Product code 76x3x10 41B 1669 100x2,5x16 41B 147 41B 149 41B 999 100x3x16 41B 812 41B 1663 115x2,5x22,2 41B 122 41B 531 41B 612 41B 763 41B 799 115x3x22,2 41B 513 41B 529 41B 94 41B 933 41B 823 125x2,5x22,2 41B 100 41B 547 41B 1625 41B 1812 41B 800 125x3x22,2 41B 537 41B 538 41B 259 41B 1854 41B 824 150x2,5x22,2 41B 769 41B 1701 150x3x22,2 41B 528 41B 562 41B 260 41B 262 180x2,5x22,2 41B 32 41B 1626 41B 867 180x3x22,2 41B 507 41B 509 41B 112 41B 936 41B 97 230x2x22,2 41B 1091 230x2,5x22,2 41B 25 41B 1560 41B 1806 41B 1610 230x3x22,2 41B 508 41B 510 41B 207 41B 1851 41B 113
