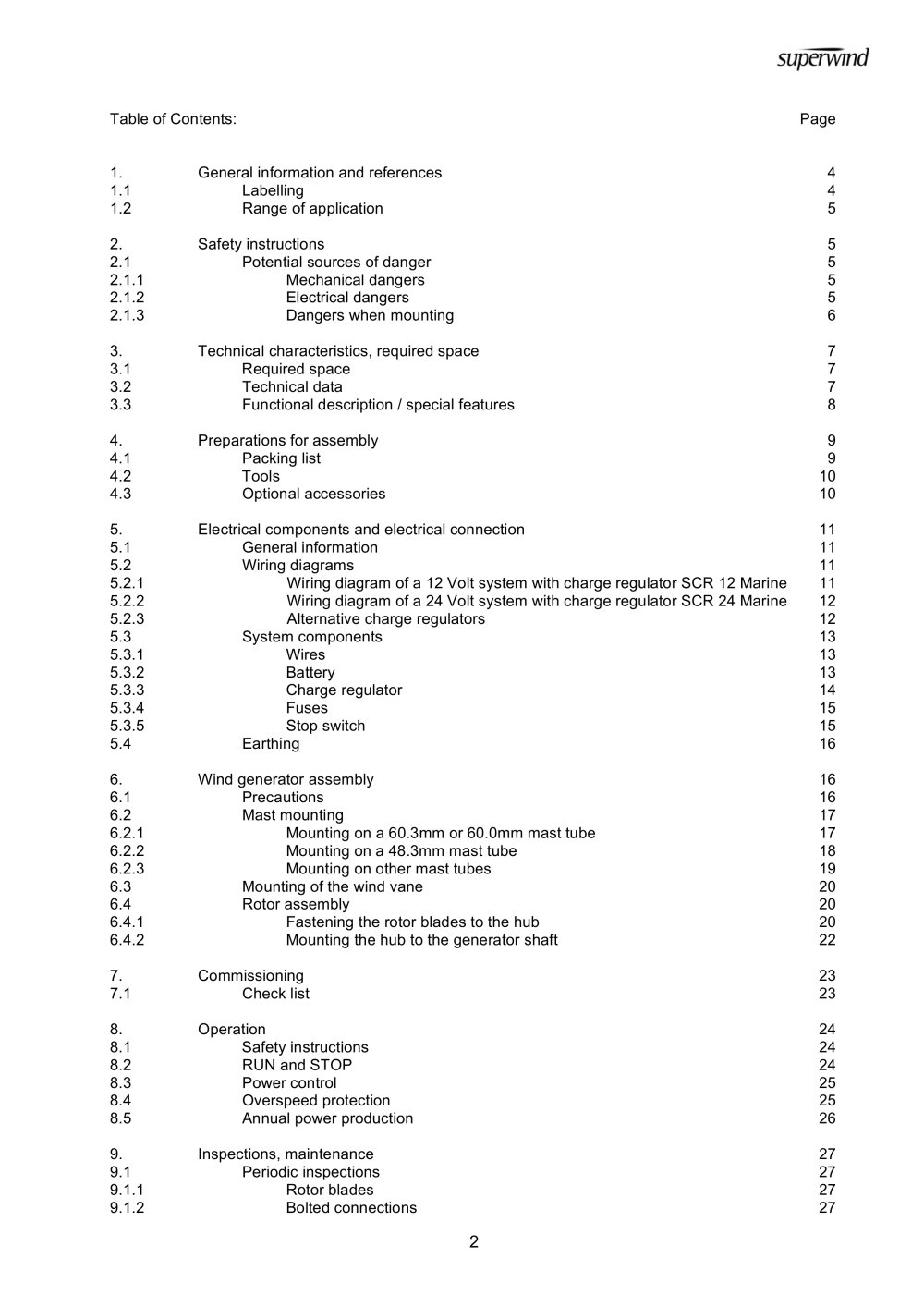

Table of Contents: Page1. General information and references 4 1.1 Labelling 41.2 Range of application 5 2. Safety instructions 52.1 Potential sources of danger 5 2.1.1 Mechanical dangers 5 2.1.2 Electrical dangers 5 2.1.3 Dangers when mounting 6 3. Technical characteristics, required space 7 3.1 Required space 7 3.2 Technical data 7 3.3 Functional description / special features 8 4. Preparations for assembly 9 4.1 Packing list 94.2 Tools 104.3 Optional accessories 10 5. Electrical components and electrical connection 11 5.1 General information 11 5.2 Wiring diagrams 11 5.2.1 Wiring diagram of a 12 Volt system with charge regulator SCR 12 Marine 11 5.2.2 Wiring diagram of a 24 Volt system with charge regulator SCR 24 Marine 12 5.2.3 Alternative charge regulators 12 5.3 System components 13 5.3.1 Wires 13 5.3.2 Battery 13 5.3.3 Charge regulator 14 5.3.4 Fuses 15 5.3.5 Stop switch 15 5.4 Earthing 166. Wind industrial generator assembly 16 6.1 Precautions 16 6.2 Mast mounting 17 6.2.1 Mounting on a 60.3mm or 60.0mm mast tube 17 6.2.2 Mounting on a 48.3mm mast tube 18 6.2.3 Mounting on other mast tubes 19 6.3 Mounting of the wind vane 20 6.4 Rotor assembly 20 6.4.1 Fastening the rotor blades to the hub 20 6.4.2 Mounting the hub to the generator shaft 22 7. Commissioning 237.1 Check list 238. Operation 248.1 Safety instructions 24 8.2 RUN and STOP 24 8.3 Power control 25 8.4 Overspeed protection 25 8.5 Annual power production 26 9. Inspections, maintenance 27 9.1 Periodic inspections 27 9.1.1 Rotor blades 27 9.1.2 Bolted connections 27 2
|
