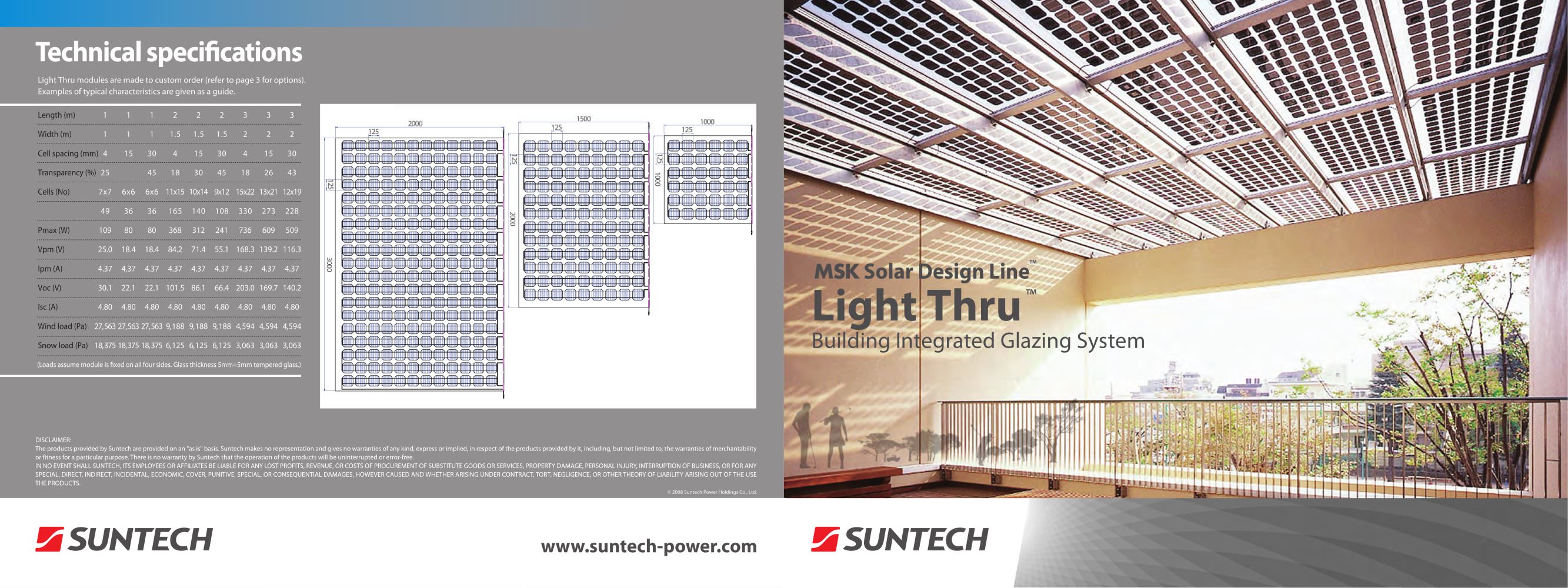

Technical speci cations
Light Thru modules are made to custom order (refer to page 3 for options).
Examples of typical characteristics are given as a guide.
Length (m)
Width (m)
Cell spacing (mm)
Transparency (%)
Cells (No)
Pmax (W)
Vpm (V)
Ipm (A)
Voc (V)
Isc (A)
Wind load (Pa)
Snow load (Pa)
1
1
4
25
7x7
49
109
25.0
4.37
30.1
4.80
27,563
18,375
1
1
15
6x6
36
80
18.4
4.37
22.1
4.80
27,563
18,375
1
1
30
45
6x6
36
80
18.4
4.37
22.1
4.80
27,563
18,375
2
1.5
4
18
11x15
165
368
84.2
4.37
101.5
4.80
9,188
6,125
2
1.5
15
30
10x14
140
312
71.4
4.37
86.1
4.80
9,188
6,125
2
1.5
30
45
9x12
108
241
55.1
4.37
66.4
4.80
9,188
6,125
3
2
4
18
15x22
330
736
168.3
4.37
203.0
4.80
4,594
3,063
3
2
15
26
13x21
273
609
139.2
4.37
169.7
4.80
4,594
3,063
3
2
30
43
12x19
228
509
116.3
4.37
140.2
4.80
4,594
3,063
www.suntech-power.com
Light Thru
™
Building Integrated Glazing System
(Loads assume module is xed on all four sides. Glass thickness 5mm+5mm tempered glass.)
2000
1500 1000
1000
2000
3000
125 125 125
125
125
125
