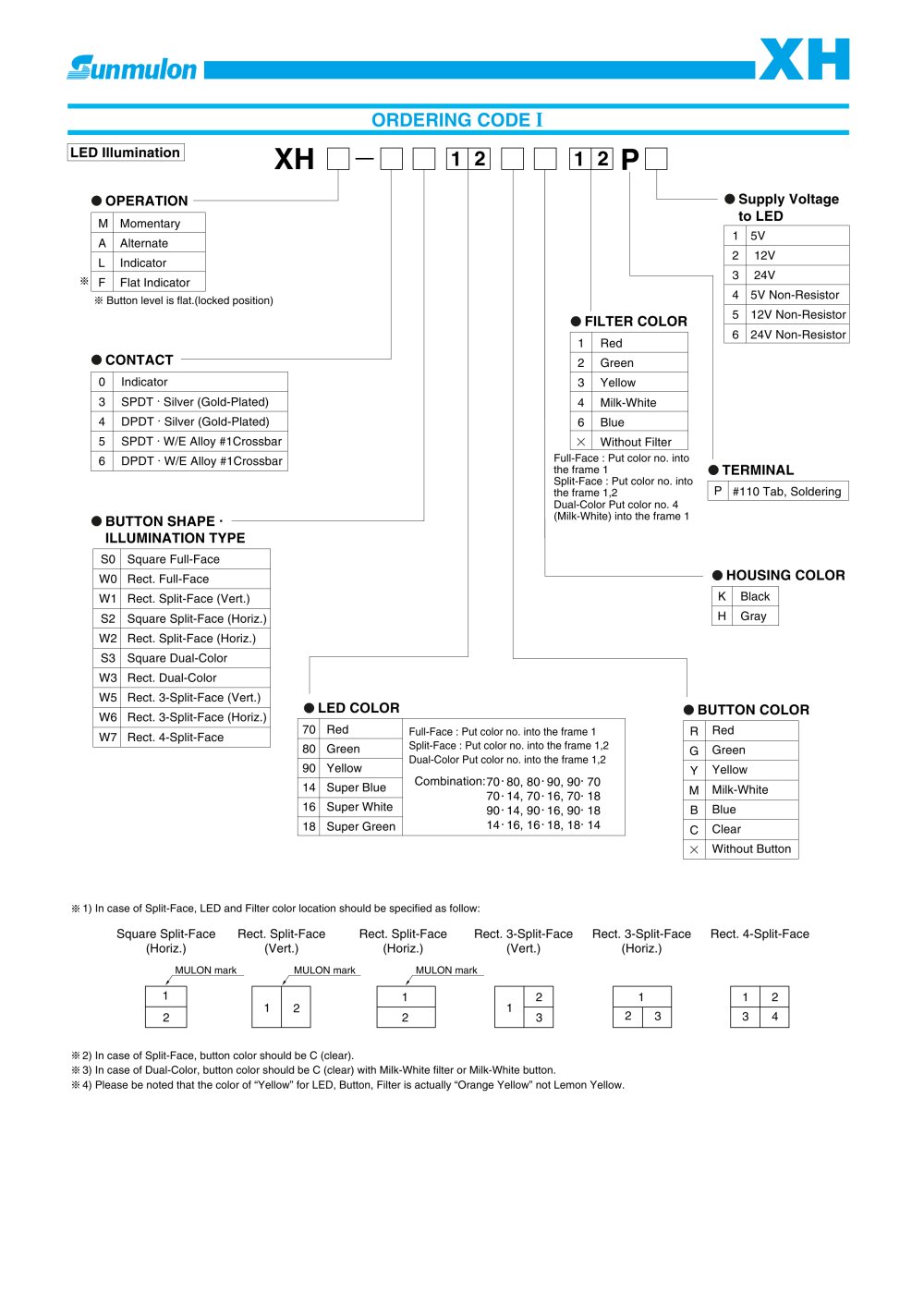

ORDERING CODE I LED Illumination XH 1 2 M A L F Momentary Alternate Indicator Flat Indicator 1 2 3 4 5 6 5V 12V 24V 5V Non-Resistor 12V Non-Resistor 24V Non-Resistor 1 2 0 3 4 5 6 Indicator SPDT . Silver (Gold-Plated) DPDT . Silver (Gold-Plated) SPDT . W/E Alloy #1Crossbar DPDT . W/E Alloy #1Crossbar S0 W0 W1 S2 W2 S3 W3 W5 W6 W7 Square Full-Face Rect. Full-Face Rect. Split-Face (Vert.) Square Split-Face (Horiz.) Rect. Split-Face (Horiz.) Square Dual-Color Rect. Dual-Color Rect. 3-Split-Face (Vert.) Rect. 3-Split-Face (Horiz.) Rect. 4-Split-Face 70 80 90 14 16 18 Red Green Yellow Super Blue Super White Super Green 1 2 3 4 6  Red Green Yellow Milk-White Blue Without Filter K H Black Gray P #110 Tab, Soldering P Full-Face : Put color no. into the frame 1 Split-Face : Put color no. into the frame 1,2 Dual-Color Put color no. 4 (Milk-White) into the frame 1 R G Y M B C  Red Green Yellow Milk-White Blue Clear Without Button 1) In case of Split-Face, LED and Filter color location should be specified as follow: 2) In case of Split-Face, button color should be C (clear). 3) In case of Dual-Color, button color should be C (clear) with Milk-White filter or Milk-White button. 4) Please be noted that the color of “Yellow” for LED, Button, Filter is actually “Orange Yellow” not Lemon Yellow. Square Split-Face (Horiz.) Rect. Split-Face (Vert.) Rect. Split-Face (Horiz.) Rect. 3-Split-Face (Vert.) Rect. 3-Split-Face (Horiz.) Rect. 4-Split-Face 2 1 1 1 2 2 3 1 2 3 3 4 1 2 2 1 MULON mark MULON mark MULON mark Full-Face : Put color no. into the frame 1 Split-Face : Put color no. into the frame 1,2 Dual-Color Put color no. into the frame 1,2 OPERATION CONTACT LED COLOR BUTTON SHAPE . ILLUMINATION TYPE FILTER COLOR Supply Voltage to LED TERMINAL HOUSING COLOR BUTTON COLOR Button level is flat.(locked position) 70 80, 80 90, 90 70 70 14, 70 16, 70 18 90 14, 90 16, 90 18 14 16, 16 18, 18 14 Combination: XH
