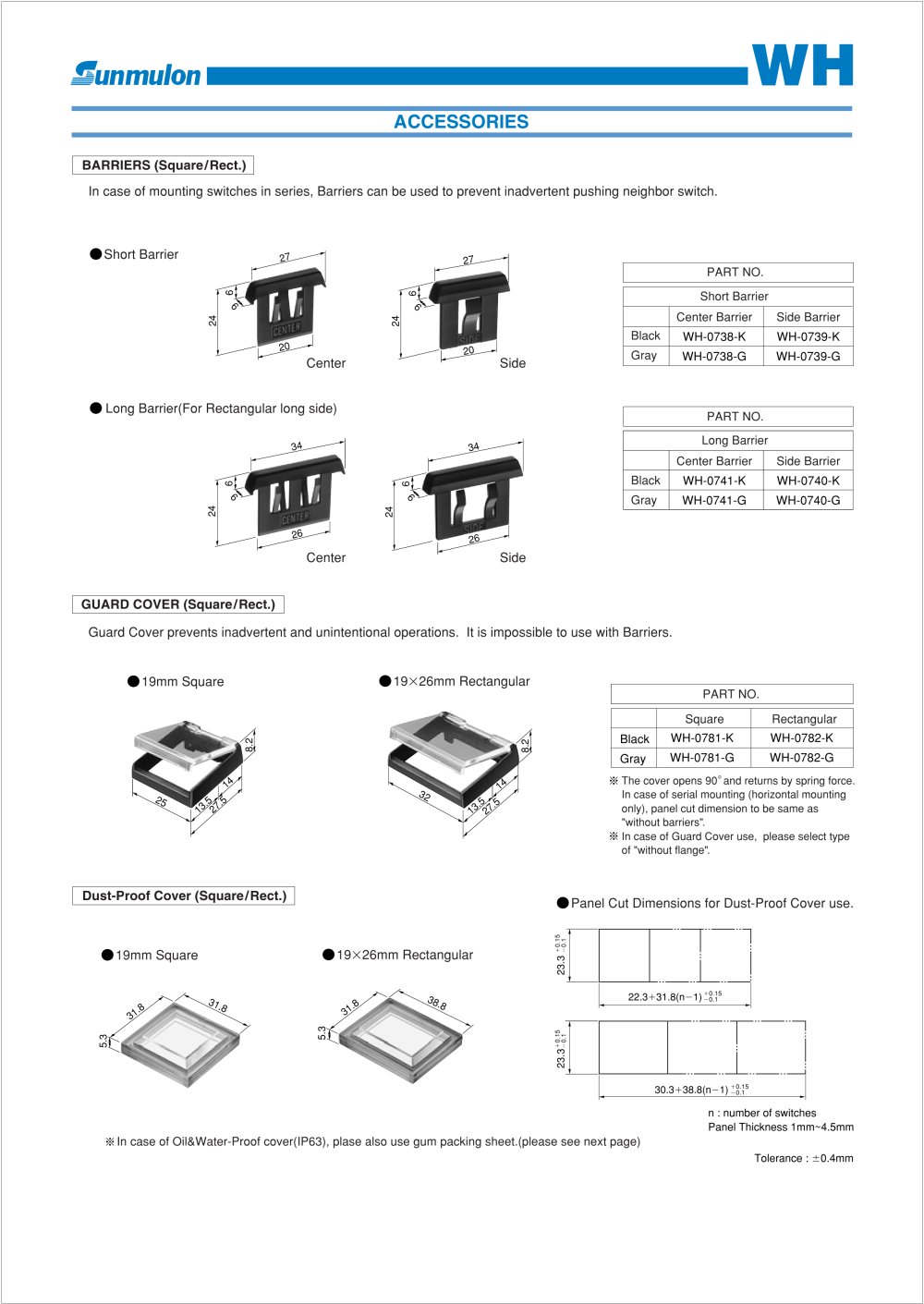

ACCESSORIES
WH
In case of Oil&Water-Proof cover(IP63), plase also use gum packing sheet.(please see next page)
5.3
31.8
31.8
5.3
31.8
38.8
BARRIERS (Square/Rect.)
In case of mounting switches in series, Barriers can be used to prevent inadvertent pushing neighbor switch.
Guard Cover prevents inadvertent and unintentional operations. It is impossible to use with Barriers.
GUARD COVER (Square/Rect.)
Dust-Proof Cover (Square/Rect.)
Center Side
Center Side
Black
Gray
Black
Gray
Center Barrier
WH-0738-K
WH-0738-G
Side Barrier
WH-0739-K
WH-0739-G
PART NO.
PART NO.
PART NO.
Center Barrier
WH-0741-K
WH-0741-G
Side Barrier
WH-0740-K
WH-0740-G
Black
Gray
WH-0781-K
WH-0781-G
WH-0782-K
WH-0782-G
Square Rectangular
24
6
26
34
8.2
27.5
13.5 14
25
9
24
6
26
34
9
24
6
20
27
9
24
6
20
27
9
8.2
27.5
13.5 14
32
23.3 23.3
The cover opens 90 and returns by spring force.
In case of serial mounting (horizontal mounting
only), panel cut dimension to be same as
"without barriers".
In case of Guard Cover use, please select type
of "without flange".
n : number of switches
Panel Thickness 1mm~4.5mm
Short Barrier
19mm Square 1926mm Rectangular
19mm Square
Panel Cut Dimensions for Dust-Proof Cover use.
1926mm Rectangular
Long Barrier(For Rectangular long side)
Short Barrier
Long Barrier
30.338.8(n1)
22.331.8(n1)
0.15
0.1
0.15
0.1
0.15
0.1
0.15
0.1
Tolerance : 0.4mm
