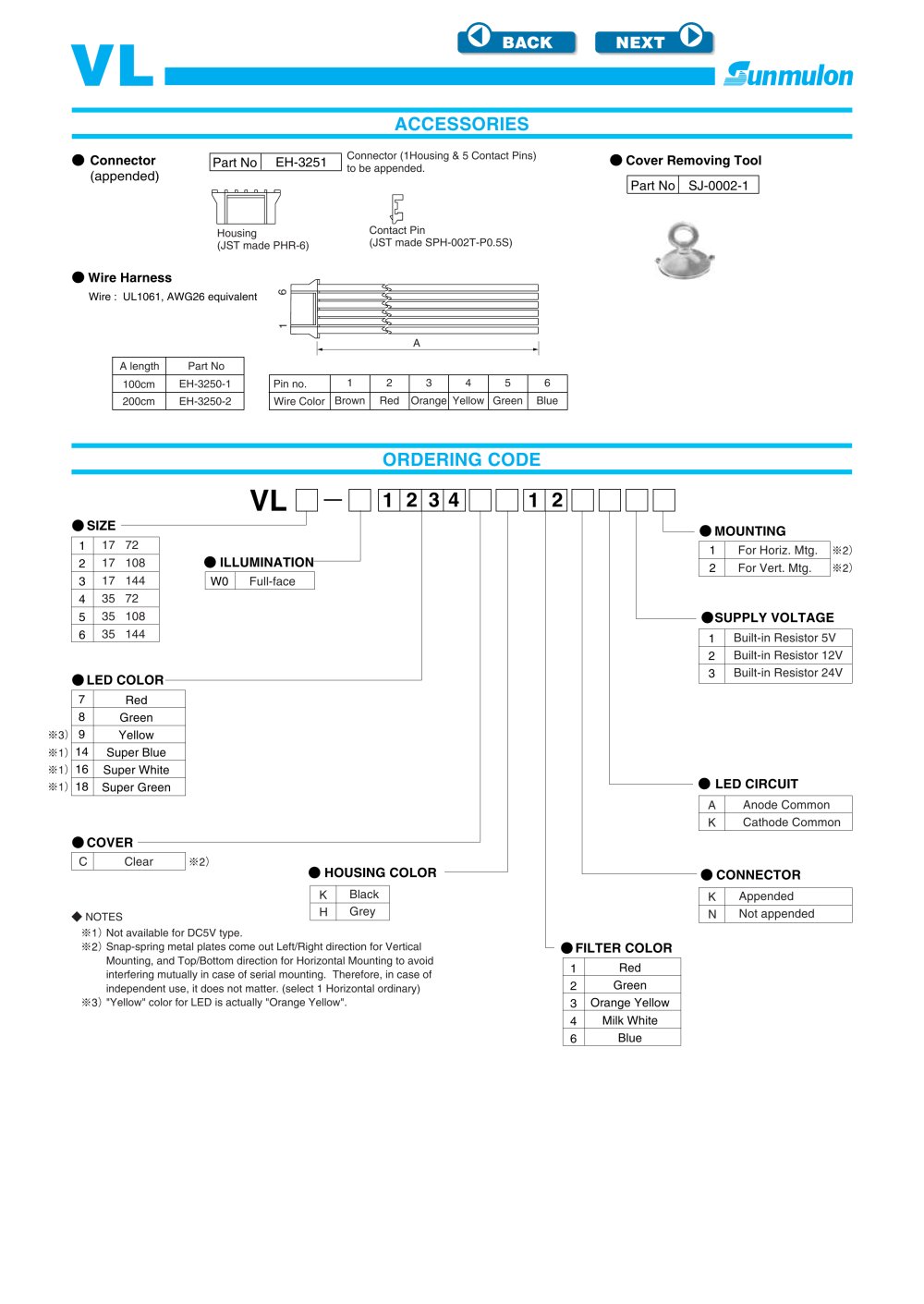

VL
ACCESSORIES
1 6
A
A length
100cm
200cm
Part No
EH-3250-1 Pin no.
EH-3250-2 Wire Color Brown Red Orange Yellow Green Blue
1 2 3 4 5 6
ORDERING CODE
VL 1 2 3 4 1 2
1
2
3
4
5
6
17 72
17 108
17 144
35 72
35 108
35 144
SIZE
W0 Full-face
ILLUMINATION
1
2
For Horiz. Mtg.
For Vert. Mtg.
1
2
3
Black
Grey
K
H
K
N
A
K
C Clear
HOUSING COLOR
COVER
MOUNTING
SUPPLY VOLTAGE
LED CIRCUIT
CONNECTOR
Appended
Not appended
Anode Common
Cathode Common
Built-in Resistor 5V
Built-in Resistor 12V
Built-in Resistor 24V
FILTER COLOR
1
2
3
4
6
Red
Green
Orange Yellow
Milk White
Blue
LED COLOR
7
8
9
14
16
18
Red
Green
Yellow
Super Blue
Super White
Super Green
NOTES
Not available for DC5V type.
Snap-spring metal plates come out Left/Right direction for Vertical
Mounting, and Top/Bottom direction for Horizontal Mounting to avoid
interfering mutually in case of serial mounting. Therefore, in case of
independent use, it does not matter. (select 1 Horizontal ordinary)
"Yellow" color for LED is actually "Orange Yellow".
Wire Harness
SJ-0002-1
Cover Removing Tool
Part No
Wire : UL1061, AWG26 equivalent
Connector (1Housing & 5 Contact Pins)
to be appended.
Contact Pin
(JST made SPH-002T-P0.5S)
Connector
(appended)
Part No EH-3251
Housing
(JST made PHR-6)
