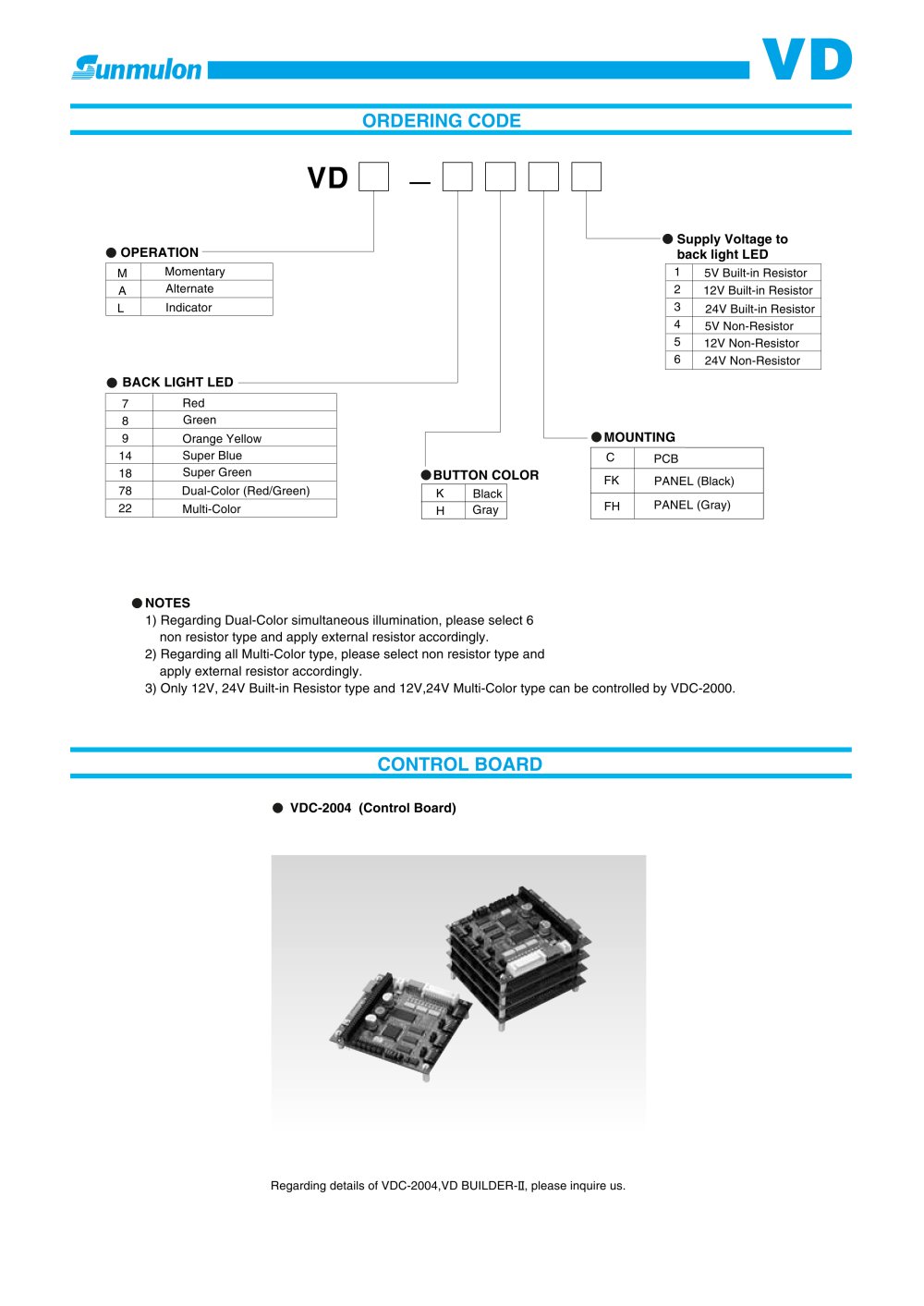

VD VD M A L 1 2 3 4 5 6 7 8 9 14 18 78 22 K H FK FH C CONTROL BOARD NOTES 1) Regarding Dual-Color simultaneous illumination, please select 6 non resistor type and apply external resistor accordingly. 2) Regarding all Multi-Color type, please select non resistor type and apply external resistor accordingly. 3) Only 12V, 24V Built-in Resistor type and 12V,24V Multi-Color type can be controlled by VDC-2000. 24V Non-Resistor 12V Non-Resistor 5V Non-Resistor 24V Built-in Resistor 12V Built-in Resistor 5V Built-in Resistor Supply Voltage to back light LED PANEL (Gray) PANEL (Black) PCB MOUNTING BUTTON COLOR Multi-Color Dual-Color (Red/Green) Super Green Super Blue Orange Yellow Green Red BACK LIGHT LED Indicator Alternate Momentary OPERATION ORDERING CODE VDC-2004 (Control Board) Black Gray Regarding details of VDC-2004,VD BUILDER-II, please inquire us.
