BACK NEXT
0
-0.5
Stud(Inner Screw M3X0.5)
13.75 0.2 75.4 0.2
26.8+0.5
0
104 +0.5
0
15.5
For the purpose of protecting LCD panel,it is
recommended to provide protecting panel such
as clear acryl plate. It is needed to give a
adequate space between panel surfasce and
plate to avoid supress LCD.
This panel mounting method is just for your
reference.You can adjust mounting method
according to your situation.
Tolerance : 0.4mm
Panel Cut Dimensions for reference
SD
TERMINAL LAYOUT/ TERMINAL FUNCTION TABLE
ORDERING CODE
CONNECTER:
OMRON XG4C-1431
SD 1
Backlight LED
718
1819
20
Dual Color (Red/Green)
Dual Color (Orange/Green)
Multi Color (Red/Green/Blue)
Power Supply Voltage
1 5V
LED Driver
A
B
Without Driver
With Driver

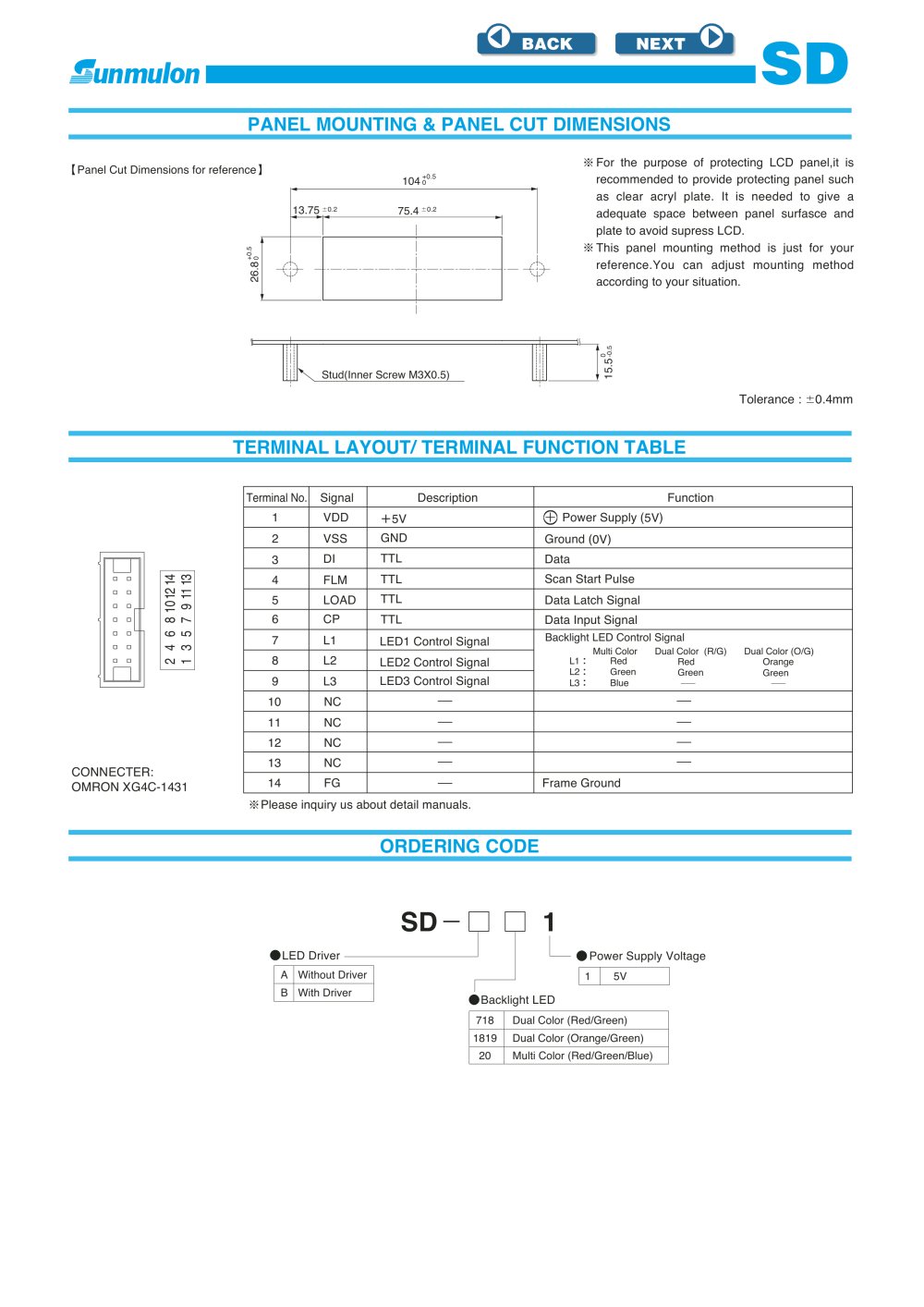

PANEL MOUNTING & PANEL CUT DIMENSIONS
Terminal No. Signal Description Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TTL
GND
+5V
TTL
TTL
TTL
VDD
VSS
DI
FLM
LOAD
CP
L1
L2
L3
NC
NC
NC
NC
FG
Power Supply (5V)
Ground (0V)
Scan Start Pulse
Data Latch Signal
Data Input Signal
Data
Frame Ground
Backlight LED Control Signal
Multi Color Dual Color (R/G) Dual Color (O/G)
L1
L2
L3
Red
Green
Blue
Red
Green
Orange
Green
LED1 Control Signal
LED2 Control Signal
LED3 Control Signal
21
43
65
87
10
9
12
11 13
14
Please inquiry us about detail manuals.
