CA

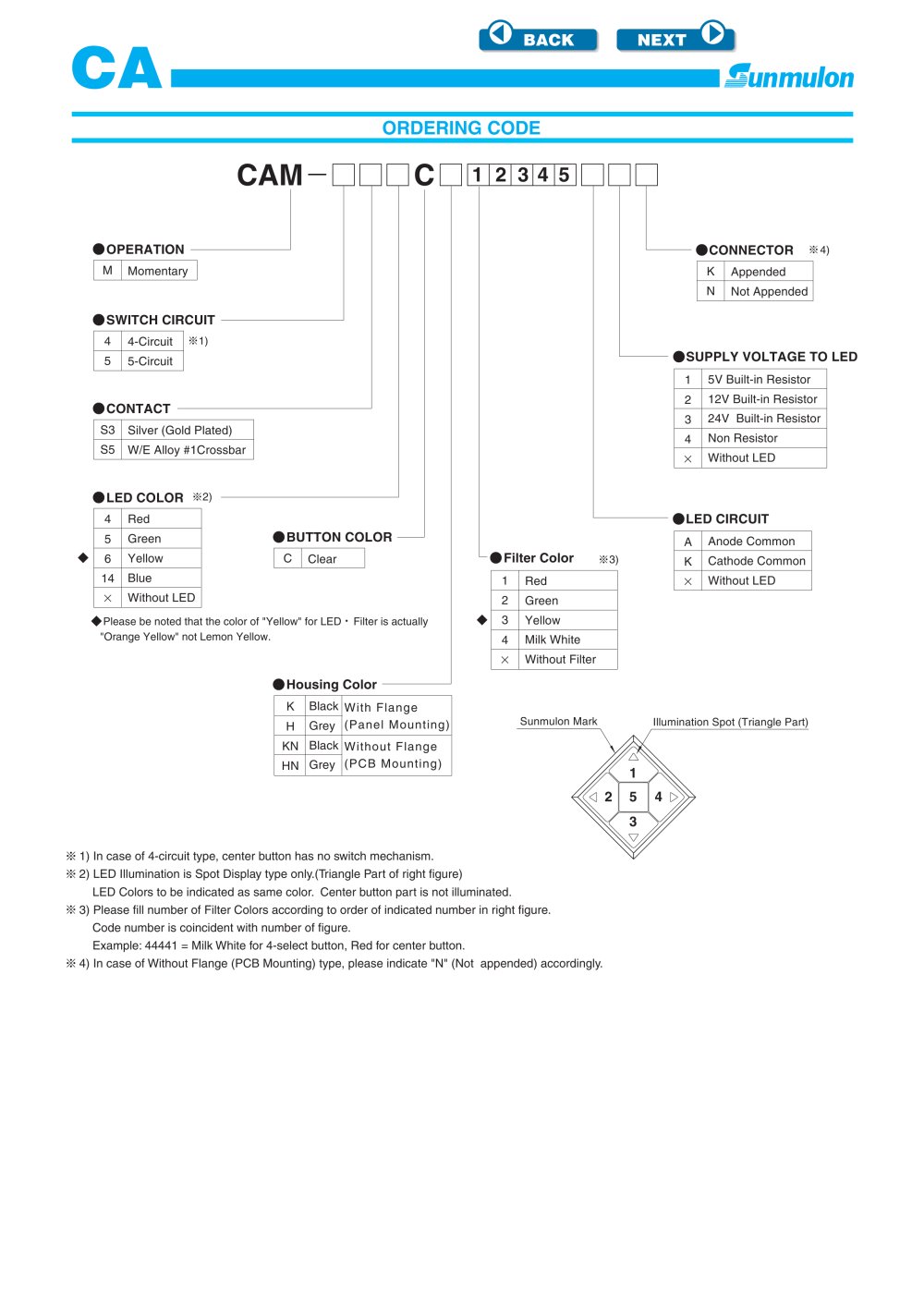

ORDERING CODE
CAM C 1
1
3
2 5 4
2 3 4 5
OPERATION
M Momentary
BUTTON COLOR
C Clear
SWITCH CIRCUIT
4
5
4-Circuit
5-Circuit
CONTACT
S3
S5
Silver (Gold Plated)
W/E Alloy #1Crossbar
LED CIRCUIT
With Flange
(Panel Mounting)
Without Flange
(PCB Mounting)
LED COLOR
1)
3)
2)
CONNECTOR 4)
K
N
Appended
Not Appended
4
5
6
14
Red
Green
Yellow
Blue
Without LED
SUPPLY VOLTAGE TO LED
1
2
3
4
5V Built-in Resistor
12V Built-in Resistor
24V Built-in Resistor
Non Resistor
Without LED
A
K
Anode Common
Cathode Common
Without LED
Filter Color
1
2
3
4
Red
Green
Yellow
Milk White
Without Filter
Housing Color
K
H
KN
HN
Black
Grey
Black
Grey
Please be noted that the color of "Yellow" for LED Filter is actually
"Orange Yellow" not Lemon Yellow.
1) In case of 4-circuit type, center button has no switch mechanism.
2) LED Illumination is Spot Display type only.(Triangle Part of right figure)
LED Colors to be indicated as same color. Center button part is not illuminated.
3) Please fill number of Filter Colors according to order of indicated number in right figure.
Code number is coincident with number of figure.
Example: 44441 = Milk White for 4-select button, Red for center button.
4) In case of Without Flange (PCB Mounting) type, please indicate "N" (Not appended) accordingly.
Sunmulon Mark Illumination Spot (Triangle Part)
