variable flow hydraulic pump - Sunfab Hydraulics - #2

Text version of the page

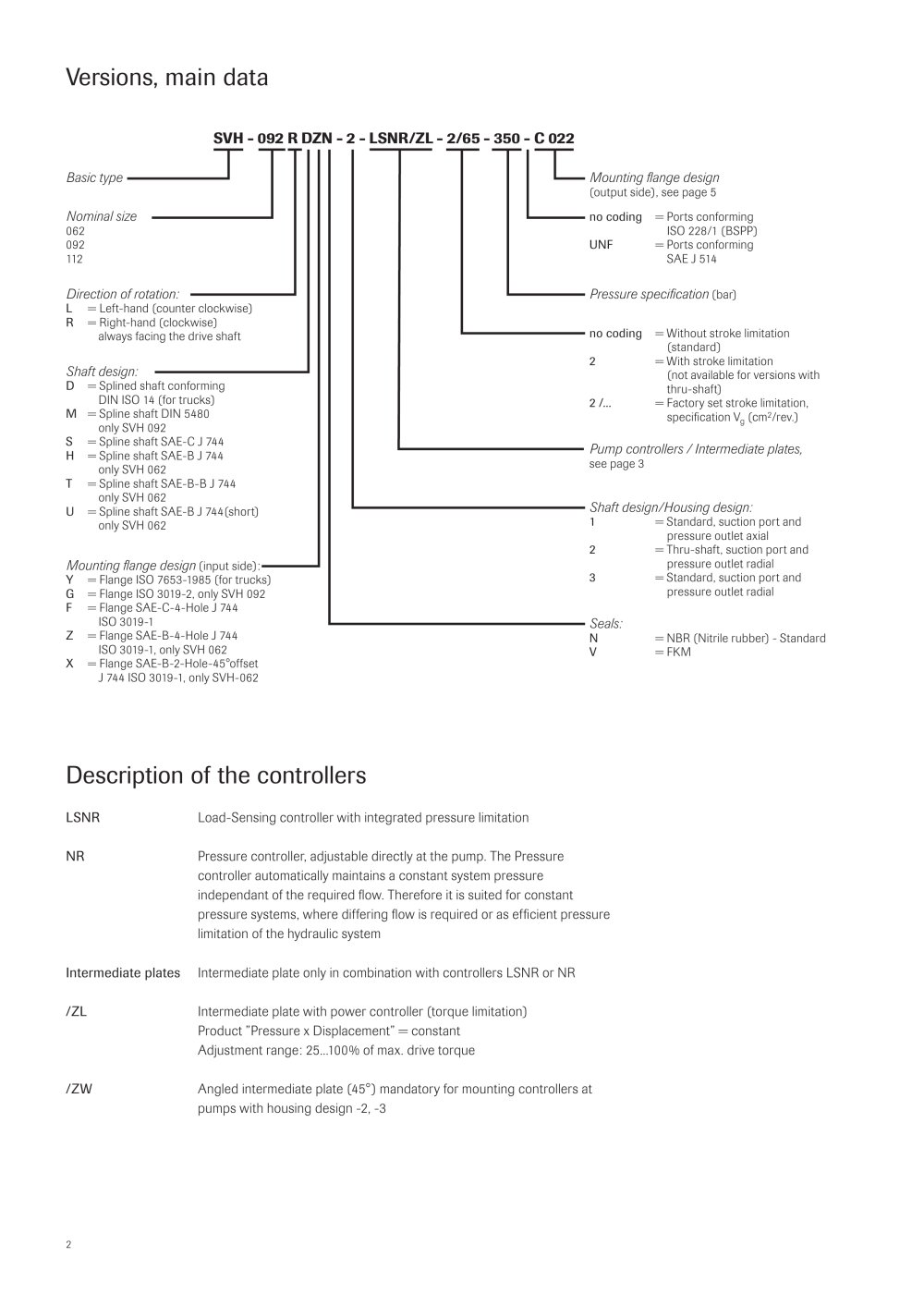

Versions, main data SVH - 092 R DZN - 2 - LSNR/ZL - 2/65 - 350 - C 022 Basic type Mounting flange design Nominal size 062 092 112 no coding UNF Direction of rotation: Pressure specification (bar) Shaft design: no coding 2 2 /... (output side), see page 5 L = Left-hand (counter clockwise) R = Right-hand (clockwise) always facing the drive shaft D M S H T U = Splined shaft conforming DIN ISO 14 (for trucks) = Spline shaft DIN 5480 only SVH 092 = Spline shaft SAE-C J 744 = Spline shaft SAE-B J 744 only SVH 062 = Spline shaft SAE-B-B J 744 only SVH 062 = Spline shaft SAE-B J 744(short) only SVH 062 Mounting flange design (input side): Y G F Z X = Flange ISO 7653-1985 (for trucks) = Flange ISO 3019-2, only SVH 092 = Flange SAE-C-4-Hole J 744 ISO 3019-1 = Flange SAE-B-4-Hole J 744 ISO 3019-1, only SVH 062 = Flange SAE-B-2-Hole-45°offset J 744 ISO 3019-1, only SVH-062 = Without stroke limitation (standard) = With stroke limitation (not available for versions with thru-shaft) = Factory set stroke limitation, specification Vg (cm2 /rev.) Pump controllers / Intermediate plates, see page 3 Shaft design/Housing design: 1 2 3 Seals: N V Description of the controllers LSNR Load-Sensing controller with integrated pressure limitation NR Pressure controller, adjustable directly at the pump. The Pressure controller automatically maintains a constant system pressure independant of the required flow. Therefore it is suited for constant pressure systems, where differing flow is required or as efficient pressure limitation of the hydraulic system Intermediate plates Intermediate plate only in combination with controllers LSNR or NR /ZL Intermediate plate with power controller (torque limitation) Product ”Pressure x Displacement” = constant Adjustment range: 25...100% of max. drive torque /ZW Angled intermediate plate (45°) mandatory for mounting controllers at pumps with housing design -2, -3 2 = Ports conforming ISO 228/1 (BSPP) = Ports conforming SAE J 514 = Standard, suction port and pressure outlet axial = Thru-shaft, suction port and pressure outlet radial = Standard, suction port and pressure outlet radial = NBR (Nitrile rubber) - Standard = FKM
