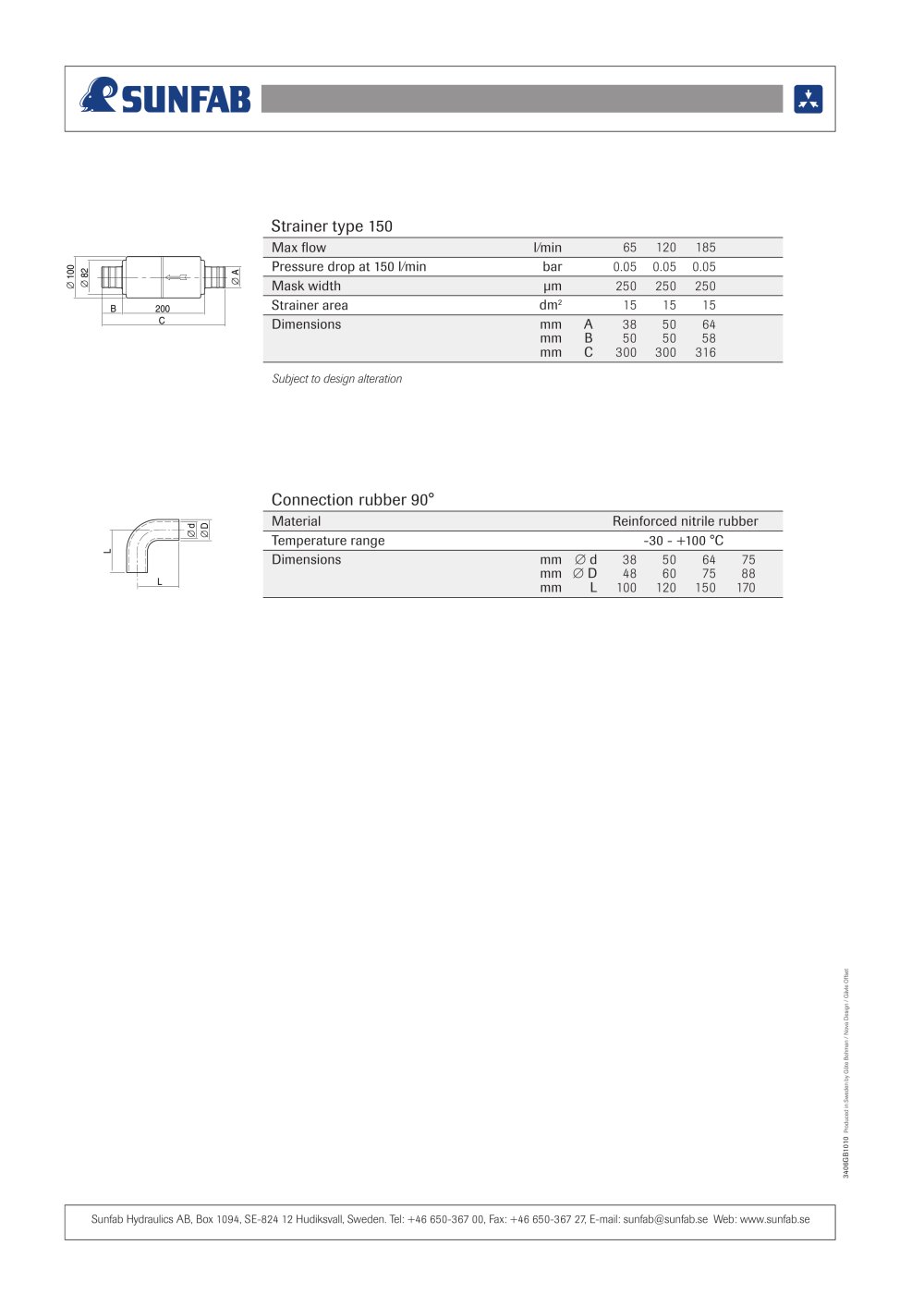

∅A ∅ 100 ∅ 82 Strainer type 150 B 200 C Max flow Pressure drop at 150 lâ�„min Mask width Strainer area Dimensions lâ�„min bar µm dm2 mm A mm B mm C 65 120 185 0.05 0.05 0.05 250 250 250 15 15 15 38 50 64 50 50 58 300 300 316 Subject to design alteration L ∅d ∅D Connection rubber 90° Reinforced nitrile rubber -30 - +100 °C mm ∅ d 38 50 64 75 mm ∅ D 48 60 75 88 mm L 100 120 150 170 3406GB1010 Produced in Sweden by Göte Bohman / Nova Design / Gävle Offset L Material Temperature range Dimensions Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.se
