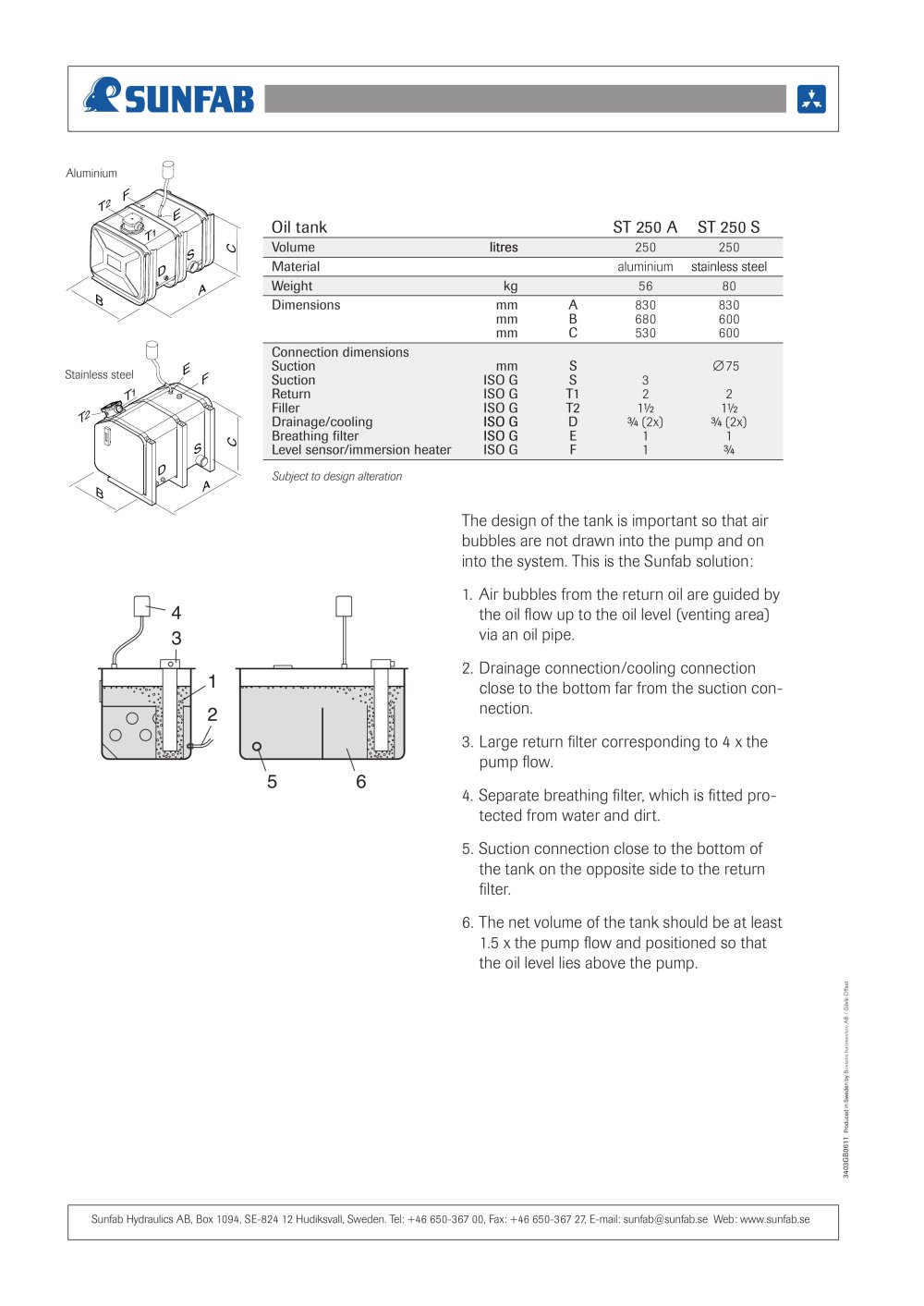

Aluminium Oil tank Stainless steel ST 250 A ST 250 S Volume������� ������ litres 250 250 Material aluminium ��������������� stainless steel Weight kg 56 80 Dimensions��������������������������������� mm A 830 830 mm B 680 600 mm C 530 600 Connection dimensions Suction mm S ∅75 Suction ISO G S 3 Return ISO G� T1 2 2 Filler ISO G T2 ��� 1½ 1½ �� Drainage/cooling������ ����� ISO G D � (2x) � (2x) ¾ ¾ Breathing filter ����� ISO G E � � 1 1 Level sensor/immersion heater ISO G F � � 1 ¾ Subject to design alteration The design of the tank is important so that air bubbles are not drawn into the pump and on into the system. This is the Sunfab solution: 1. Air bubbles from the return oil are guided by the oil flow up to the oil level (venting area) via an oil pipe. 2. Drainage connection/cooling connection close to the bottom far from the suction connection. 3. Large return filter corresponding to 4 x the pump flow. 4. Separate breathing filter, which is fitted protected from water and dirt. 5. Suction connection close to the bottom of the tank on the opposite side to the return filter. 3403GB0611 Produced in Sweden by� ���������������������� Bohman Information AB / Gävle Offset 6. The net volume of the tank should be at least 1.5 x the pump flow and positioned so that the oil level lies above the pump. Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.se
