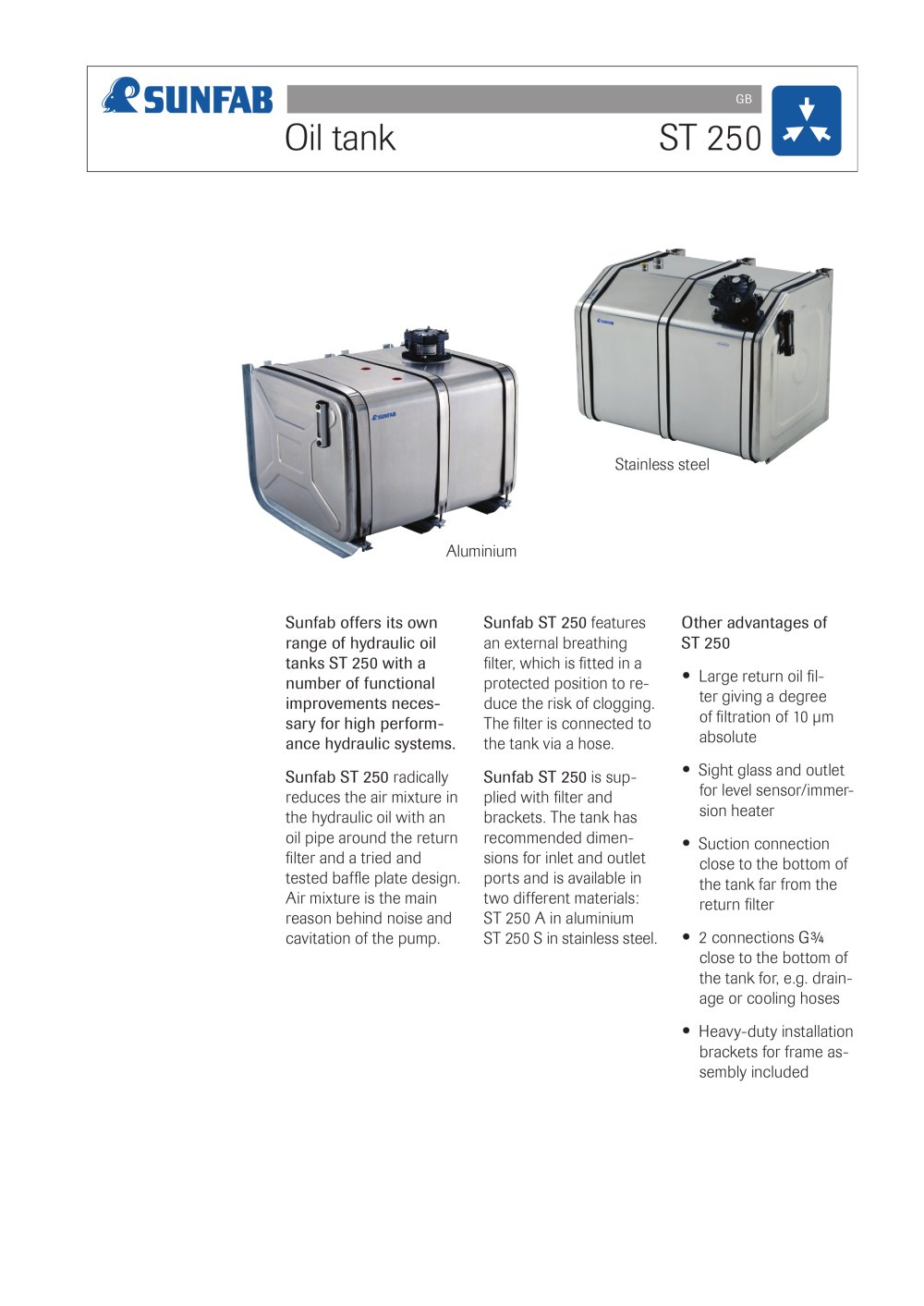

oil reservoir - Sunfab Hydraulics - #1

GB

Oil tank

ST 250

Stainless steel

Sunfab offers its own range of hydraulic oil tanks ST 250 with a number of functional improvements neces­sary for high perform­ance hydraulic systems.

Sunfab ST 250 radically reduces the air mixture in the hydraulic oil with an oil pipe around the return filter and a tried and tested baffle plate design. Air mixture is the main reason behind noise and cavitation of the pump.

Sunfab ST 250 features

an external breathing filter, which is fitted in a protected position to re­duce the risk of clogging. The filter is connected to the tank via a hose.

Sunfab ST 250 is sup­plied with filter and brackets. The tank has recommended dimen­sions for inlet and outlet ports and is available in two different materials: ST 250 A in aluminium ST 250 S in stainless steel.

Other advantages of

ST 250

• Large return oil fil­ter giving a degree of filtration of 10 urn absolute

• Sight glass and outlet for level sensor/immer­sion heater

• Suction connection close to the bottom of the tank far from the return filter

^ 2 connections G% close to the bottom of the tank for, e.g. drain­age or cooling hoses

• Heavy-duty installation brackets for frame as­sembly included
