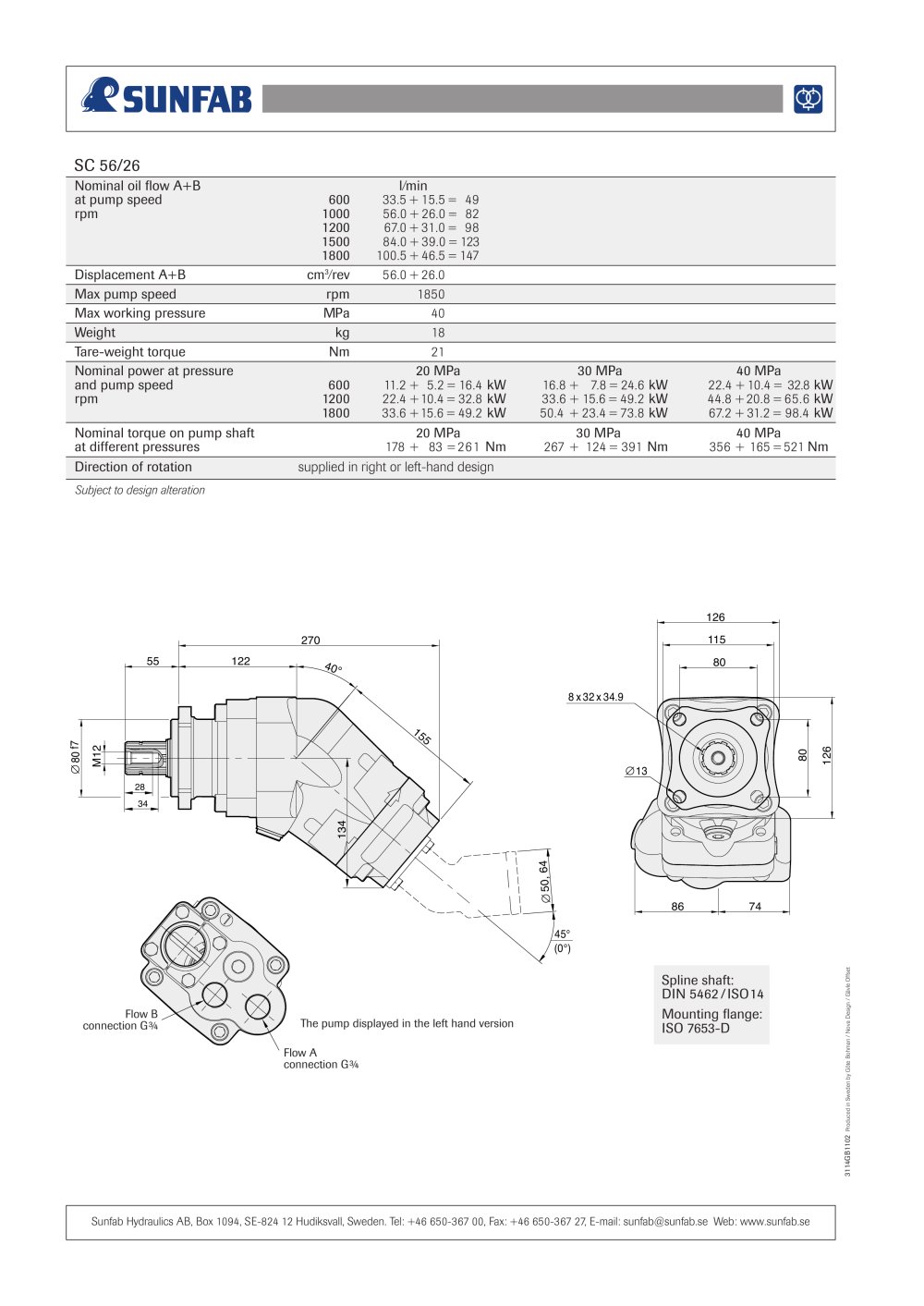

SC 56/26 Nominal oil flow A+B lâ�„min at pump speed 600 33.5 + 15.5 = 49 rpm 1000 56.0 + 26.0 = 82 1200 67.0 + 31.0 = 98 1500 84.0 + 39.0 = 123 1800 100.5 + 46.5 = 147 3 Displacement A+B cm â�„rev 56.0 + 26.0 Max pump speed rpm 1850 Max working pressure 40 MPa Weight kg 18 Tare-weight torque 21 Nm Nominal power at pressure 20 MPa 30 MPa and pump speed 16.8 + 7.8 = 24.6 kW 600 11.2 + 5.2 = 16.4 kW rpm 1200 22.4 + 10.4 = 32.8 kW 33.6 + 15.6 = 49.2 kW 1800 33.6 + 15.6 = 49.2 kW 50.4 + 23.4 = 73.8 kW Nominal torque on pump shaft 20 MPa 30 MPa 267 + 124 = 391 Nm at different pressures 178 + 83 = 261 Nm Direction of rotation supplied in right or left-hand design 40 MPa 22.4 + 10.4 = 32.8 kW 44.8 + 20.8 = 65.6 kW 67.2 + 31.2 = 98.4 kW 40 MPa 356 + 165 = 521 Nm Subject to design alteration 126 115 270 55 122 80 40° 80 5 ∅ 13 28 126 15 M12 ∅ 80 f7 8 x 32 x 34.9 ∅ 50, 64 134 34 86 74 Flow B connection G¾ The pump displayed in the left hand version Spline shaft: DIN 5462 / ISO 14 Mounting flange: ISO 7653-D 3114GB1102 Flow A connection G¾ Produced in Sweden by Göte Bohman / Nova Design / Gävle Offset 45° (0°) Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.se
