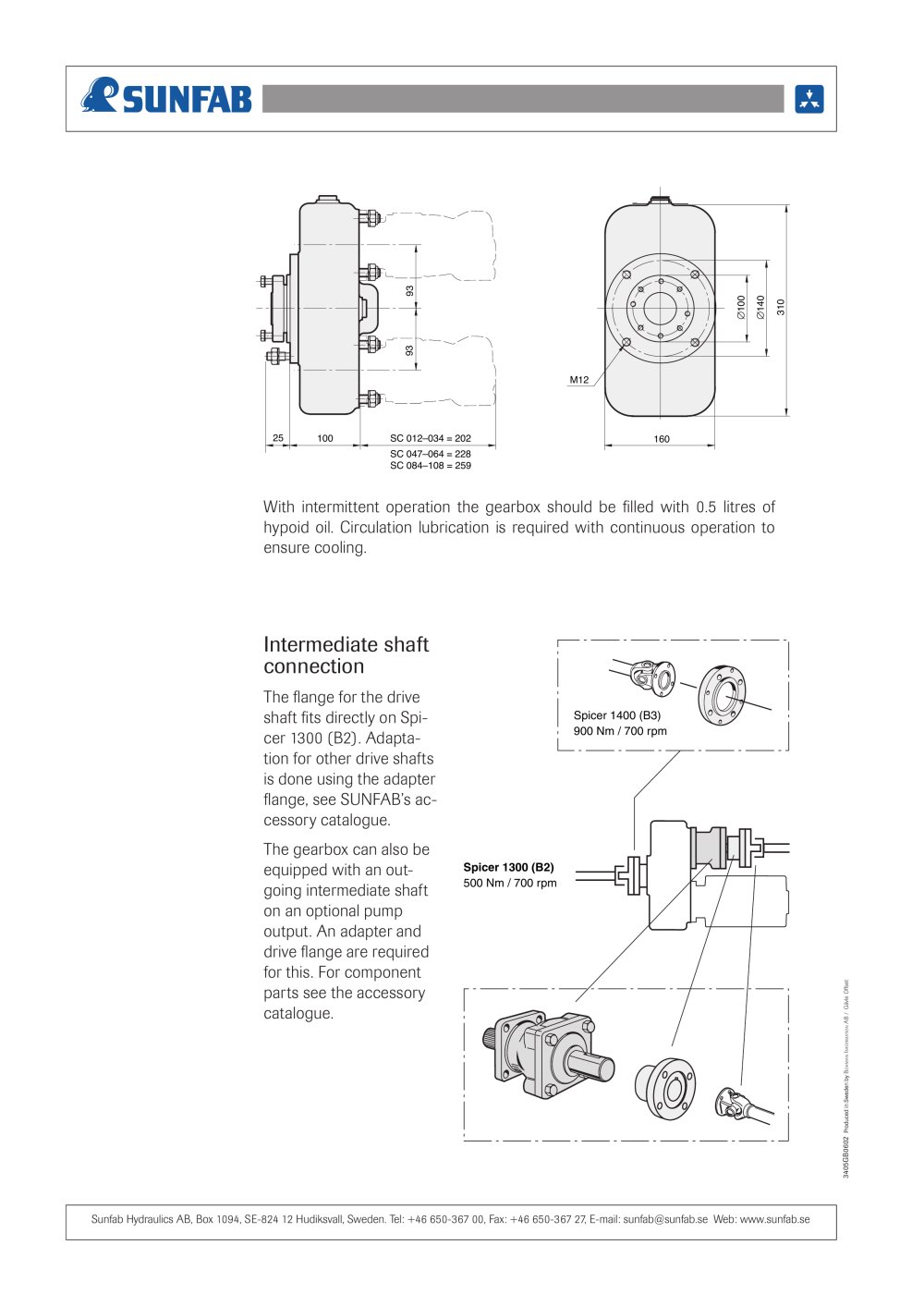

140 310 100 93 93 M12 25 100 SC 012–034 = 202 SC 047–064 = 228 SC 084–108 = 259 160 With intermittent operation the gearbox should be filled with 0.5 litres of hypoid oil. Circulation lubrication is required with continuous operation to ensure cooling. Intermediate shaft connection 3405GB0602 The gearbox can also be equipped with an outgoing intermediate shaft on an optional pump output. An adapter and drive flange are required for this. For component parts see the accessory catalogue. Produced in Sweden by� ���������������������� Bohman Information AB / Gävle Offset The flange for the drive shaft fits directly on Spicer 1300 (B2). Adaptation for other drive shafts is done using the adapter flange, see SUNFAB’s accessory catalogue. Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.se
