a2 b2 c2 e2 f2 g k l2 s2 z2 á2 d2 L2 u2 t2 v2 s21 m2 d1 L1 u1 t1 v1 s11 m1 kg
6065 120 80 8 100 3 110 150 39 9 6 30° 14 30 5 16 25 M5 12 12 25 4 14 18 M4 8 3,5
6075 160 110 9 130 3 110 161 52 11 4 45° 20 40 6 22,5 32 M6 15 12 25 4 14 18 M4 8 4,5
6095 160 110 9 130 3 150 217 63 11 4 45° 25 50 8 28 40 M10 22 14 25 5 16 16 M5 10 9
6105 160 110 9 130 3 150 233 73 11 4 45° 30 60 8 33 50 M10 22 14 25 5 16 16 M5 10 11
6125 200 130 13 165 4 204 274 84 11 6 30° 35 70 10 38 56 M12 28 19 35 6 22 25 M6 12 23
SERVO 6000

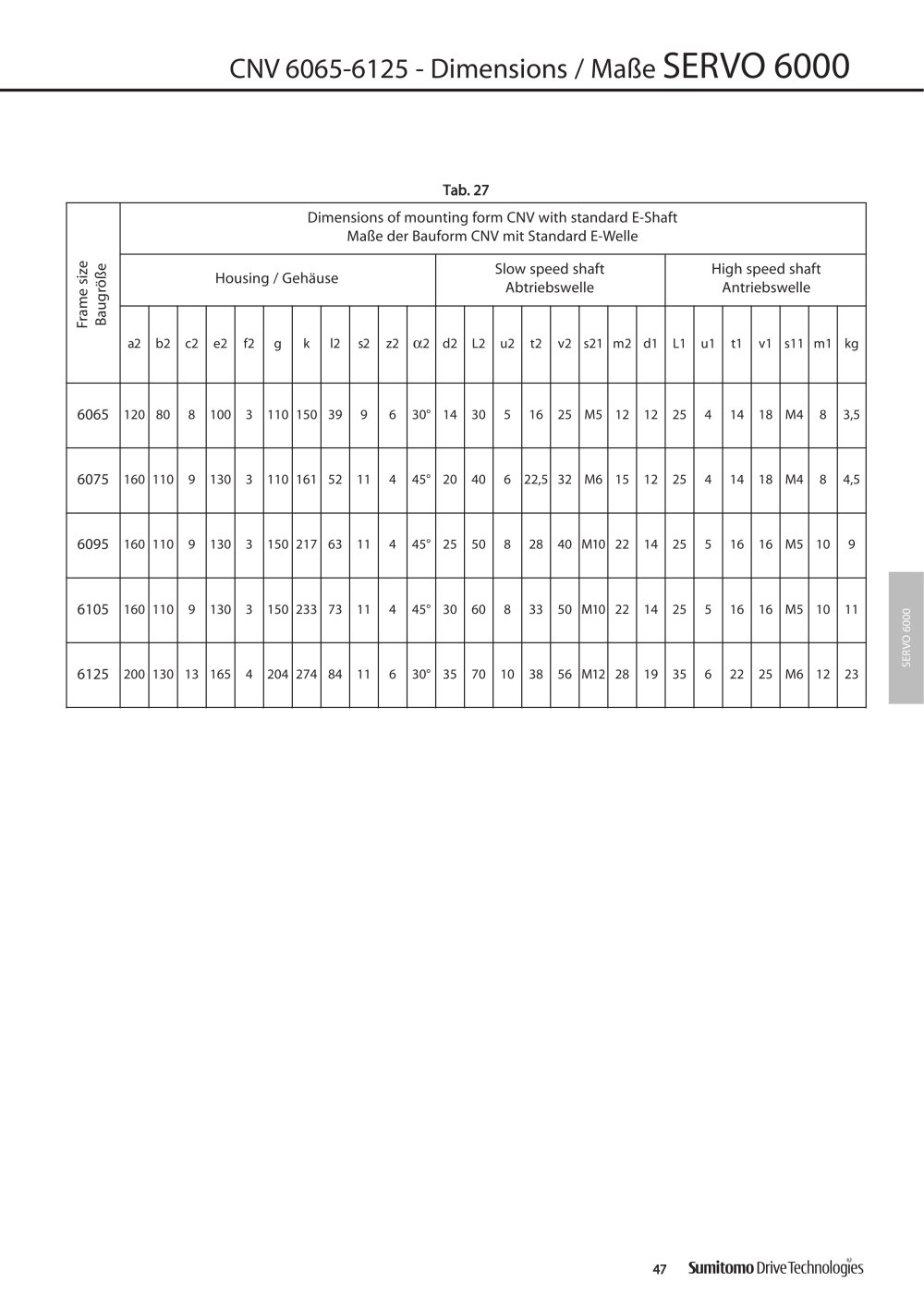

CNV 6065-6125 - Dimensions / Maße SERVO 6000
47
Tab. 27
Frame size
Baugröße
High speed shaft
Antriebswelle
Slow speed shaft
Abtriebswelle
Dimensions of mounting form CNV with standard E-Shaft
Maße der Bauform CNV mit Standard E-Welle
Housing / Gehäuse
