a b c e e3 f g h n s w d2 L2 u2 t2 v v2 s21 s21
6065 60 120 10 84 12 144 110 80 35 9 46 14 30 5 16 2,5 25 M5 12
6075 60 120 10 84 12 144 110 80 35 9 57 20 40 6 23 4 32 M6 15
6095 90 150 12 130 15 180 150 100 40 11 75 25 50 8 28 3,5 4 M10 22
6105 90 150 12 135 15 180 150 100 40 11 85 30 60 8 33 3,5 50 M10 22
6125 115 190 15 155 20 230 204 120 55 14 97 35 70 10 38 7 56 M12 28
Gewicht [kg] s.Tab. 28
Frame size
Baugröße
Slow speed shaft
Abtriebswelle
Housing / Gehäuse
Dimensions of mounting form CNHX with standard E-Shaft
Maße der Bauform CNHX mit Standard E-Welle
SERVO 6000

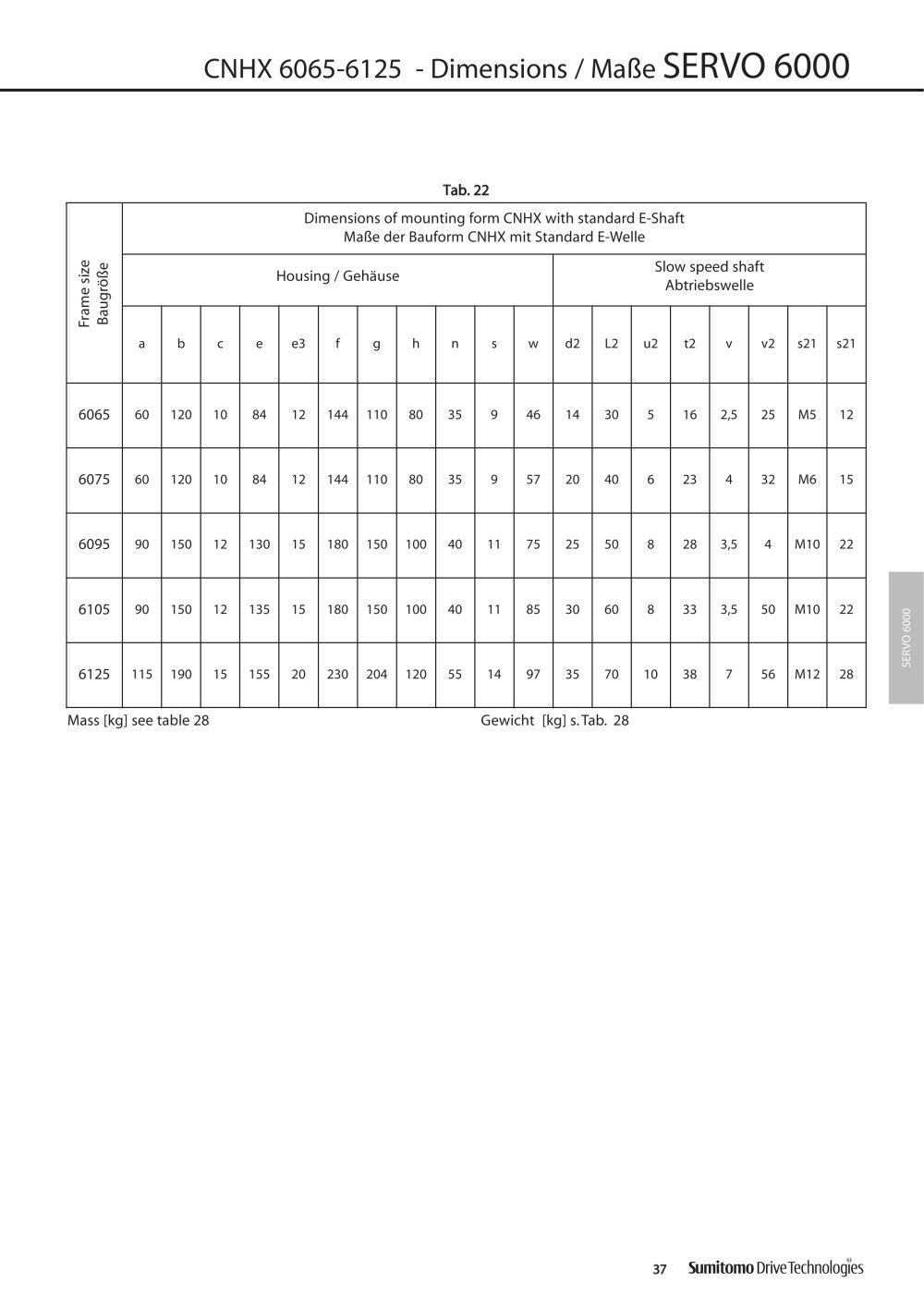

CNHX 6065-6125 - Dimensions / Maße SERVO 6000
37
Mass [kg] see table 28
Tab. 22
