b2 e2 f2 g l2 k s2 x2 z2 á2 d2 L2 u2 t2 v v2 s21 m2 d1 L1 u1 t1 v1 s11 m1 kg
6065 80 98 4 110 73 150 M6 26 6 0° 14 30 5 16 2,5 25 M5 12 12 25 4 13,5 18 M4 8 2,7
6075 80 98 4 110 84 161 M6 26 6 0° 20 40 6 22,5 4 32 M6 15 12 25 4 13,5 18 M4 8 2,9
6095 105 134 6 150 129 217 M8 26 8 22,5° 25 50 8 28 3,5 40 M10 22 14 25 5 160 16 M5 10 8
6105 105 134 6 150 139 233 M8 27 8 22,5° 30 60 8 33 3,5 50 M10 22 14 25 5 16 16 M5 10 10
6125 140 180 14 204 154 274 M10 32 6 0° 35 70 10 38 7 56 M12 28 19 35 6 21,5 25 M6 12 20
SERVO 6000

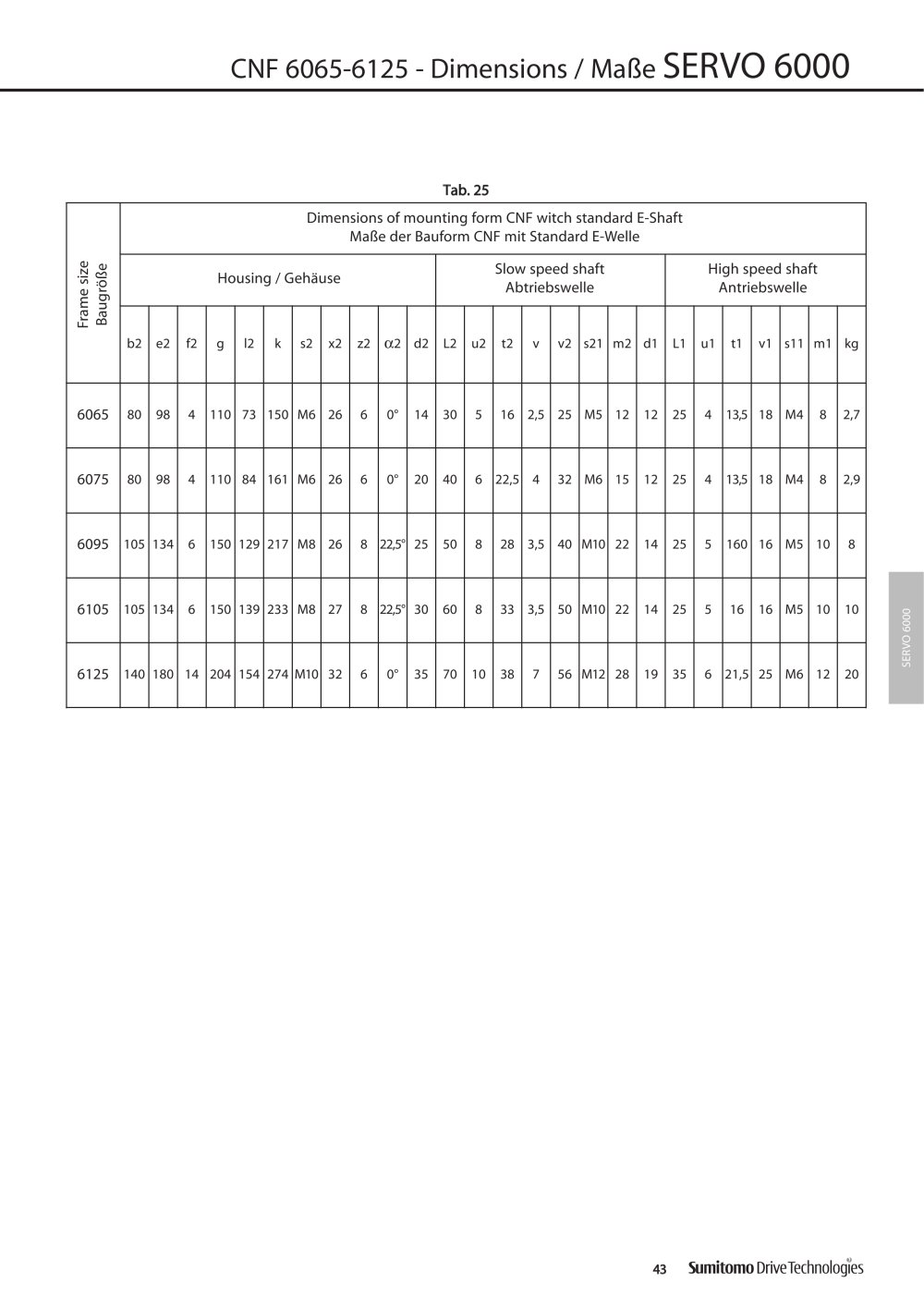

CNF 6065-6125 - Dimensions / Maße SERVO 6000
43
Tab. 25
Frame size
Baugröße
High speed shaft
Antriebswelle
Slow speed shaft
Abtriebswelle
Dimensions of mounting form CNF witch standard E-Shaft
Maße der Bauform CNF mit Standard E-Welle
Housing / Gehäuse
