SFC Cooling Tower Drives
18Pages

{{requestButtons}}

Catalog excerpts

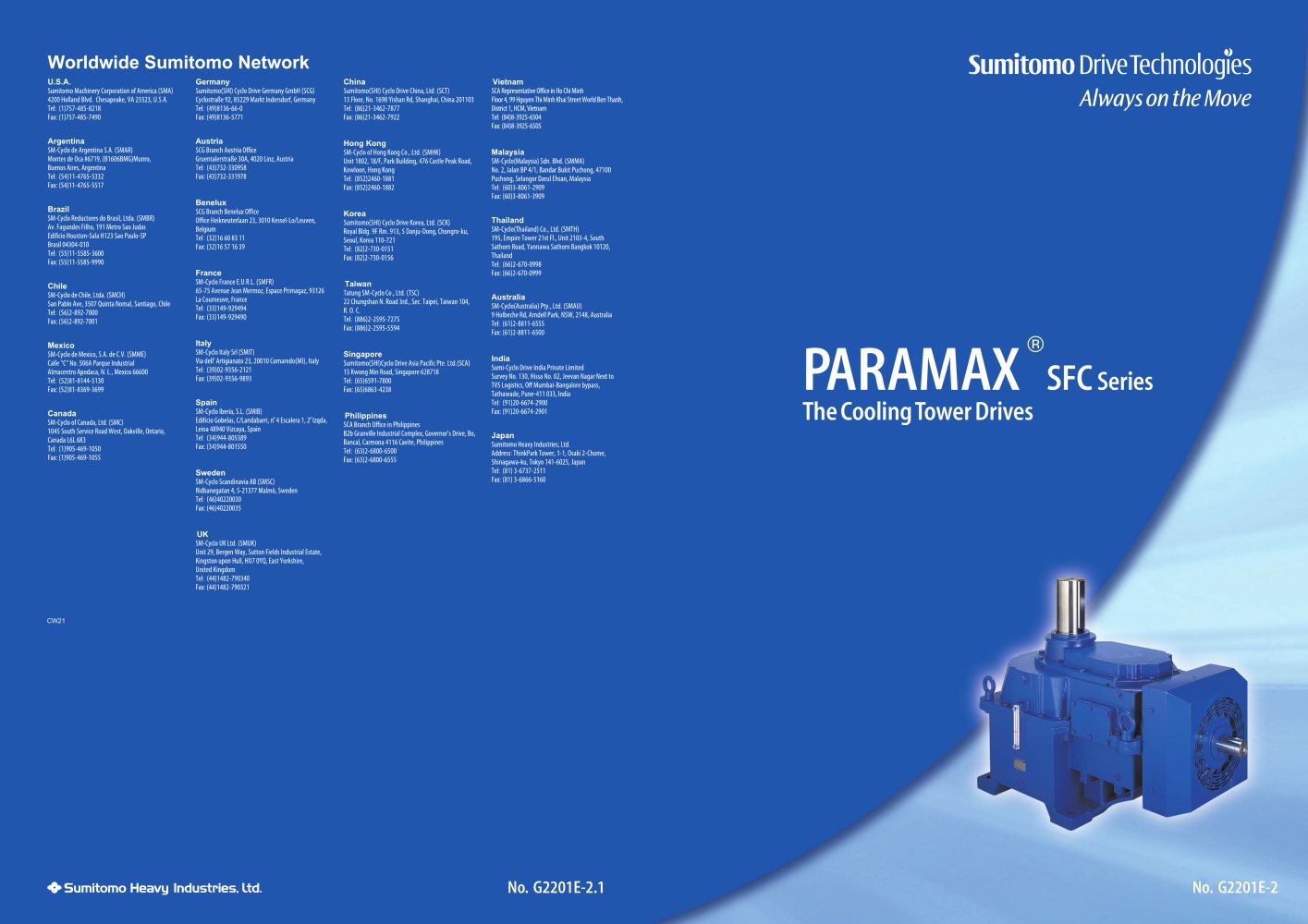

SFC Cooling Tower Drives - 1

Worldwide Sumitomo Network Sumitomo Machinery Corporation of America (SMA) 4200 Holland Blvd. Chesapeake, VA 23323, U.S.A. SM-Cyclo de Argentina S.A. (SMAR) Buenos Aires, Argentina SM-Cyclo Reductores do Brasil, Ltda. (SMBR) Av. Fagundes Filho, 191 Metro Sao Judas EdifTcio Houston-Sala H123 Sao Paulo-SP SM-Cyclo de Chile, Ltda. (SMCH) San Pablo Ave, 3507 Quinta Nomal, Santiago, Chile SM-Cyclo de Mexico, S.A. de C.V. (SMME) Calle "C" No. 506A Parque Industrial Almacentro Apodaca, N. L, Mexico 66600 1045 South Service Road West, Oakville, Ontario, Sumitomo(SHI) Cyclo Drive Germany GmbH (SCG) CyclostraBe 92,85229 Markt Indersdorf, Germany SCG Branch Austria Office GruentalerstraBe 30A, 4020 Linz, Austria SCG Branch Benelux Office Office Heikneuterlaan 23,3010 Kessel-Lo/Leuven, SM-Cyclo France F_U.R.L(SMFR) 65-75 Avenue Jean Mermoz, Espace Ptimagaz, 93126 SM-Cyclo Italy Sri (SMIT) Via dell' Artigianato 23,20010 Cornaredo(MI), Italy SM-Cyclo Iberia, S.L.(SMIB) Edificio Gobelas, C/Landabarri, n" 4 Escalera 1,2° Izqda, Leioa 48940 Vizcaya, Spain SM-Cyclo Scandinavia AB(SMSC) Ridbanegatan 4, S-21377 Malmo, Sweden Sumitomo(SHI) Cyclo Drive China, Ltd. (SCT) 13 Floor, No. 1698 Yishan Rd, Shanghai, China 201103 Hong Kong SM-Cyclo of Hong Kong Co., Ltd. (SMHK) Unit 1802,18/F, Park Building, 476 Castle Peak Road, Kowloon, Hong Kong Sumitomo(SHI) Cyclo Drive Korea, Ltd. (SCK) Royal Bldg. 9F Rm. 913,5 Danju-Dong, Chongro-ku, 22 Chungshan N. Road 3rd., Sec. Taipei, Taiwan 104, Sumitomo(SHI)Cyclo Drive Asia Pacific Pte. Ltd.(SCA) 15 Kwong Min Road, Singapore 628718 SCA Branch Office in Philippines B2b Granville Industrial Complex, Governor's Drive, Bo, Bancal, Carmona 4116 Cavite, Philippines SCA Representative Office in Ho Chi Minh Floor 4,99 Hguyen Thi Minh Ktiai Street World Ben Thanh, Disbictl.HCM, Vietnam No. 2, Jalan BP 4/1, Bandar Bukit Puchong, 47100 Puchong, Selangor Dartil Ehsan, Malaysia 195, Empire Tower 21st Fl, Unit 2103-4, South Sathorn Road, Yannawa Sathorn Bangkok 10120, 9 Holbeche Rd, Arndell Park, NSW, 2148, Australia Sumi-Cyclo Drive India Private Limited Survey No. 130, Hissa No. 02, Jeevan Nagar Next to TVS Logistic, Off Mumbai-Bangalore bypass, Sumitomo Heavy Industries, Ltd. Address: ThinkPark Tower, 1-1, Osaki 2-Chome, Shinagawa-ku, Tokyo 141-6025, Japan Unit 29, Bergen Way, Sutton Fields Industrial Estate, Kingston upon Hull, HU7 0YQ, East Yorkshire, United Kingdom ♦ Sumitomo Heavy Industries, Ltd. Sumitomo DriveTechnologies The Cooling Tower Drives

Open the catalog to page 1
SFC Cooling Tower Drives - 2

Optimised for cooling tower use The SFC Series was specifically designed for the cooling tower environment. Use the chart to find the correct size based on motor Motor Size vs. Fan Speed *Refer to the selection table on page 5 for detatils Extended Bearing Span Even if the cooling fan is balanced, excess vibration can occur during operation. Using an extended fan drive shaft (gearbox low speed shaft), run-out due to fan operation is significantly reduced. Balanced Mounting Load By arranging the mounting bolt holes uniformly about the fan drive shaft, the load to the gearbox mounting base is...

Open the catalog to page 2
SFC Cooling Tower Drives - 4

Standard Specification Nomenclature SFC Series Size 065 Output Torque (kNm) R2 G Gear Stages S RR F Shaft Arrangement Suf fix 1 SFC (10.0) (18.0) (21.7) (27.5) (35.5) (44.0) S : Splash (Standard) R2 Right Angle Double Reduction G RR P : Shaft Driven Pump Nominal Ratio Suf fix 2 F 045 055 060 065 070 075 14 : With Cooling Fan (Standard) FB : With Cooling Fan & Backstop N : No Additional Cooling NB : With Backstop 6.3 7.1 8 9 10 11.2 12.5 14 16 18 Painting Specifications Valuation basis◎ Excellent ○ Good Painting Classification area Standard Paint Outside Paint* Heavy Duty Corrosion Resistant...

Open the catalog to page 4
SFC Cooling Tower Drives - 5

Standard Specification Standard Specifications Item Standard Specification Gear Bearing Type Roller Bearing Rated Life (L10) : Low Speed Shaft Bearing 100,000 Hours or Longer High Speed Shaft/Intermediate Shaft Bearings 50,000 Hours or Longer Shaft Material Spec. Alloy Steel Housing Material Spec. Cast Iron Seal Housing and Cover Mating surfaces : Liquid Sealant Low Speed Shaft Dust-lip Oil Seal and Seal Hood High Speed Shaft : Dust-lip Oil Seal Lubrication Oil Splash Lubrication An oil splasher attached to the high speed shaft propels oil from the lower oil reservoir to the upper bearing...

Open the catalog to page 5
SFC Cooling Tower Drives - 7

Selection Procedure kW ● Selection Order Item Determine Reduction Ratio Determine the Service Factor (SF) Determine the Reducer Size Thrust Load Selection Method Reference Page Reduction Ratio Motor Speed ÷ Fan Speed ー ー ー ー SF = 2.0 ー ー ー ー Motor Power ≦ Mechanical Rating (Service Factor 2.0) P.7 Rating Table P.8 Allowable Thrust Load on Slow Conservatively calculated, Actual Thrust Load = Fan Thrust Load + Fan Weight Speed Shaft Actual Thrust Load ≦ Allowable Thrust Load on Slow Speed Shaft Ambient Temperature Standard ambient temperature operating range 0 40℃ ー ー ー ー Input Shaft Rotating...

Open the catalog to page 7
SFC Cooling Tower Drives - 11

Selection Procedure HP ● Selection Order Item Determine Reduction Ratio Determine the Service Factor (SF) Determine the Reducer Size Thrust Load Selection Method Reference Page Reduction Ratio Motor Speed ÷ Fan Speed ー ー ーー SF = 2.0 ー ー ーー Motor Power ≦ Mechanical Rating (Service Factor 2.0) P.11 Rating Table P.12 Allowable Thrust Load on Slow Conservatively calculated, Actual Thrust Load = Fan Thrust Load + Fan Weight Speed Shaft Actual Thrust Load ≦ Allowable Thrust Load on Slow Speed Shaft Ambient Temperature Standard ambient temperature operating range 0 40℃ ー ー ーー Input Shaft Rotating...

Open the catalog to page 11
SFC Cooling Tower Drives - 14

Application Data Sheet  Enter the required specifications below when inquiring about SFC series reducers. 1.Load Conditions No. Items Required specification 1 Motor Type (AC, Pole Change or Inverter) 2 Motor Power 3 Maximum Start-up Power kW 4 Absord Power Motor kW kW 5 Input Shaft Speed (Min Max) Output shaft Min r/min Max r/min 6 Output Shaft Speed (Min Max) Min r/min Max r/min 7 Thrust Load (Fan Thrust + Fan Mass) Output Shaft Rotation Direction 8 (View from the shaft end) 9 Maximum Torque kN kNm 2.Installation Environment No. Items Ambient Temperature Around the Gearbox Required...

Open the catalog to page 14
