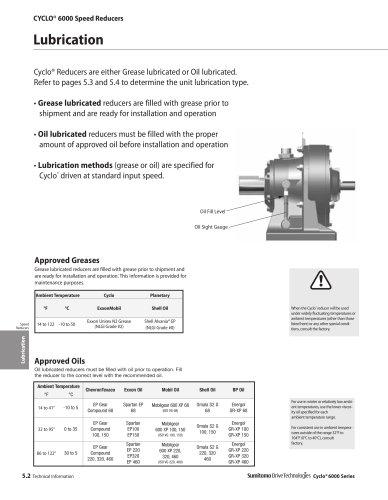

CYCLO® 6000 Speed Reducers
Lubrication
Cyclo® Reducers are either Grease lubricated or Oil lubricated.
Refer to pages 5.3 and 5.4 to determine the unit lubrication type.
• Grease lubricated reducers are filled with grease prior to
shipment and are ready for installation and operation
• Oil lubricated reducers must be filled with the proper
amount of approved oil before installation and operation
• Lubrication methods (grease or oil) are specified for
Cyclo® driven at standard input speed.
Oil Fill Level
Oil Sight Gauge
Approved Greases
Grease lubricated reducers are filled with grease prior to shipment and
are ready for installation and operation. This information is provided for
maintenance purposes.
Ambient Temperature
°F
Lubrication
Speed
Reducers
°C
14 to 122 -10 to 50
Cyclo
Planetary
ExxonMobil
Shell Oil
Exxon Unirex N2 Grease
(NLGI Grade #2)
Shell Alvania® EP
(NLGI Grade #0)
When the Cyclo® reducer will be used
under widely fluctuating temperatures or
ambient temperatures (other than those
listed here) or any other special conditions, consult the factory.
Approved Oils
Oil lubricated reducers must be filled with oil prior to operation. Fill
the reducer to the correct level with the recommended oil.
Ambient Temperature
ChevronTexaco
Exxon Oil
Mobil Oil
Shell Oil
BP Oil
-10 to 5
EP Gear
Compound 68
Spartan EP
68
Mobilgear 600 XP 68
Omala S2 G
68
Energol
GR-XP 68
0 to 35
EP Gear
Compound
100, 150
Spartan
EP100
EP150
Mobilgear
600 XP 100, 150
Omala S2 G
100, 150
Energol
GR-XP 100
GR-XP 150
EP Gear
Compound
220, 320, 460
Spartan
EP 220
EP320
EP 460
Mobilgear
600 XP 220,
320, 460
Omala S2 G
220, 320
460
Energol
GR-XP 220
GR-XP 320
GR-XP 460
°F
°C
14 to 41°
32 to 95°
86 to 122°
30 to 5
5.2 Technical Information
(ISO VG 68)
(ISO VG 100, 150)
(ISO VG 220, 460)
For use in winter or relatively low ambient temperatures, use the lower viscosity oil specified for each
ambient temperature range.
For consistent use in ambient temperatures outside of the range 32°F to
104°F (0°C to 40°C), consult
factory.
