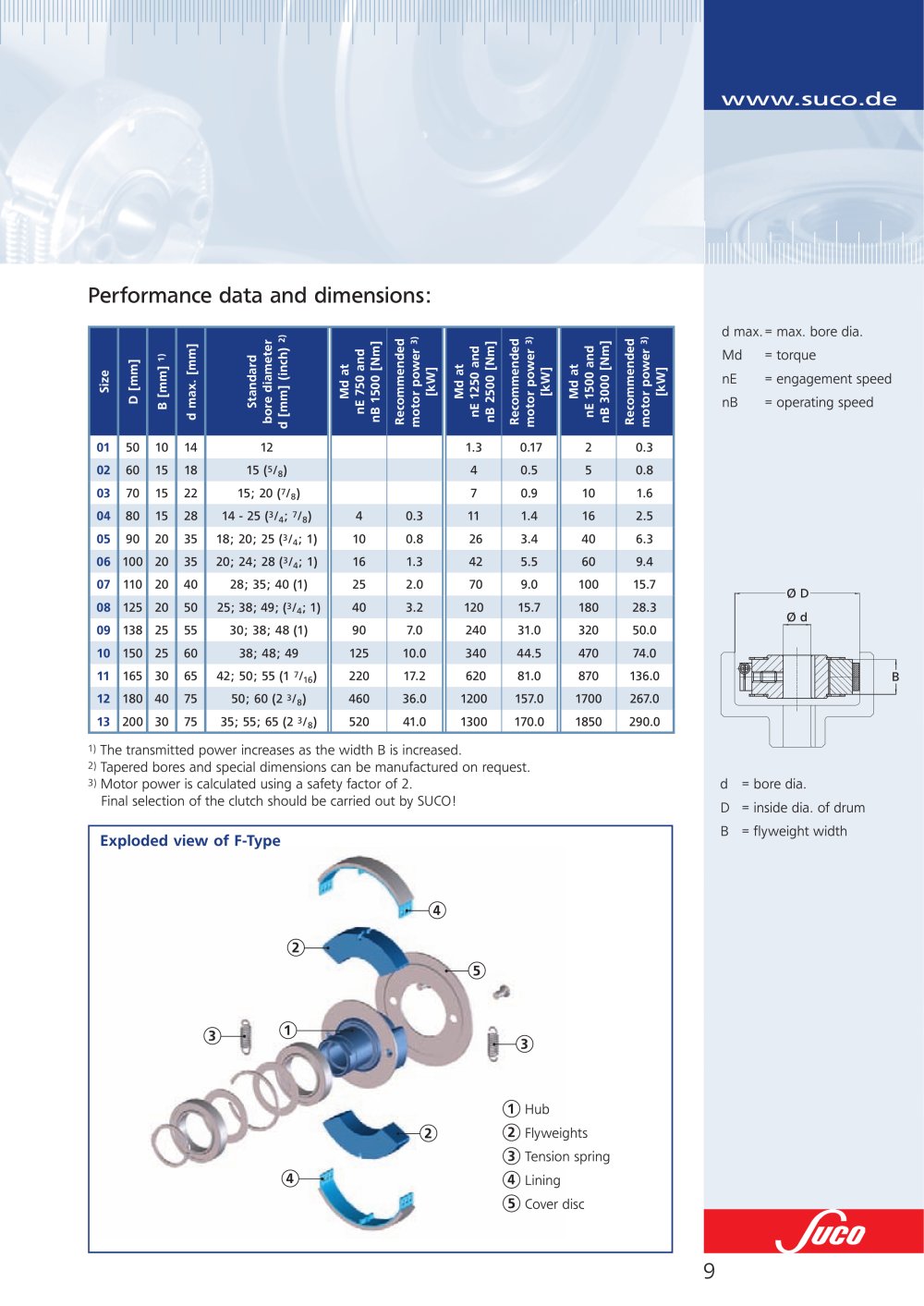

TRANSMISSION TECHNOLOGY - 14838 Performance data and dimensions:

2) 3) 3) 3)

d max. = max. bore dia.

1)

Md = torque

Size

nE = engagement speed

[kW] [kW] [kW] Md at Md at Md at D [mm] Standard B [mm] nE 750 and

nB = operating speed

nE 1250 and nE 1500 and d max. [mm] nB 1500 [Nm] nB 2500 [Nm] nB 3000 [Nm] bore diameter Recommended Recommended Recommended motor power motor power motor power d [mm] (inch) 01 50 10 14 12 1.3 0.17 2 0.3 02 60 15 18 15 (
5 /
8 ) 4 0.5 5 0.8 03 70 15 22 15; 20 (
7 /
8 ) 7 0.9 10 1.6 04 80 15 28 14 - 25 (
3 /
4 ;
7 /
8 ) 4 0.3 11 1.4 16 2.5 05 90 20 35 18; 20; 25 (
3 /
4 ; 1) 10 0.8 26 3.4 40 6.3 06 100 20 35 20; 24; 28 (
3 /
4 ; 1) 16 1.3 42 5.5 60 9.4 07 110 20 40 28; 35; 40 (1) 25 2.0 70 9.0 100 15.7 Ø D 08 125 20 50 25; 38; 49; (
3 /
4 ; 1) 40 3.2 120 15.7 180 28.3 Ø d 09 138 25 55 30; 38; 48 (1) 90 7.0 240 31.0 320 50.0 10 150 25 60 38; 48; 49 125 10.0 340 44.5 470 74.0 11 165 30 65 42; 50; 55 (1
7 /
16 ) 220 17.2 620 81.0 870 136.0 B 12 180 40 75 50; 60 (2
3 /
8 ) 460 36.0 1200 157.0 1700 267.0 13 200 30 75 35; 55; 65 (2
3 /
8 ) 520 41.0 1300 170.0 1850 290.0
1)

The transmitted power increases as the width B is increased.

2)

Tapered bores and special dimensions can be manufactured on request.

3)

Motor power is calculated using a safety factor of 2. d = bore dia. Final selection of the clutch should be carried out by SUCO! D = inside dia. of drum

E x p l o d e d v i e w o f F - T y p e

B = fl yweight width 4 2 5 3 1 3 1 Hub 2 2 Flyweights 3 Tension spring 4 4 Lining 5 Cover disc
