www.suco.de

Electromagnetic clutches and brakes

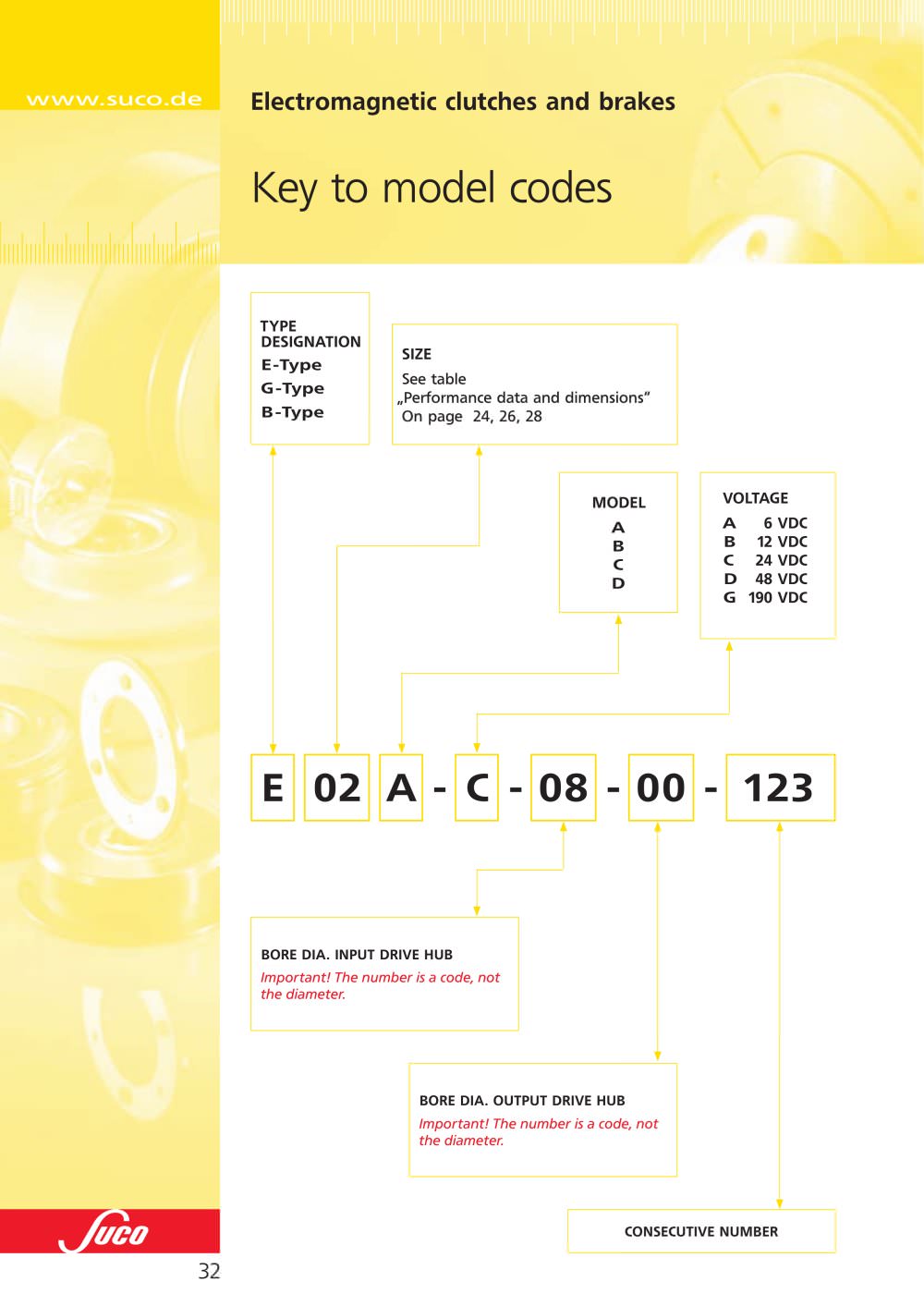

Key to model codes

TYPE DESIGNATION E-TypeG-TypeB-Type SIZE See table „Performance data and dimensions“On page 24, 26, 28 MODEL VOLTAGE ABCD A 6 VDC B 12 VDC C 24 VDC D 48 VDC G 190 VDC

E 02 A C 08 - ---00 123

BORE DIA. INPUT DRIVE HUB Important! The number is a code, not the diameter. BORE DIA. OUTPUT DRIVE HUB Important! The number is a code, not the diameter. CONSECUTIVE NUMBER

32
