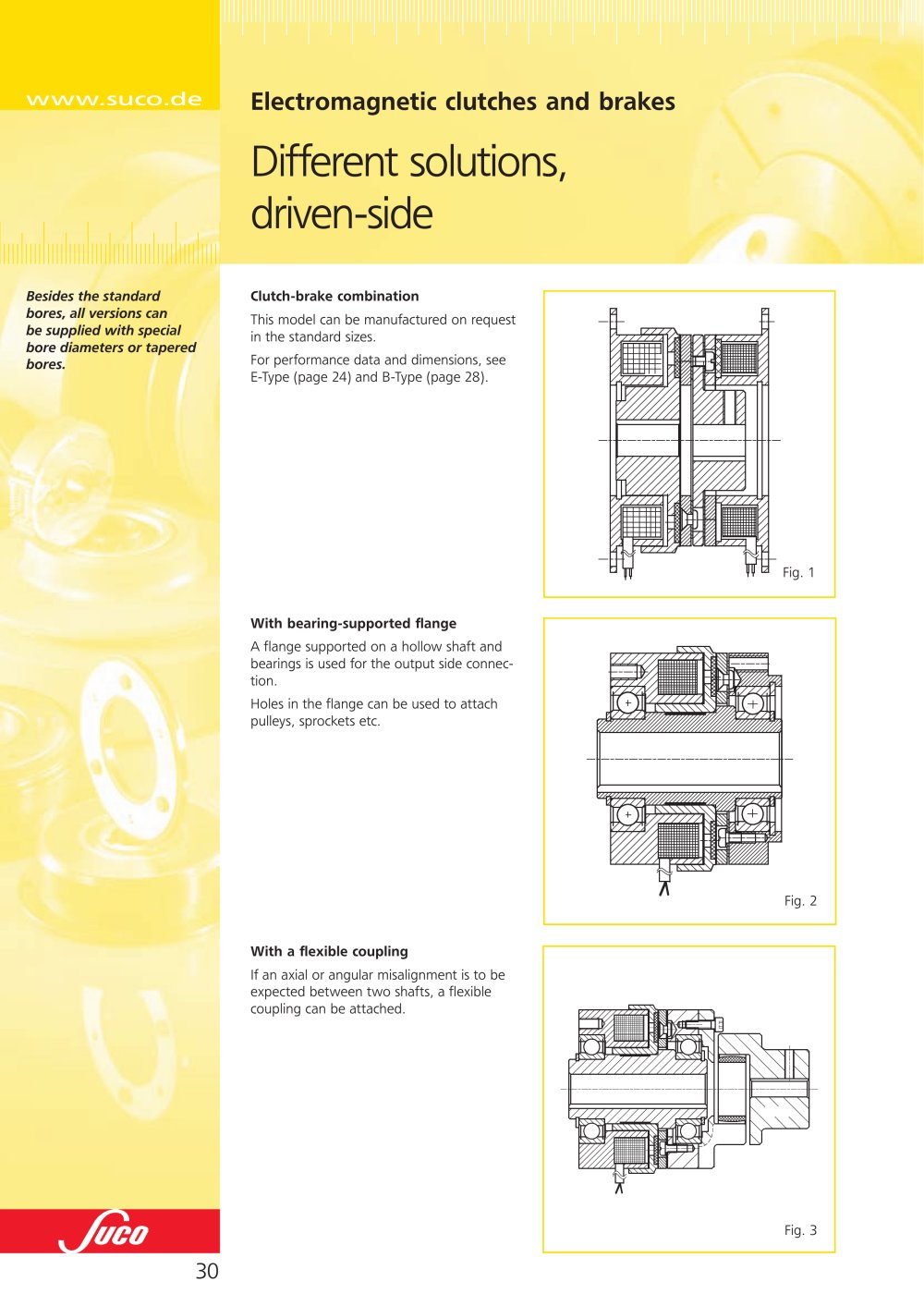

Clutch-brake combination
Different solutions, driven-side
This model can be manufactured on request in the standard sizes.For performance data and dimensions, see E-Type (page 24) and B-Type (page 28). Besides the standard
bores, all versions can be supplied with special bore diameters or tapered bores. With bearing-supported fl ange A fl ange supported on a hollow shaft and bearings is used for the output side connec-
tion.Holes in the fl ange can be used to attach pulleys, sprockets etc. With a fl exible coupling If an axial or angular misalignment is to be expected between two shafts, a fl exible coupling can be attached.
Fig. 1
Fig. 3
Fig. 2
30
