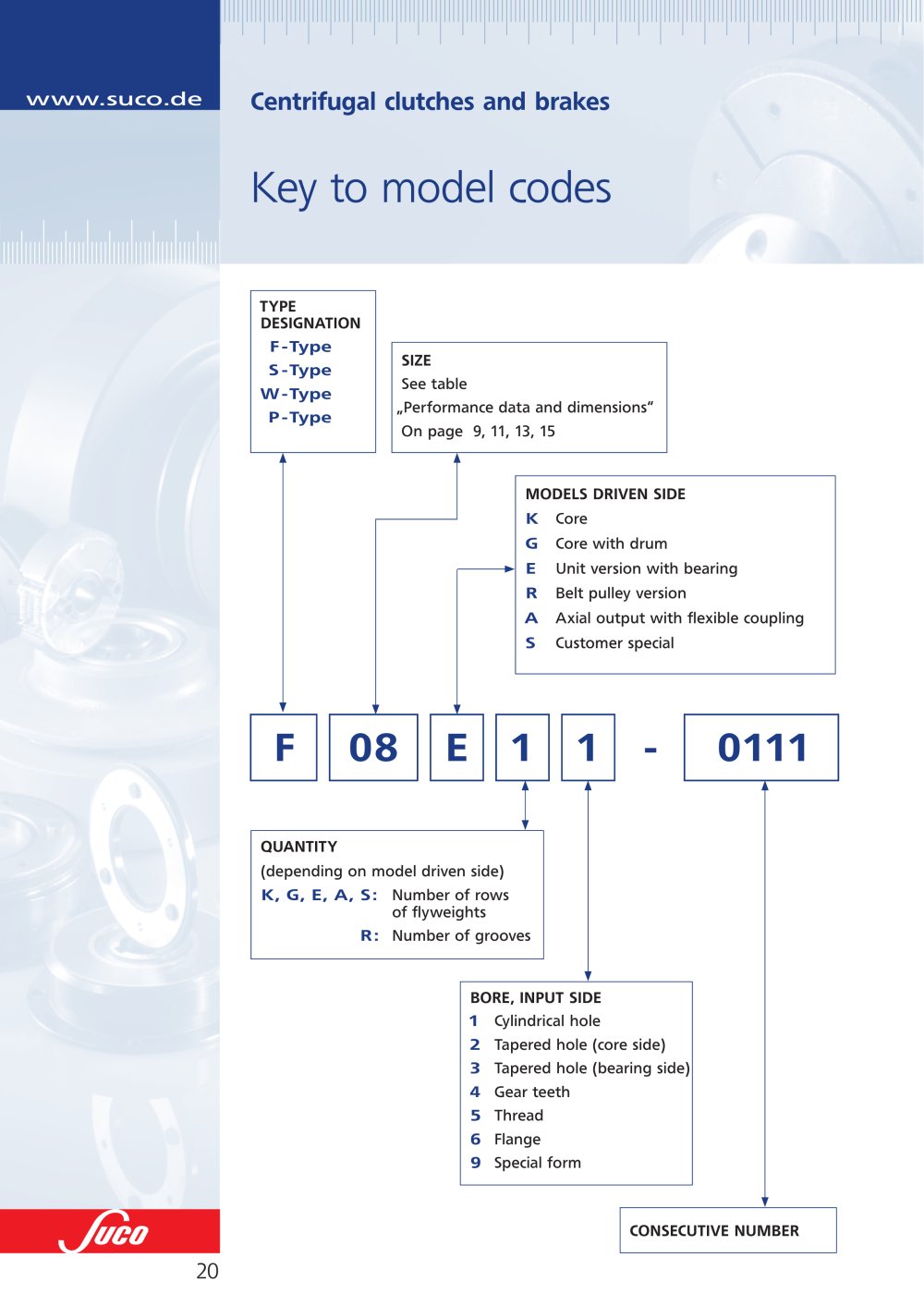

Key to model codes

TYPE DESIGNATION F-Type S-Type W-Type P-Type SIZE See table „Performance data and dimensions“On page 9, 11, 13, 15 MODELS DRIVEN SIDE K Core G Core with drum E Unit version with bearing R Belt pulley version A Axial output with fl exible coupling S Customer special

F 08 E 1 1 - 0111

QUANTITY (depending on model driven side) K, G, E, A, S: Number of rows of fl yweights K, G, E, A, R: Number of grooves BORE, INPUT SIDE 1 Cylindrical hole 2 Tapered hole (core side) 3 Tapered hole (bearing side) 4 Gear teeth 5 Thread 6 Flange 9 Special form CONSECUTIVE NUMBER

20
