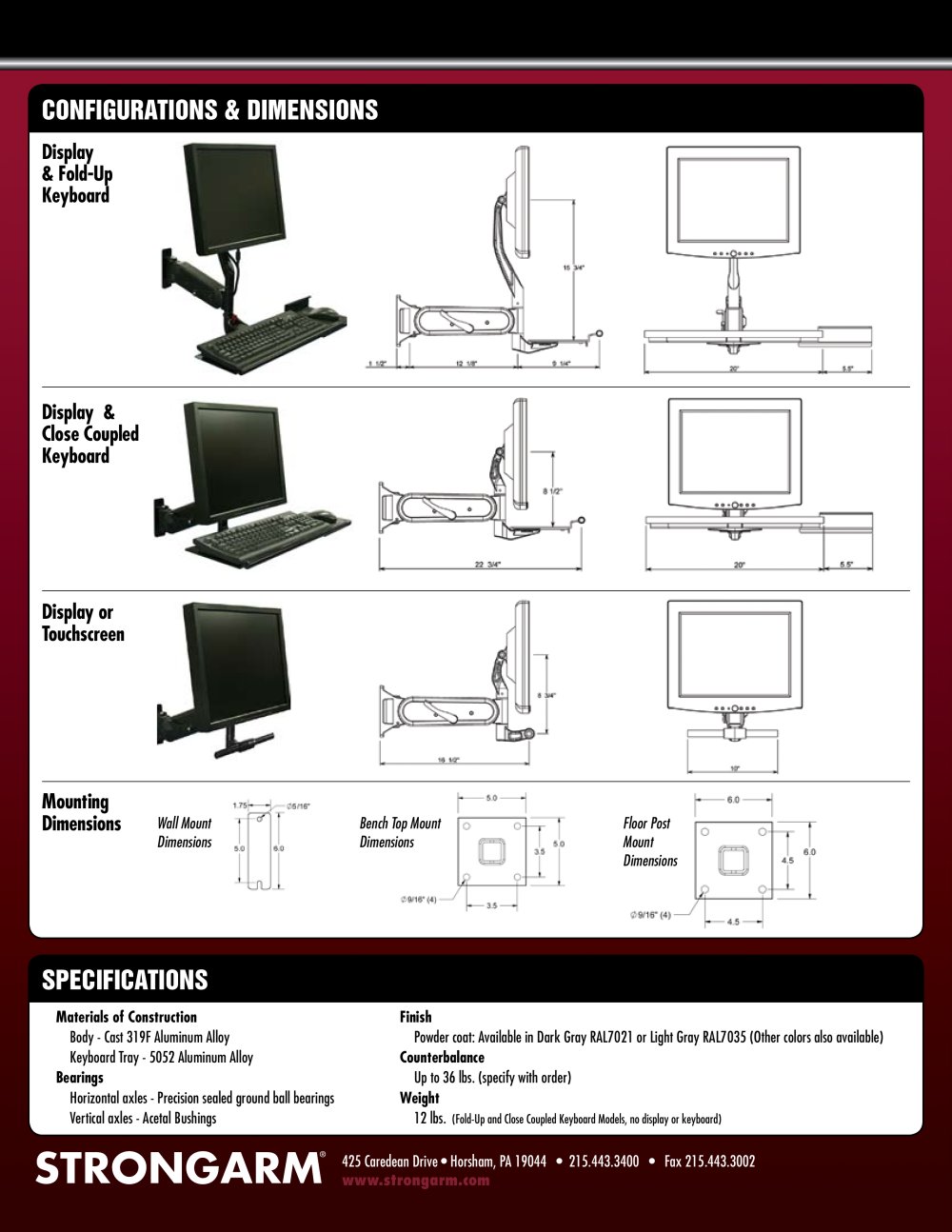

CONFIGURATIONS & DIMENSIONS

Display & Fold-Up Keyboard Display & Close Coupled KeyboardDisplay or Touchscreen

DisplayOnly Designed for touchscreen applications

Mounting Dimensions

Wall Mount DimensionsBench Top Mount DimensionsFloor Post Mount Dimensions

SPECIFICATIONS

Finish Powder coat: Available in Dark Gray RAL7021 or Light Gray RAL7035 (Other colors also available) Materials of Construction Counterbalance Bearings Body - Cast 319F Aluminum Alloy Keyboard Tray - 5052 Aluminum Alloy Up to 36 lbs. (specify with order) Horizontal axles - Precision sealed ground ball bearings Vertical axles - Acetal Bushings Weight 12 lbs.
(Fold-Up and Close Coupled Keyboard Models, no display or keyboard) 425 Caredean Drive • Horsham, PA 19044 • 215.443.3400 • Fax 215.443.3002 www.strongarm.com
