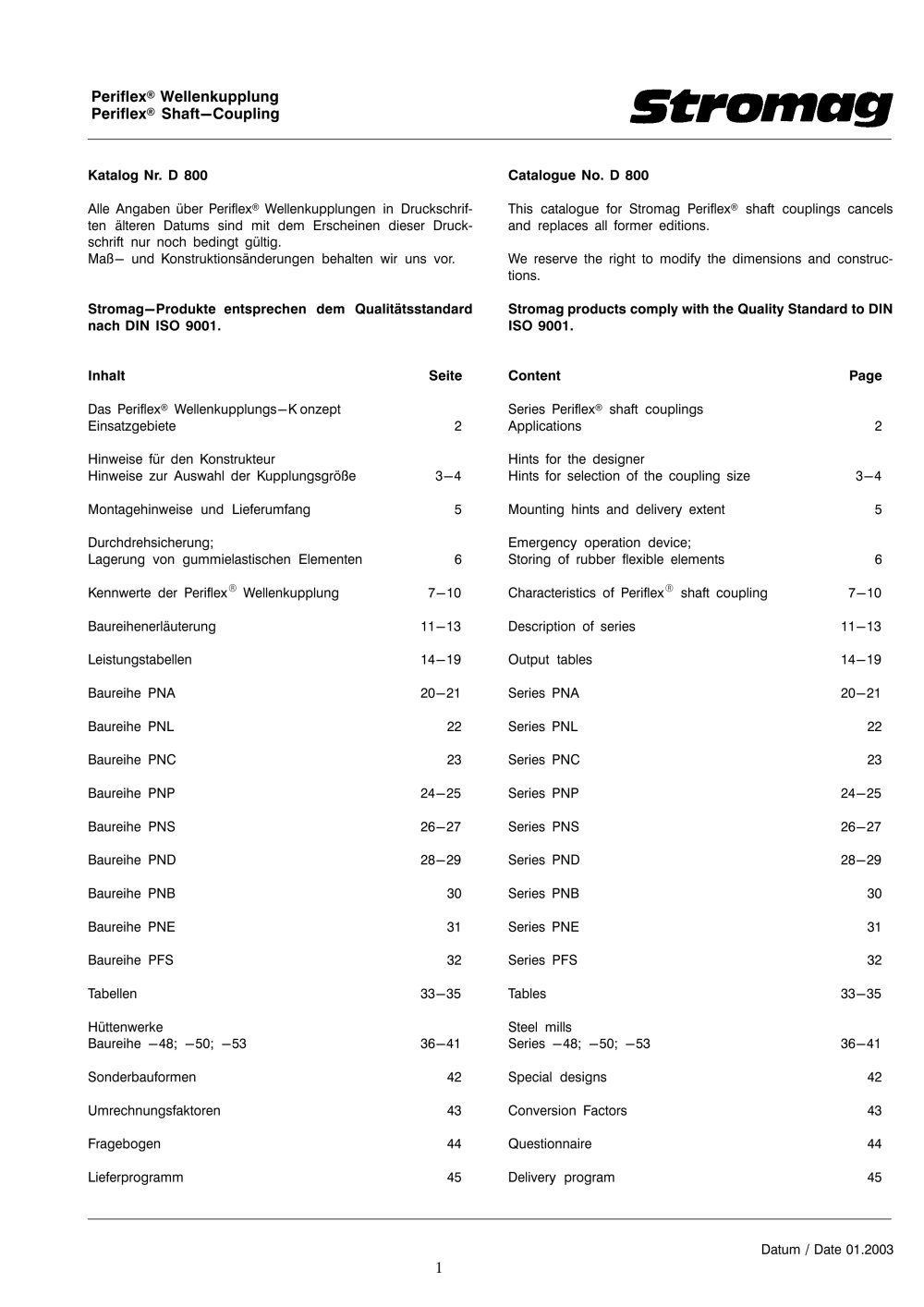

| Periflex® Wellenkupplung Periflex® Shaft-Coupling | ||||||||||||||||
| Katalog Nr. D 800 Alle Angaben über Periflex® Wellenkupplungen in Druckschriften älteren Datums sind mit dem Erscheinen dieser Druckschrift nur noch bedingt gültig. Maß- und Konstruktionsänderungen behalten wir uns vor. | Catalogue No. D 800 This catalogue for Stromag Periflex® shaft couplings cancels and replaces all former editions. We reserve the right to modify the dimensions and constructions. Stromag products comply with the Quality Standard to DIN | |||||||||||||||
| Stromag—Produkte entsprechen dem Qualitätsstandard | ||||||||||||||||
| nach DIN ISO 9001. Inhalt Seite Das Periflex® Wellenkupplungs-Konzept Einsatzgebiete 2 Hinweise für den Konstrukteur Hinweise zur Auswahl der Kupplungsgröße 3-4 Montagehinweise und Lieferumfang 5 Durchdrehsicherung; Lagerung von gummielastischen Elementen 6 Kennwerte der Periflex® Wellenkupplung 7-10 Baureihenerläuterung 11-13 Leistungstabellen 14-19 Baureihe PNA 20-21 Baureihe PNL 22 Baureihe PNC 23 Baureihe PNP 24-25 Baureihe PNS 26-27 Baureihe PND 28-29 Baureihe PNB 30 Baureihe PNE 31 Baureihe PFS 32 Tabellen 33-35 Hüttenwerke Baureihe -48; -50; -53 36-41 Sonderbauformen 42 Umrechnungsfaktoren 43 Fragebogen 44 Lieferprogramm 45 | ISO 9001. Content Page Series Periflex® shaft couplings Applications 2 Hints for the designer Hints for selection of the coupling size 3-4 Mounting hints and delivery extent 5 Emergency operation device; Storing of rubber flexible elements 6 Characteristics of Periflex® shaft coupling 7-10 Description of series 11-13 Output tables 14-19 Series PNA 20-21 Series PNL 22 Series PNC 23 Series PNP 24-25 Series PNS 26-27 Series PND 28-29 Series PNB 30 Series PNE 31 Series PFS 32 Tables 33-35 Steel mills Series -48; -50; -53 36-41 Special designs 42 Conversion Factors 43 Questionnaire 44 Delivery program 45 | |||||||||||||||
| Datum / Date 01.2003 | ||||||||||||||||
| 1 | ||||||||||||||||
