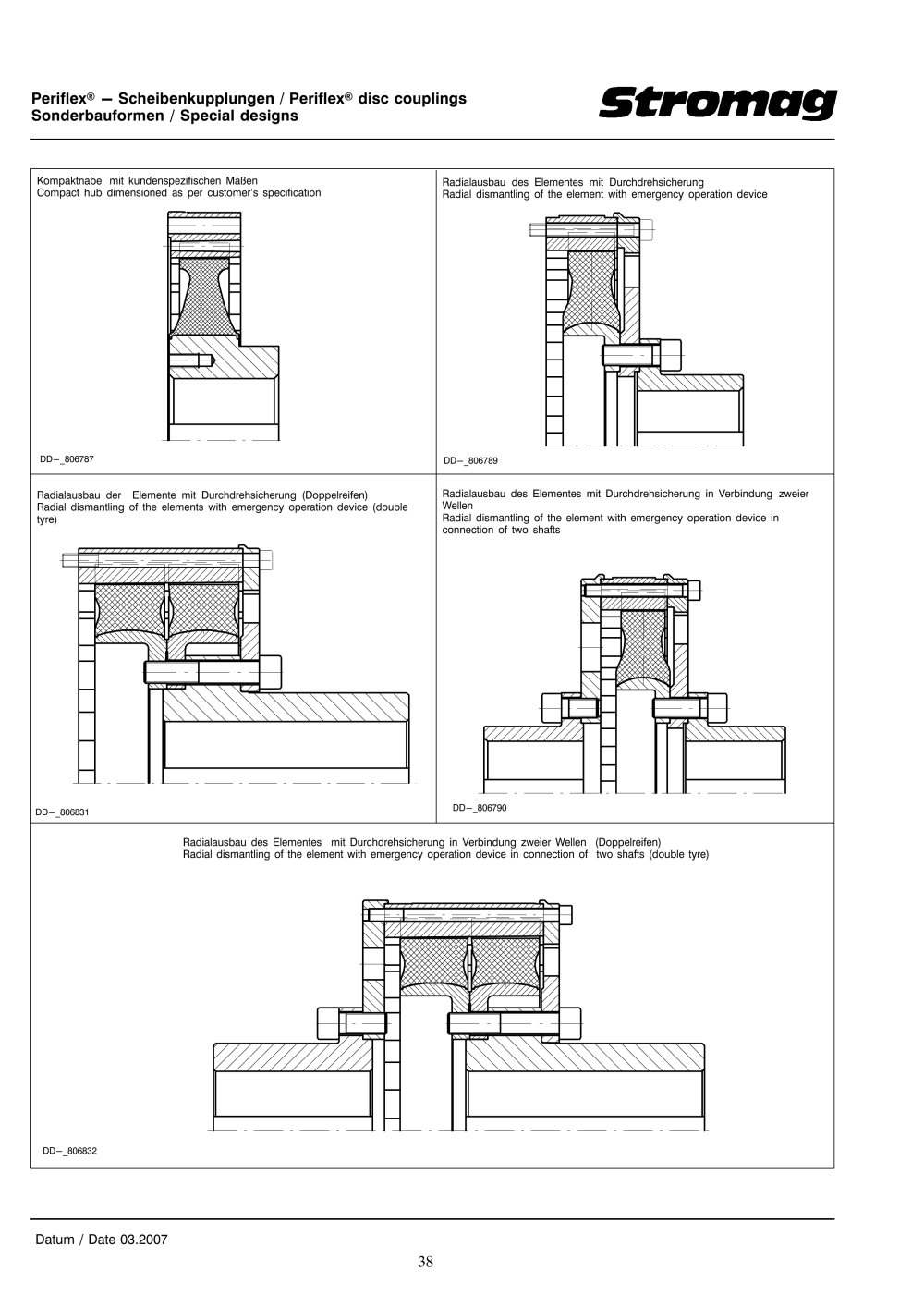

Periflex® − Scheibenkupplungen / Periflex® disc couplingsSonderbauformen / Special designs

Kompaktnabe mit kundenspezifischen MaßenCompact hub dimensioned as per customer’s specification Radialausbau des Elementes mit DurchdrehsicherungRadial dismantling of the element with emergency operation device

DD − _806787 DD − _806789

Radialausbau der Elemente mit Durchdrehsicherung (Doppelreifen)Radial dismantling of the elements with emergency operation device (doubletyre) Radialausbau des Elementes mit Durchdrehsicherung in Verbindung zweierWellenRadial dismantling of the element with emergency operation device inconnection of two shafts

DD − _806831 DD − _806790

Radialausbau des Elementes mit Durchdrehsicherung in Verbindung zweier Wellen (Doppelreifen)Radial dismantling of the element with emergency operation device in connection of two shafts (double tyre)

DD − _806832

Datum / Date 03.2007

38
