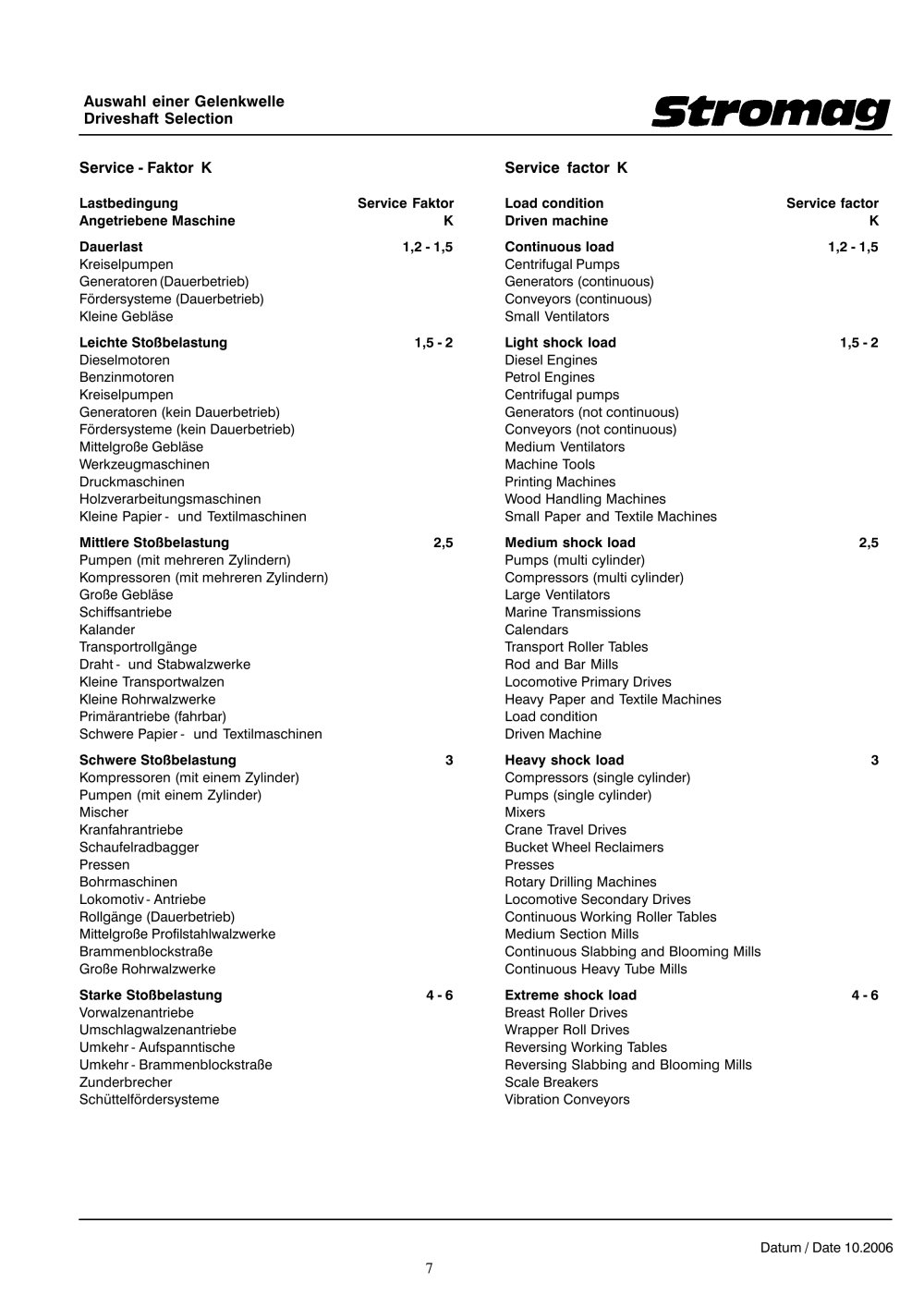

| Auswahl einer Gelenkwelle Driveshaft Selection | ||||||||||||||||||||||||||
| stromag | ||||||||||||||||||||||||||
| Service factor K | ||||||||||||||||||||||||||
| Service - Faktor K | ||||||||||||||||||||||||||
| Lastbedingung Angetriebene Maschine Dauerlast Kreiselpumpen Generatoren (Dauerbetrieb) Fördersysteme (Dauerbetrieb) Kleine Gebläse Leichte Stoßbelastung Dieselmotoren Benzinmotoren Kreiselpumpen Generatoren (kein Dauerbetrieb) Fördersysteme (kein Dauerbetrieb) Mittelgroße Gebläse Werkzeugmaschinen Druckmaschinen Holzverarbeitungsmaschinen Kleine Papier- und Textilmaschinen Mittlere Stoßbelastung Pumpen (mit mehreren Zylindern) Kompressoren (mit mehreren Zylindern) Große Gebläse Schiffsantriebe Kalander Transportrollgänge Draht- und Stabwalzwerke Kleine Transportwalzen Kleine Rohrwalzwerke Primärantriebe (fahrbar) Schwere Papier - und Textilmaschinen Schwere Stoßbelastung Kompressoren (mit einem Zylinder) Pumpen (mit einem Zylinder) Mischer Kranfahrantriebe Schaufelradbagger Pressen Bohrmaschinen Lokomotiv- Antriebe Rollgänge (Dauerbetrieb) Mittelgroße Profilstahlwalzwerke Brammenblockstraße Große Rohrwalzwerke Starke Stoßbelastung Vorwalzenantriebe Umschlagwalzenantriebe Umkehr-Aufspanntische Umkehr - Brammenblockstraße Zunderbrecher Schüttelfördersysteme | Service Faktor Load condition K Driven machine 1,2 -1,5 Continuous load Centrifugal Pumps Generators (continuous) Conveyors (continuous) Small Ventilators 1,5 - 2 Light shock load Diesel Engines Petrol Engines Centrifugal pumps Generators (not continuous) Conveyors (not continuous) Medium Ventilators Machine Tools Printing Machines Wood Handling Machines Small Paper and Textile Machines 2,5 Medium shock load Pumps (multi cylinder) Compressors (multi cylinder) Large Ventilators Marine Transmissions Calendars Transport Roller Tables Rod and Bar Mills Locomotive Primary Drives Heavy Paper and Textile Machines Load condition Driven Machine 3 Heavy shock load Compressors (single cylinder) Pumps (single cylinder) Mixers Crane Travel Drives Bucket Wheel Reclaimers Presses Rotary Drilling Machines Locomotive Secondary Drives Continuous Working Roller Tables Medium Section Mills Continuous Slabbing and Blooming Mills Continuous Heavy Tube Mills 4 - 6 Extreme shock load Breast Roller Drives Wrapper Roll Drives Reversing Working Tables Reversing Slabbing and Blooming Mills Scale Breakers Vibration Conveyors | Service factor K 1,2 -1,5 | ||||||||||||||||||||||||
| 1,5 - 2 | ||||||||||||||||||||||||||
| 2,5 | ||||||||||||||||||||||||||
| 3 | ||||||||||||||||||||||||||
| 4 - 6 | ||||||||||||||||||||||||||
| Datum / Date 10.2006 | ||||||||||||||||||||||||||
| 7 | ||||||||||||||||||||||||||
