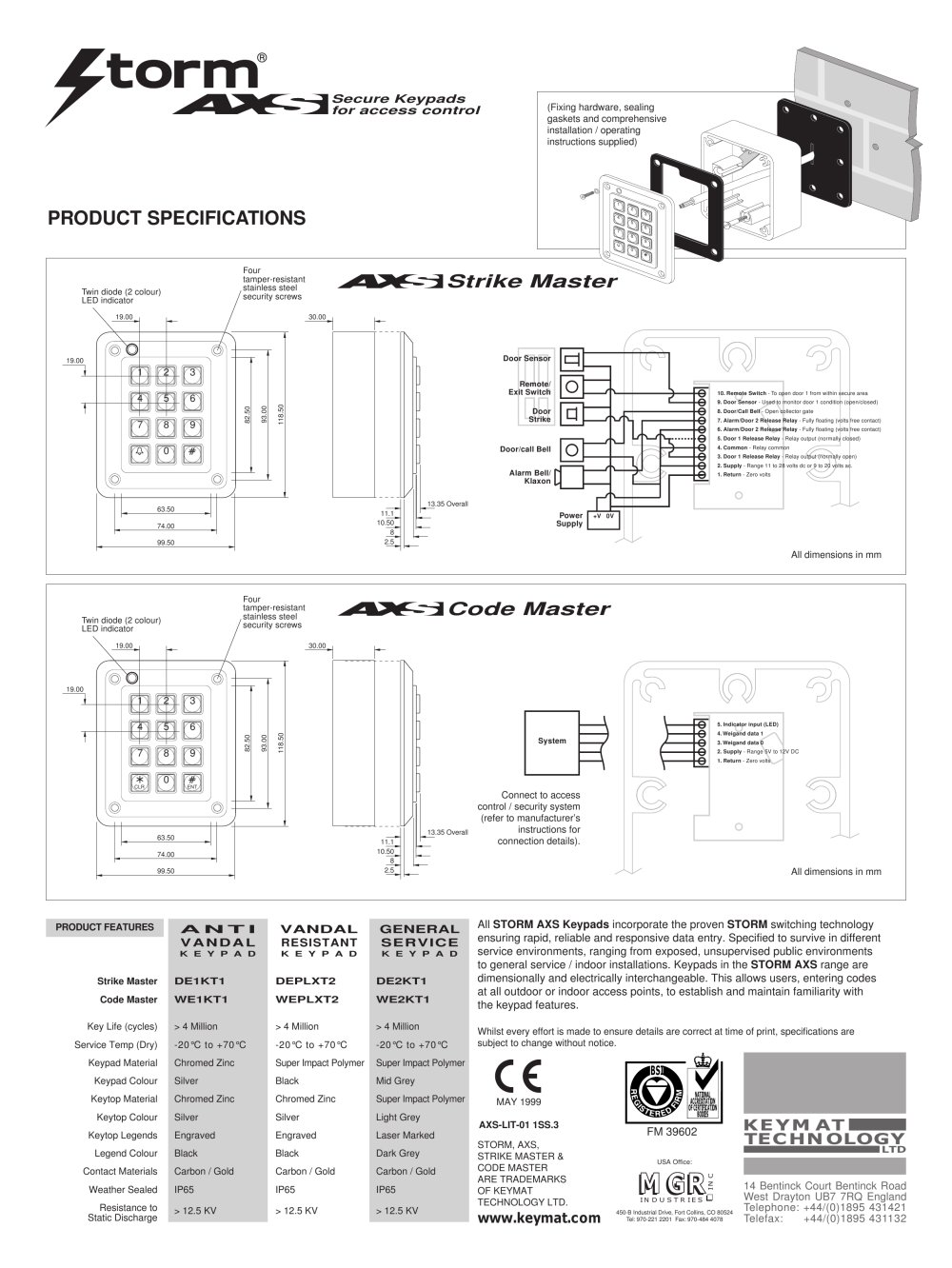

1 2 3 4 5 6 7 8 9 0 System 5. Indicator input (LED) 4. Weigand data 1 3. Weigand data 0 2. Supply - Range 5V to 12V DC 1. Return - Zero volts torm Secure Keypads for access control ® PRODUCT SPECIFICATIONS 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 10.50 30.00 1 2 3 4 5 6 7 8 9 0 13.35 Overall 2.5 8 11.1 Twin diode (2 colour) LED indicator Four tamper-resistant stainless steel security screws 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 1 2 3 4 5 6 7 8 9 0 10.50 30.00 13.35 Overall 2.5 8 11.1 CLR ENT Twin diode (2 colour) LED indicator Four tamper-resistant stainless steel security screws Strike Master Code Master TECHNOLOGY KEYMAT LTD 14 Bentinck Court Bentinck Road West Drayton UB7 7RQ England Telephone: +44/(0)1895 431421 Telefax: +44/(0)1895 431132 I N D U S T R I E S MGR I N C USA Office: 450-B Industrial Drive, Fort Collins, CO 80524 Tel: 970-221 2201 Fax: 970-484 4078 Connect to access control / security system (refer to manufacturer’s instructions for connection details). PRODUCT FEATURES > 4 Million WE1KT1 DE1KT1 -20°C to +70°C Chromed Zinc Silver Chromed Zinc Silver Engraved Black Dark Grey Carbon / Gold Carbon / Gold > 4 Million WE2KT1 DE2KT1 -20°C to +70°C Super Impact Polymer Mid Grey Super Impact Polymer Light Grey Laser Marked Key Life (cycles) Code Master Strike Master Service Temp (Dry) Keypad Material Keypad Colour Keytop Material Keytop Colour Keytop Legends Legend Colour Contact Materials Weather Sealed IP65 IP65 Resistance to > 12.5 KV > 12.5 KV Static Discharge ANTI VANDAL K E Y P A D GENERAL SERVICE K E Y P A D Black Carbon / Gold > 4 Million WEPLXT2 DEPLXT2 -20°C to +70°C Super Impact Polymer Black Chromed Zinc Silver Engraved IP65 > 12.5 KV VANDAL RESISTANT K E Y P A D All STORM AXS Keypads incorporate the proven STORM switching technology ensuring rapid, reliable and responsive data entry. Specified to survive in different service environments, ranging from exposed, unsupervised public environments to general service / indoor installations. Keypads in the STORM AXS range are dimensionally and electrically interchangeable. This allows users, entering codes at all outdoor or indoor access points, to establish and maintain familiarity with the keypad features. Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. MAY 1999 AXS-LIT-01 1SS.3 1 3 2 6 5 4 7 9 8 0 (Fixing hardware, sealing gaskets and comprehensive installation / operating instructions supplied) 1 2 3 4 5 6 7 8 9 0 Door Sensor Remote/ Exit Switch Door Strike Door/call Bell Alarm Bell/ Klaxon Power Supply 10. Remote Switch - To open door 1 from within secure area 9. Door Sensor - Used to monitor door 1 condition (open/closed) 8. Door/Call Bell - Open collector gate 7. Alarm/Door 2 Release Relay - Fully floating (volts free contact) 5. Door 1 Release Relay - Relay output (normally closed) 4. Common - Relay common 3. Door 1 Release Relay - Relay output (normally open) 2. Supply - Range 11 to 28 volts dc or 9 to 20 volts ac. 1. Return - Zero volts 6. Alarm/Door 2 Release Relay - Fully floating (volts free contact) +V 0V All dimensions in mm All dimensions in mm www.keymat.com STORM, AXS, STRIKE MASTER & CODE MASTER ARE TRADEMARKS OF KEYMAT TECHNOLOGY LTD. NATIONAL ACCREDITATION OF CERTIFICATION BODIES BSI FM 39602
