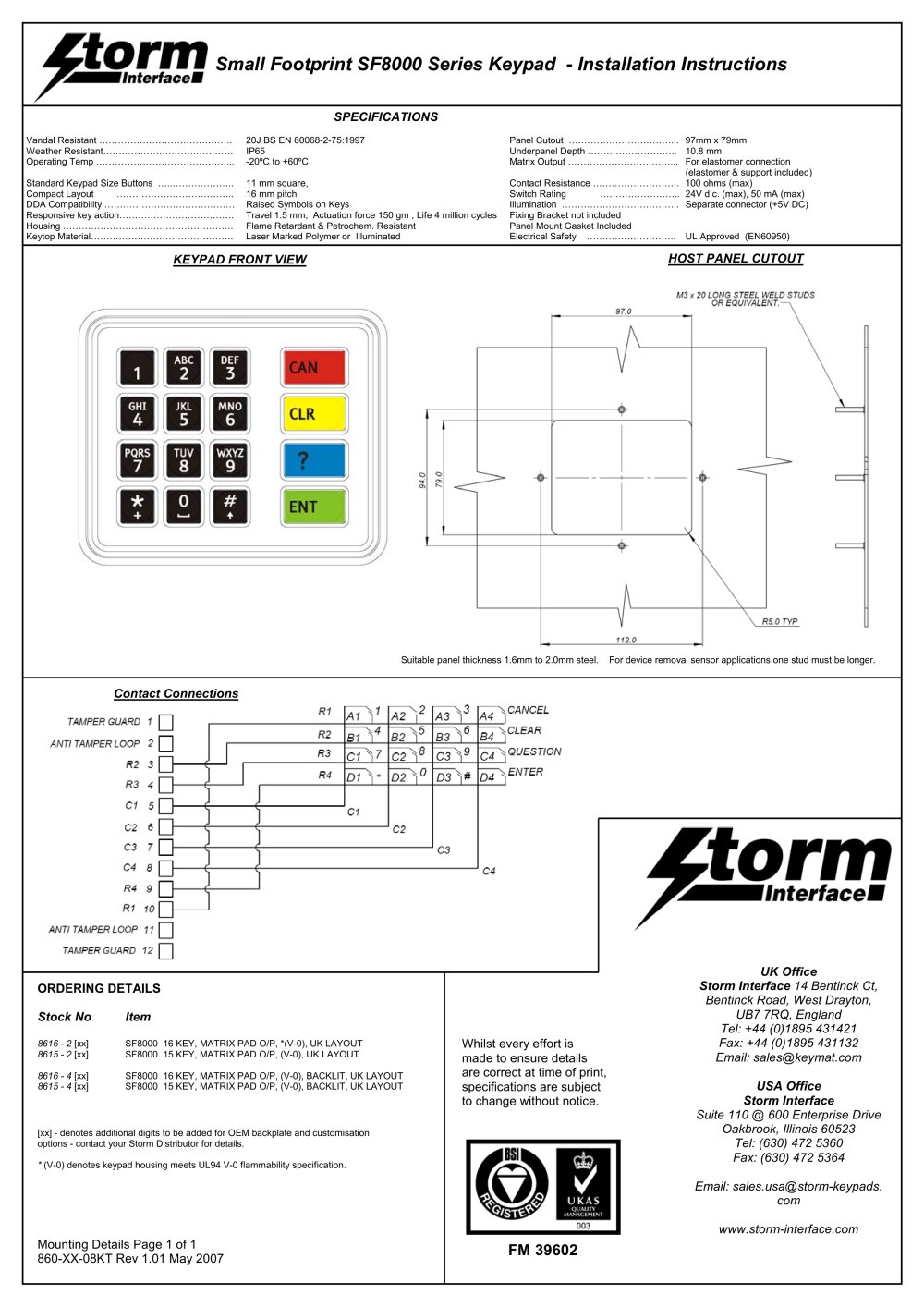

Mounting Details Page 1 of 1 860-XX-08KT Rev 1.01 May 2007 UK Office Storm Interface 14 Bentinck Ct, Bentinck Road, West Drayton, UB7 7RQ, England Tel: +44 (0)1895 431421 Fax: +44 (0)1895 431132 Email: sales@keymat.com USA Office Storm Interface Suite 110 @ 600 Enterprise Drive Oakbrook, Illinois 60523 Tel: (630) 472 5360 Fax: (630) 472 5364 Email: sales.usa@storm-keypads. com www.storm-interface.com Small Footprint SF8000 Series Keypad - Installation Instructions ORDERING DETAILS Stock No Item 8616 - 2 [xx] SF8000 16 KEY, MATRIX PAD O/P, *(V-0), UK LAYOUT 8615 - 2 [xx] SF8000 15 KEY, MATRIX PAD O/P, (V-0), UK LAYOUT 8616 - 4 [xx] SF8000 16 KEY, MATRIX PAD O/P, (V-0), BACKLIT, UK LAYOUT 8615 - 4 [xx] SF8000 15 KEY, MATRIX PAD O/P, (V-0), BACKLIT, UK LAYOUT [xx] - denotes additional digits to be added for OEM backplate and customisation options - contact your Storm Distributor for details. * (V-0) denotes keypad housing meets UL94 V-0 flammability specification. SPECIFICATIONS Vandal Resistant ……………………………………. 20J BS EN 60068-2-75:1997 Panel Cutout ……………………………... 97mm x 79mm Weather Resistant…………………………………… IP65 Underpanel Depth ……………………….. 10.8 mm Operating Temp ……………………………………... -20ºC to +60ºC Matrix Output ……………………………... For elastomer connection (elastomer & support included) Standard Keypad Size Buttons …..……………….. 11 mm square, Contact Resistance ………………………. 100 ohms (max) Compact Layout ……………………………….. 16 mm pitch Switch Rating …………………….. 24V d.c. (max), 50 mA (max) DDA Compatibility …………………………………… Raised Symbols on Keys Illumination ……………………………….. Separate connector (+5V DC) Responsive key action………………………………. Travel 1.5 mm, Actuation force 150 gm , Life 4 million cycles Fixing Bracket not included Housing ………………………………………………. Flame Retardant & Petrochem. Resistant Panel Mount Gasket Included Keytop Material………………………………………. Laser Marked Polymer or Illuminated Electrical Safety ……………………….. UL Approved (EN60950) Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. KEYPAD FRONT VIEW HOST PANEL CUTOUT Contact Connections FM 39602 Suitable panel thickness 1.6mm to 2.0mm steel. For device removal sensor applications one stud must be longer.
