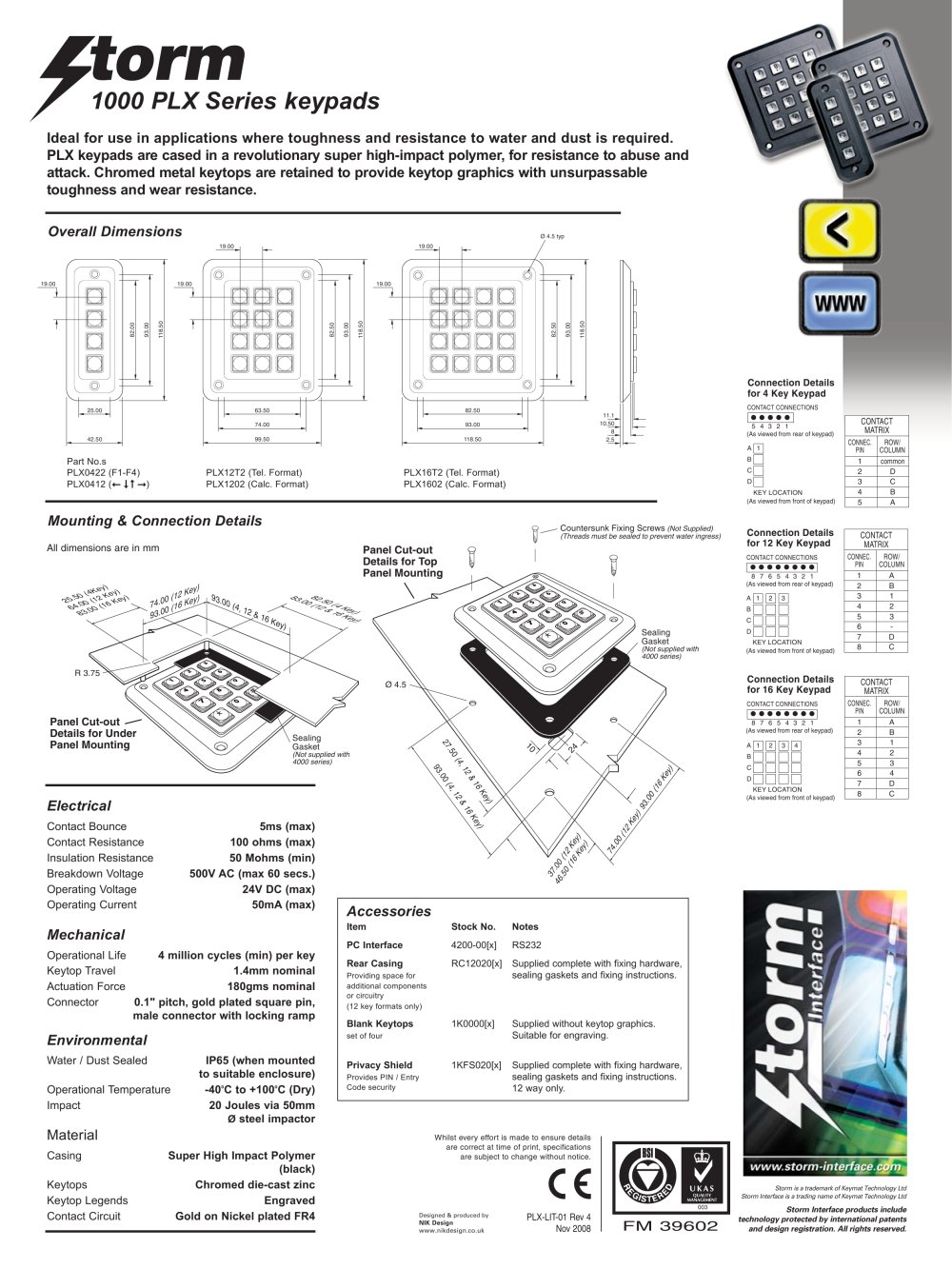

1000 PLX Series keypads Mounting & Connection Details 118.50 118.50 19.00 19.00 82.50 82.50 93.00 93.00 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 42.50 118.50 82.00 19.00 25.00 93.00 Ø 4.5 typ 10.50 2.5 8 11.1 All dimensions are in mm Ideal for use in applications where toughness and resistance to water and dust is required. PLX keypads are cased in a revolutionary super high-impact polymer, for resistance to abuse and attack. Chromed metal keytops are retained to provide keytop graphics with unsurpassable toughness and wear resistance. Part No.s PLX0422 (F1-F4) PLX0412 ( ) PLX12T2 (Tel. Format) PLX1202 (Calc. Format) PLX16T2 (Tel. Format) PLX1602 (Calc. Format) Overall Dimensions • • • • • 5 4 3 2 1 COMMON A 1 B C D KEY LOCATION CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 common D C B A CONNEC. PIN ROW/ COLUMN CONTACT MATRIX 37.00 (12 Ke 46.50 (16 A 1 2 3 B C D KEY LOCATION CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 12 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 6 7 8 A B 1 2 3 - D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX A 1 2 3 4 B C D KEY LOCATION 1 2 3 4 5 6 7 8 A B 1 2 3 4 D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 16 Key Keypad (As viewed from front of keypad) CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 Connection Detai for 12 Key Keypad • • • • • 5 4 3 2 1 CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad CONTACT MATRIX 10 Panel Cut-out Details for Top Panel Mounting 27.50 (4, 12 & 16 Key) 37.00 (12 Key) 46.50 (16 Key) Countersunk Fixing Screws (Not Supplied) (Threads must be sealed to prevent water ingress) Ø 4.5 93.00 (4, 12 & 16 Key) 74.00 (12 Key) 93.00 (16 Key) 24 Pa De Pa Sealing Gasket (Not supplied with 4000 series) pplied) ingress) Sealing Gasket (Not supplied with 4000 series) Panel Cut-out Details for Under Panel Mounting 25.50 (4Key) 64.00 (12 Key) 83.00 (16 Key) 82.50 (4 Key) 83.00 (12 & 16 Key) R 3.75 74.00 (12 Key) 93.00 (16 Key) 93.00 (4, 12 & 16 Key) h FM 39602 003 PLX-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. Designed & produced by NIK Design www.nikdesign.co.uk Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved. Electrical Contact Bounce 5ms (max) Contact Resistance 100 ohms (max) Insulation Resistance 50 Mohms (min) Breakdown Voltage 500V AC (max 60 secs.) Operating Voltage 24V DC (max) Operating Current 50mA (max) Mechanical Operational Life 4 million cycles (min) per key Keytop Travel 1.4mm nominal Actuation Force 180gms nominal Connector 0.1" pitch, gold plated square pin, male connector with locking ramp Material Casing Super High Impact Polymer (black) Keytops Chromed die-cast zinc Keytop Legends Engraved Contact Circuit Gold on Nickel plated FR4 Environmental Water / Dust Sealed IP65 (when mounted to suitable enclosure) Operational Temperature -40oC to +100oC (Dry) Impact 20 Joules via 50mm Ø steel impactor Accessories Item Stock No. Notes PC Interface 4200-00[x] RS232 Rear Casing RC12020[x] Supplied complete with fixing hardware, Providing space for sealing gaskets and fixing instructions. additional components or circuitry (12 key formats only) Blank Keytops 1K0000[x] Supplied without keytop graphics. set of four Suitable for engraving. Privacy Shield 1KFS020[x] Supplied complete with fixing hardware, Provides PIN / Entry sealing gaskets and fixing instructions. Code security 12 way only.
