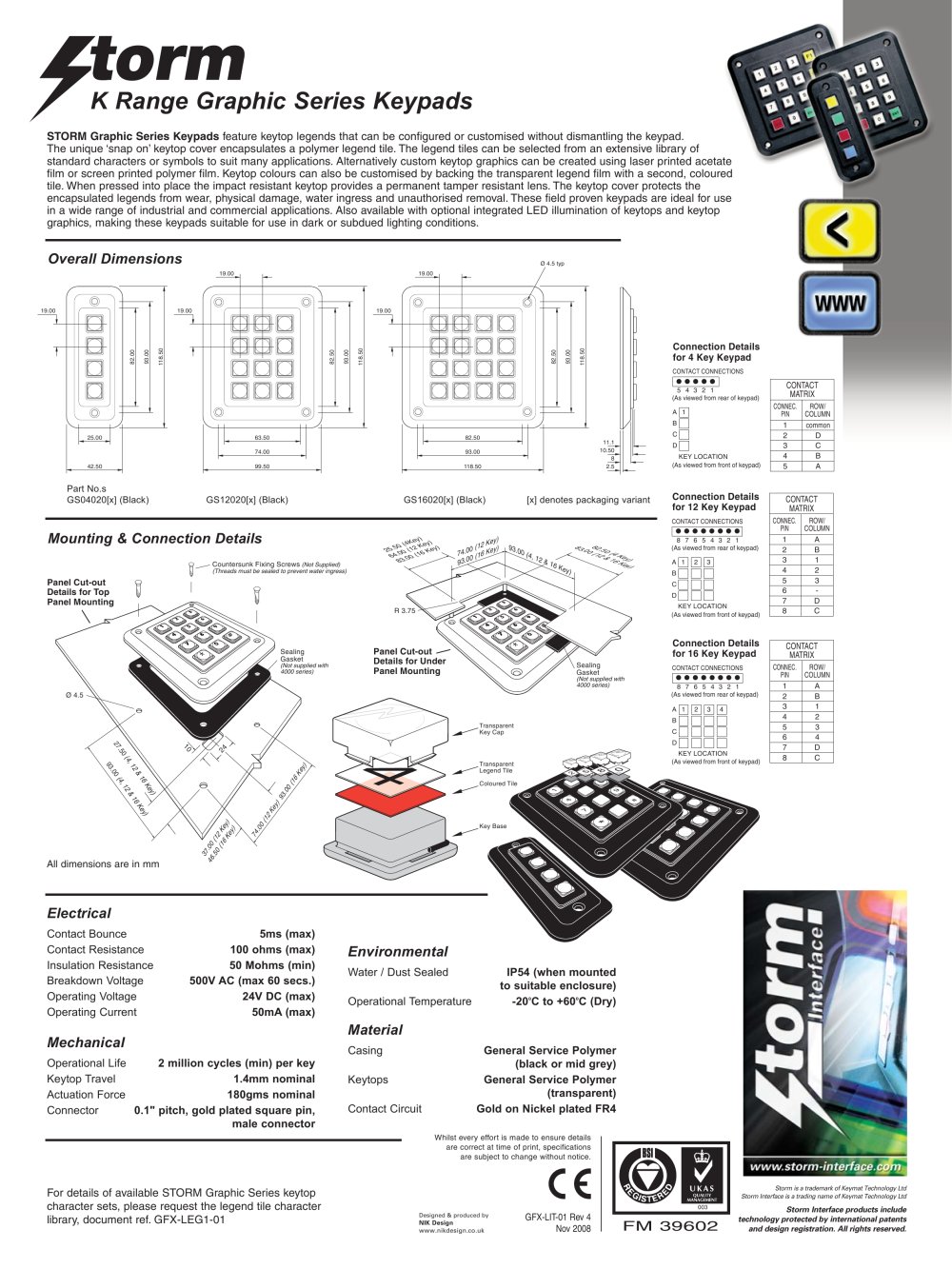

K Range Graphic Series Keypads FM 39602 003 GFX-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. Designed & produced by NIK Design www.nikdesign.co.uk Mounting & Connection Details 118.50 118.50 19.00 19.00 82.50 82.50 93.00 93.00 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 42.50 118.50 82.00 19.00 25.00 93.00 Ø 4.5 typ 10.50 2.5 8 11.1 CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 Connection Detai for 12 Key Keypad • • • • • 5 4 3 2 1 CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad CONTACT MATRIX 10 Panel Cut-out Details for Top Panel Mounting 27.50 (4, 12 & 16 Key) 37.00 (12 Key) 46.50 (16 Key) Countersunk Fixing Screws (Not Supplied) (Threads must be sealed to prevent water ingress) Ø 4.5 93.00 (4, 12 & 16 Key) 74.00 (12 Key) 93.00 (16 Key) 24 Pa De Pa Sealing Gasket (Not supplied with 4000 series) • • • • • 5 4 3 2 1 COMMON A 1 B C D KEY LOCATION CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 common D C B A CONNEC. PIN ROW/ COLUMN CONTACT MATRIX 37.00 (12 Ke 46.50 (16 A 1 2 3 B C D KEY LOCATION CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 12 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 6 7 8 A B 1 2 3 - D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX A 1 2 3 4 B C D KEY LOCATION 1 2 3 4 5 6 7 8 A B 1 2 3 4 D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 16 Key Keypad (As viewed from front of keypad) All dimensions are in mm STORM Graphic Series Keypads feature keytop legends that can be configured or customised without dismantling the keypad. The unique ‘snap on’ keytop cover encapsulates a polymer legend tile. The legend tiles can be selected from an extensive library of standard characters or symbols to suit many applications. Alternatively custom keytop graphics can be created using laser printed acetate film or screen printed polymer film. Keytop colours can also be customised by backing the transparent legend film with a second, coloured tile. When pressed into place the impact resistant keytop provides a permanent tamper resistant lens. The keytop cover protects the encapsulated legends from wear, physical damage, water ingress and unauthorised removal. These field proven keypads are ideal for use in a wide range of industrial and commercial applications. Also available with optional integrated LED illumination of keytops and keytop graphics, making these keypads suitable for use in dark or subdued lighting conditions. Part No.s GS04020[x] (Black) GS12020[x] (Black) GS16020[x] (Black) [x] denotes packaging variant Key Base Coloured Tile Transparent Legend Tile Transparent Key Cap 1 3 6 9 4 7 * # 2 5 8 0 Electrical Contact Bounce 5ms (max) Contact Resistance 100 ohms (max) Insulation Resistance 50 Mohms (min) Breakdown Voltage 500V AC (max 60 secs.) Operating Voltage 24V DC (max) Operating Current 50mA (max) Mechanical Operational Life 2 million cycles (min) per key Keytop Travel 1.4mm nominal Actuation Force 180gms nominal Connector 0.1" pitch, gold plated square pin, male connector Material Casing General Service Polymer (black or mid grey) Keytops General Service Polymer (transparent) Contact Circuit Gold on Nickel plated FR4 Environmental Water / Dust Sealed IP54 (when mounted to suitable enclosure) Operational Temperature -20oC to +60oC (Dry) For details of available STORM Graphic Series keytop character sets, please request the legend tile character library, document ref. GFX-LEG1-01 Overall Dimensions pplied) ingress) Sealing Gasket (Not supplied with 4000 series) Panel Cut-out Details for Under Panel Mounting 25.50 (4Key) 64.00 (12 Key) 83.00 (16 Key) 82.50 (4 Key) 83.00 (12 & 16 Key) R 3.75 74.00 (12 Key) 93.00 (16 Key) 93.00 (4, 12 & 16 Key) h Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
