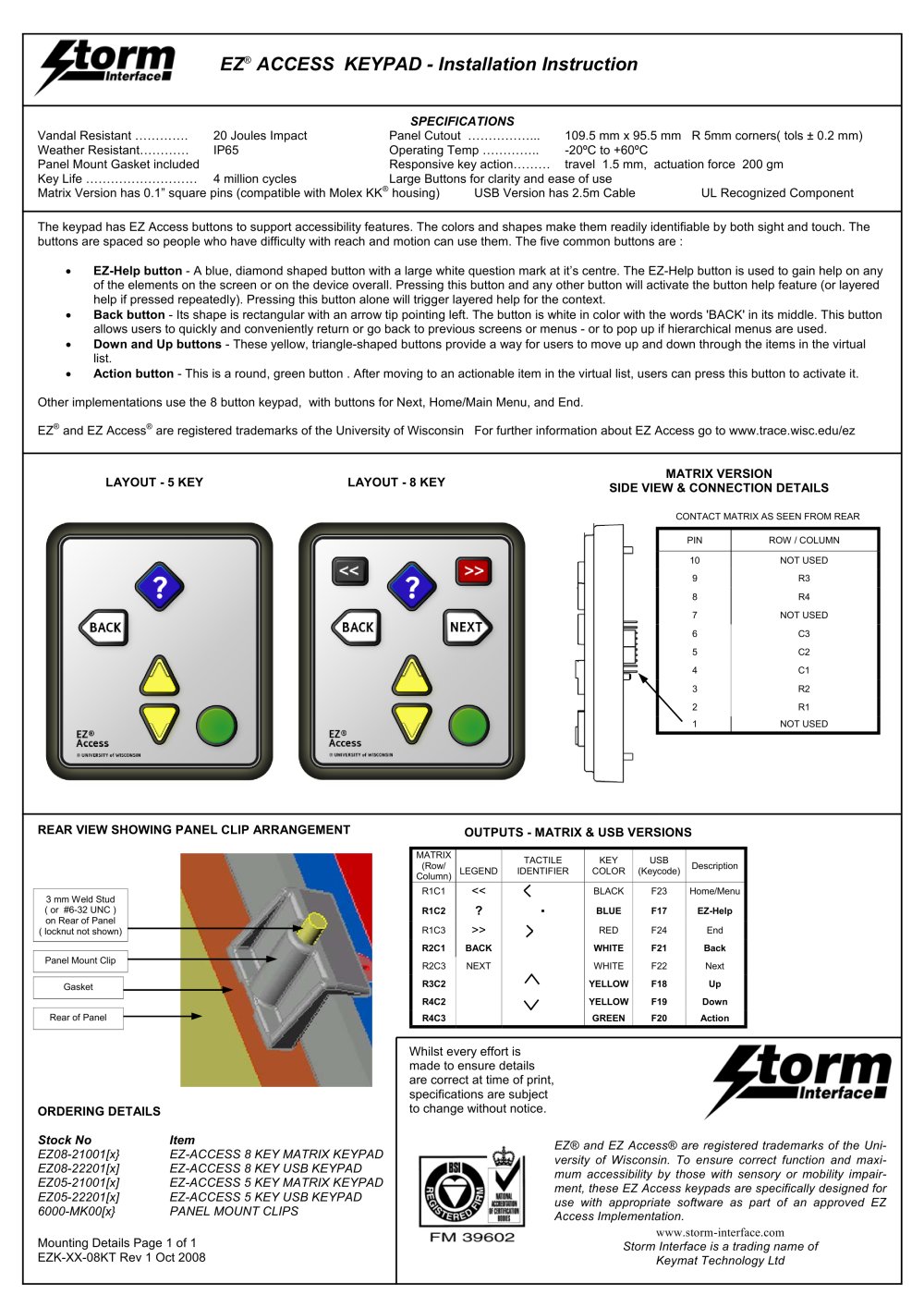

Mounting Details Page 1 of 1 EZK-XX-08KT Rev 1 Oct 2008 EZ® and EZ Access® are registered trademarks of the University of Wisconsin. To ensure correct function and maximum accessibility by those with sensory or mobility impairment, these EZ Access keypads are specifically designed for use with appropriate software as part of an approved EZ Access Implementation. www.storm-interface.com Storm Interface is a trading name of Keymat Technology Ltd EZ® ACCESS KEYPAD - Installation Instruction ORDERING DETAILS Stock No Item EZ08-21001[x} EZ-ACCESS 8 KEY MATRIX KEYPAD EZ08-22201[x] EZ-ACCESS 8 KEY USB KEYPAD EZ05-21001[x] EZ-ACCESS 5 KEY MATRIX KEYPAD EZ05-22201[x] EZ-ACCESS 5 KEY USB KEYPAD 6000-MK00[x} PANEL MOUNT CLIPS Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. OUTPUTS - MATRIX & USB VERSIONS MATRIX (Row/ Column) LEGEND R1C1 <> R2C1 BACK R2C3 NEXT R3C2 R4C2 R4C3 KEY COLOR BLACK BLUE RED WHITE WHITE YELLOW YELLOW GREEN Description Home/Menu EZ-Help End Back Next Up Down Action USB (Keycode) F23 F17 F24 F21 F22 F18 F19 F20 TACTILE IDENTIFIER · LAYOUT - 5 KEY LAYOUT - 8 KEY MATRIX VERSION SIDE VIEW & CONNECTION DETAILS SPECIFICATIONS Vandal Resistant …………. 20 Joules Impact Panel Cutout ……………... 109.5 mm x 95.5 mm R 5mm corners( tols ± 0.2 mm) Weather Resistant………… IP65 Operating Temp ………….. -20ºC to +60ºC Panel Mount Gasket included Responsive key action……… travel 1.5 mm, actuation force 200 gm Key Life ……………………… 4 million cycles Large Buttons for clarity and ease of use Matrix Version has 0.1” square pins (compatible with Molex KK® housing) USB Version has 2.5m Cable UL Recognized Component Gasket Rear of Panel Panel Mount Clip 3 mm Weld Stud ( or #6-32 UNC ) on Rear of Panel ( locknut not shown) REAR VIEW SHOWING PANEL CLIP ARRANGEMENT The keypad has EZ Access buttons to support accessibility features. The colors and shapes make them readily identifiable by both sight and touch. The buttons are spaced so people who have difficulty with reach and motion can use them. The five common buttons are : • EZ-Help button - A blue, diamond shaped button with a large white question mark at it’s centre. The EZ-Help button is used to gain help on any of the elements on the screen or on the device overall. Pressing this button and any other button will activate the button help feature (or layered help if pressed repeatedly). Pressing this button alone will trigger layered help for the context. • Back button - Its shape is rectangular with an arrow tip pointing left. The button is white in color with the words 'BACK' in its middle. This button allows users to quickly and conveniently return or go back to previous screens or menus - or to pop up if hierarchical menus are used. • Down and Up buttons - These yellow, triangle-shaped buttons provide a way for users to move up and down through the items in the virtual list. • Action button - This is a round, green button . After moving to an actionable item in the virtual list, users can press this button to activate it. Other implementations use the 8 button keypad, with buttons for Next, Home/Main Menu, and End. EZ® and EZ Access® are registered trademarks of the University of Wisconsin For further information about EZ Access go to www.trace.wisc.edu/ez CONTACT MATRIX AS SEEN FROM REAR PIN ROW / COLUMN 10 NOT USED 9 R3 8 R4 7 NOT USED 6 C3 5 C2 4 C1 3 R2 2 R1 1 NOT USED
