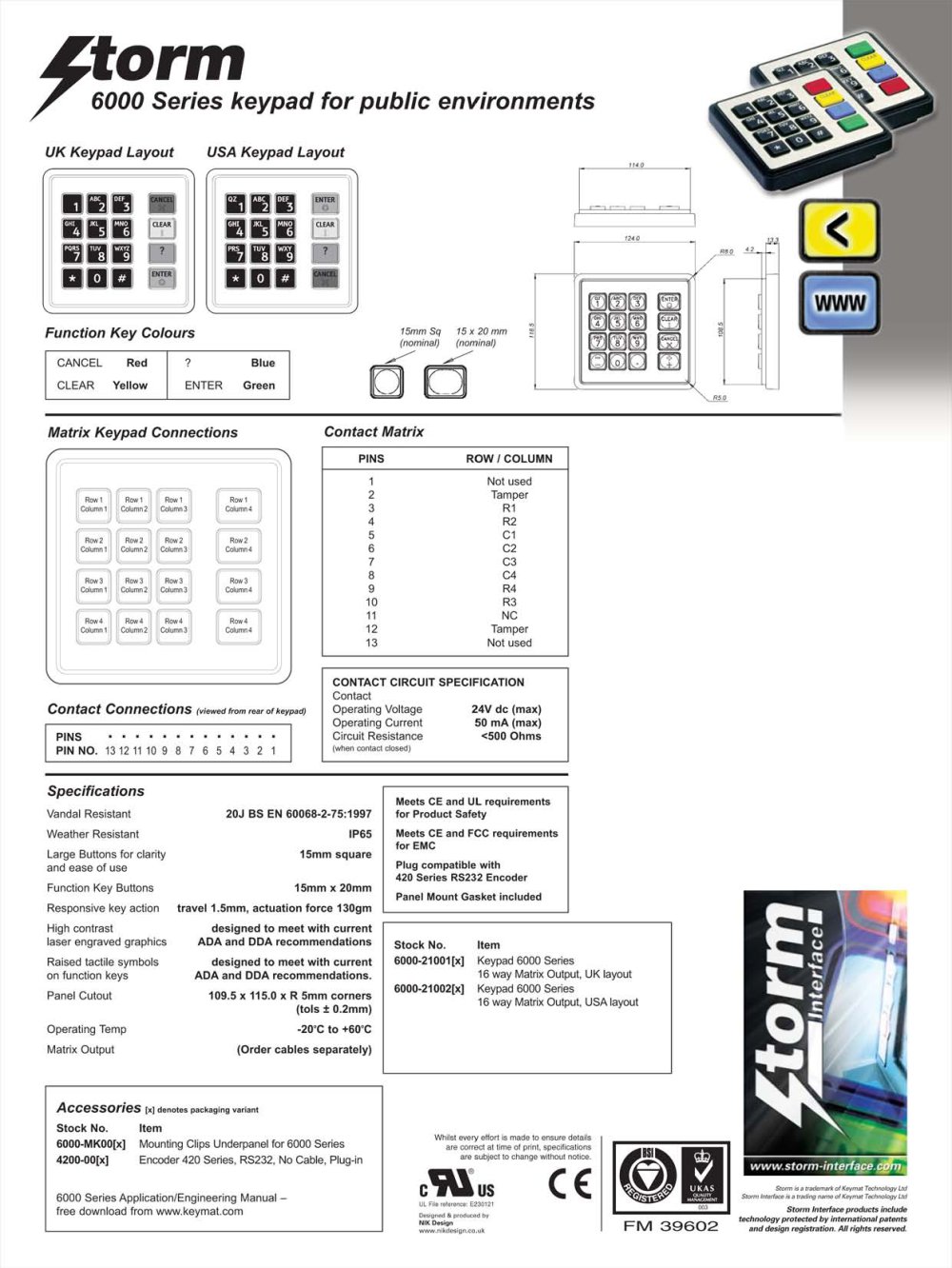

6000 Series keypad for public environments UK Keypad Layout Function Key Colours Matrix Keypad Connections Row 1 Column 1 Row 1 Column 2 Row 1 Column 3 Row 1 Column 4 Row 2 Column 1 Row 2 Column 2 Row 2 Column 3 Row 2 Column 4 Row 3 Column 1 Row 3 Column 2 Row 3 Column 3 Row 3 Column 4 Row 4 Column 1 Row 4 Column 2 Row 4 Column 3 Row 4 Column 4 Contact Connections (viewed from rear of keypad) PINS . . . . . . . . . . . . . PIN NO. 13121110 9 8 7 6 5 4 3 2 1 Contact Matrix PINS ROW / COLUMN 1 Not used 2 Tamper 3 R1 4 R2 5 C1 6 C2 7 C3 8 C4 9 R4 10 R3 11 NC 12 Tamper 13 Not used CONTACT CIRCUIT SPECIFICATION Contact Operating Voltage 24V dc (max) Operating Current 50 mA (max) Circuit Resistance <500 Ohms (when contact closed) PS2 / USB Keypad Code Tables USA Keypad Layout Alternative Layout UK Layout USA layout Row / PC / AT USB PC / AT USB Column Code Key Code Key (Code Code (Code Code Set 2) Set 2) R1C1 69 59 69 59 R1C2 72 5A 72 5A R1C3 7A 5B 7A 5B R1C4 76 29 5A 28 R2C1 6B 5C 6B 5C R2C2 73 5D 73 5D R2C3 74 5E 74 5E R2C4 66 2A 66 2A R3C1 6C 5F 6C 5F R3C2 75 60 75 60 R3C3 7D 61 7D 61 R3C4 05 3A 05 3A R4C1 7C 55 7C 55 R4C2 70 62 70 62 R4C3 5D 31 12, 26 E1, 20 R4C4 5A 28 76 29 Anti-Tamper Open Circuit Not used CANCEL Red CLEAR Yellow ? Blue ENTER Green Specifications Vandal Resistant 20J BS EN 60068-2-75:1997 Weather Resistant IP65 Large Buttons for clarity 15mm square and ease of use Function Key Buttons 15mm x 20mm Responsive key action travel 1.5mm, actuation force 130gm High contrast designed to meet with current laser engraved graphics ADA and DDA recommendations Raised tactile symbols designed to meet with current on function keys ADA and DDA recommendations. Panel Cutout 109.5 x 115.0 x R 5mm corners (tols ± 0.2mm) Operating Temp -20oC to +60oC Matrix Output (Order cables separately) or user selectable PS2/USB Accessories [x] denotes packaging variant Stock No. Item 6000-MK00[x] Mounting Clips Underpanel for 6000 Series 1200-00100[x] Cable, 2.5m, PS/2 to 5 way Molex 1200-00200[x] Cable, 2.5m, USB to 5 way Molex 4200-00[x] Encoder 420 Series, RS232, No Cable, Plug-in 6000 Series Application/Engineering Manual – free download from www.keymat.com 15mm Sq (nominal) 15 x 20 mm (nominal) FM 39602 003 6000-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. UL File reference: E230121 Designed & produced by NIK Design www.nikdesign.co.uk Meets CE and UL requirements for Product Safety Meets CE and FCC requirements for EMC Plug compatible with 420 Series RS232 Encoder Panel Mount Gasket included Stock No. Item 6000-21001[x] Keypad 6000 Series 16 way Matrix Output, UK layout 6000-21002[x] Keypad 6000 Series 16 way Matrix Output, USA layout 6000-22001[x] Keypad 6000 Series 16 way PS2 / USB Output, UK layout 6000-22002[x] Keypad 6000 Series 16 way PS2 / USB Output, USA layout Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
