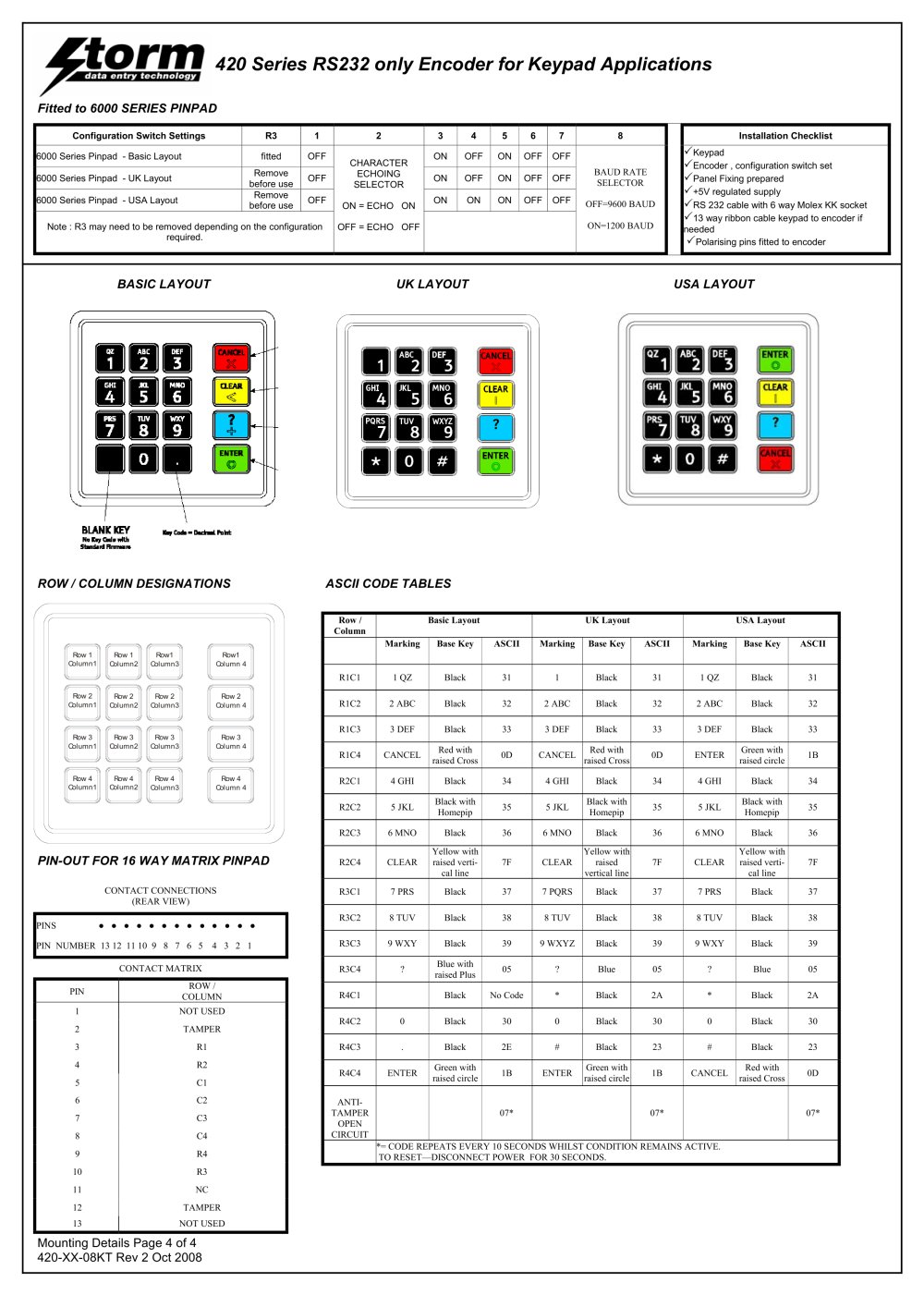

Mounting Details Page 4 of 4 420-XX-08KT Rev 2 Oct 2008 420 Series RS232 only Encoder for Keypad Applications Configuration Switch Settings R3 1 2 3 4 5 6 7 8 Installation Checklist 6000 Series Pinpad - Basic Layout fitted OFF CHARACTER ECHOING SELECTOR ON = ECHO ON OFF = ECHO OFF ON OFF ON OFF OFF BAUD RATE SELECTOR OFF=9600 BAUD ON=1200 BAUD ..Keypad ..Encoder , configuration switch set ..Panel Fixing prepared ..+5V regulated supply ..RS 232 cable with 6 way Molex KK socket ..13 way ribbon cable keypad to encoder if needed ..Polarising pins fitted to encoder 6000 Series Pinpad - UK Layout Remove before use OFF ON OFF ON OFF OFF 6000 Series Pinpad - USA Layout Remove before use OFF ON ON ON OFF OFF Note : R3 may need to be removed depending on the configuration required. Fitted to 6000 SERIES PINPAD Row / Column Basic Layout UK Layout Marking Base Key ASCII Marking Base Key ASCII Marking Base Key ASCII R1C1 1 QZ Black 31 1 Black 31 1 QZ Black 31 R1C2 2 ABC Black 32 2 ABC Black 32 2 ABC Black 32 R1C3 3 DEF Black 33 3 DEF Black 33 3 DEF Black 33 R1C4 CANCEL Red with raised Cross 0D CANCEL Red with raised Cross 0D ENTER Green with raised circle 1B R2C1 4 GHI Black 34 4 GHI Black 34 4 GHI Black 34 R2C2 5 JKL Black with Homepip 35 5 JKL Black with Homepip 35 5 JKL Black with Homepip 35 R2C3 6 MNO Black 36 6 MNO Black 36 6 MNO Black 36 R2C4 CLEAR Yellow with raised vertical line 7F CLEAR Yellow with raised vertical line 7F CLEAR Yellow with raised vertical line 7F R3C1 7 PRS Black 37 7 PQRS Black 37 7 PRS Black 37 R3C2 8 TUV Black 38 8 TUV Black 38 8 TUV Black 38 R3C3 9 WXY Black 39 9 WXYZ Black 39 9 WXY Black 39 R3C4 ? Blue with raised Plus 05 ? Blue 05 ? Blue 05 R4C1 Black No Code * Black 2A * Black 2A R4C2 0 Black 30 0 Black 30 0 Black 30 R4C3 . Black 2E # Black 23 # Black 23 R4C4 ENTER Green with raised circle 1B ENTER Green with raised circle 1B CANCEL Red with raised Cross 0D ANTITAMPER OPEN CIRCUIT 07* 07* 07* *= CODE REPEATS EVERY 10 SECONDS WHILST CONDITION REMAINS ACTIVE. TO RESET—DISCONNECT POWER FOR 30 SECONDS. USA Layout BASIC LAYOUT UK LAYOUT USA LAYOUT CONTACT CONNECTIONS (REAR VIEW) PINS �œ �œ �œ �œ �œ �œ �œ �œ �œ �œ �œ �œ �œ CONTACT MATRIX PIN ROW / COLUMN 1 NOT USED 2 TAMPER 3 R1 4 R2 5 C1 6 C2 7 C3 8 C4 9 R4 10 R3 11 NC 12 TAMPER 13 NOT USED PIN NUMBER 13 12 11 10 9 8 7 6 5 4 3 2 1 Row 1 Column1 Row 2 Column1 Row 3 Column1 Row 4 Column1 Row 1 Column2 Row 2 Column2 Row 3 Column2 Row 4 Column2 Row1 Column3 Row1 Column 4 Row 2 Column3 Row 2 Column 4 Row 3 Column3 Row 3 Column 4 Row 4 Column3 Row 4 Column 4 ROW / COLUMN DESIGNATIONS ASCII CODE TABLES PIN-OUT FOR 16 WAY MATRIX PINPAD
