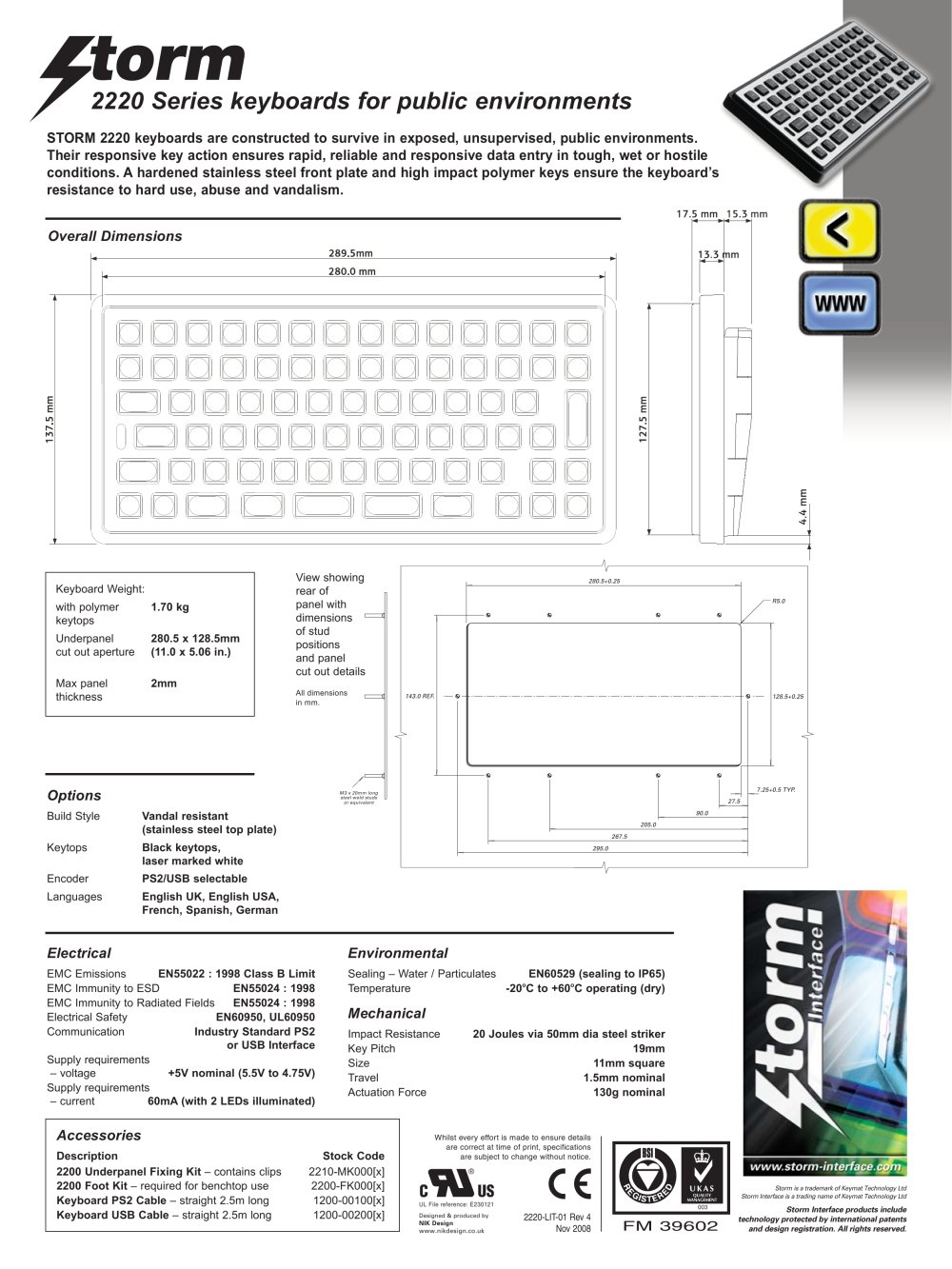

2220 Series keyboards for public environments Overall Dimensions Options Build Style Vandal resistant (stainless steel top plate) Keytops Black keytops, laser marked white Encoder PS2/USB selectable Languages English UK, English USA, French, Spanish, German Accessories Description Stock Code 2200 Underpanel Fixing Kit – contains clips 2210-MK000[x] 2200 Foot Kit – required for benchtop use 2200-FK000[x] Keyboard PS2 Cable – straight 2.5m long 1200-00100[x] Keyboard USB Cable – straight 2.5m long 1200-00200[x] STORM 2220 keyboards are constructed to survive in exposed, unsupervised, public environments. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and high impact polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. Electrical EMC Emissions EN55022 : 1998 Class B Limit EMC Immunity to ESD EN55024 : 1998 EMC Immunity to Radiated Fields EN55024 : 1998 Electrical Safety EN60950, UL60950 Communication Industry Standard PS2 or USB Interface Supply requirements – voltage +5V nominal (5.5V to 4.75V) Supply requirements – current 60mA (with 2 LEDs illuminated) Mechanical Impact Resistance 20 Joules via 50mm dia steel striker Key Pitch 19mm Size 11mm square Travel 1.5mm nominal Actuation Force 130g nominal Environmental Sealing – Water / Particulates EN60529 (sealing to IP65) Temperature -20oC to +60oC operating (dry) Keyboard Weight: with polymer 1.70 kg keytops Underpanel 280.5 x 128.5mm cut out aperture (11.0 x 5.06 in.) Max panel 2mm thickness View showing rear of panel with dimensions of stud positions and panel cut out details All dimensions in mm. 205.0 267.5 295.0 90.0 27.5 280.5+0.25 143.0 REF. 128.5+0.25 R5.0 7.25+0.5 TYP. M3 x 20mm long steel weld studs or equivalent FM 39602 003 2220-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. UL File reference: E230121 Designed & produced by NIK Design www.nikdesign.co.uk Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
