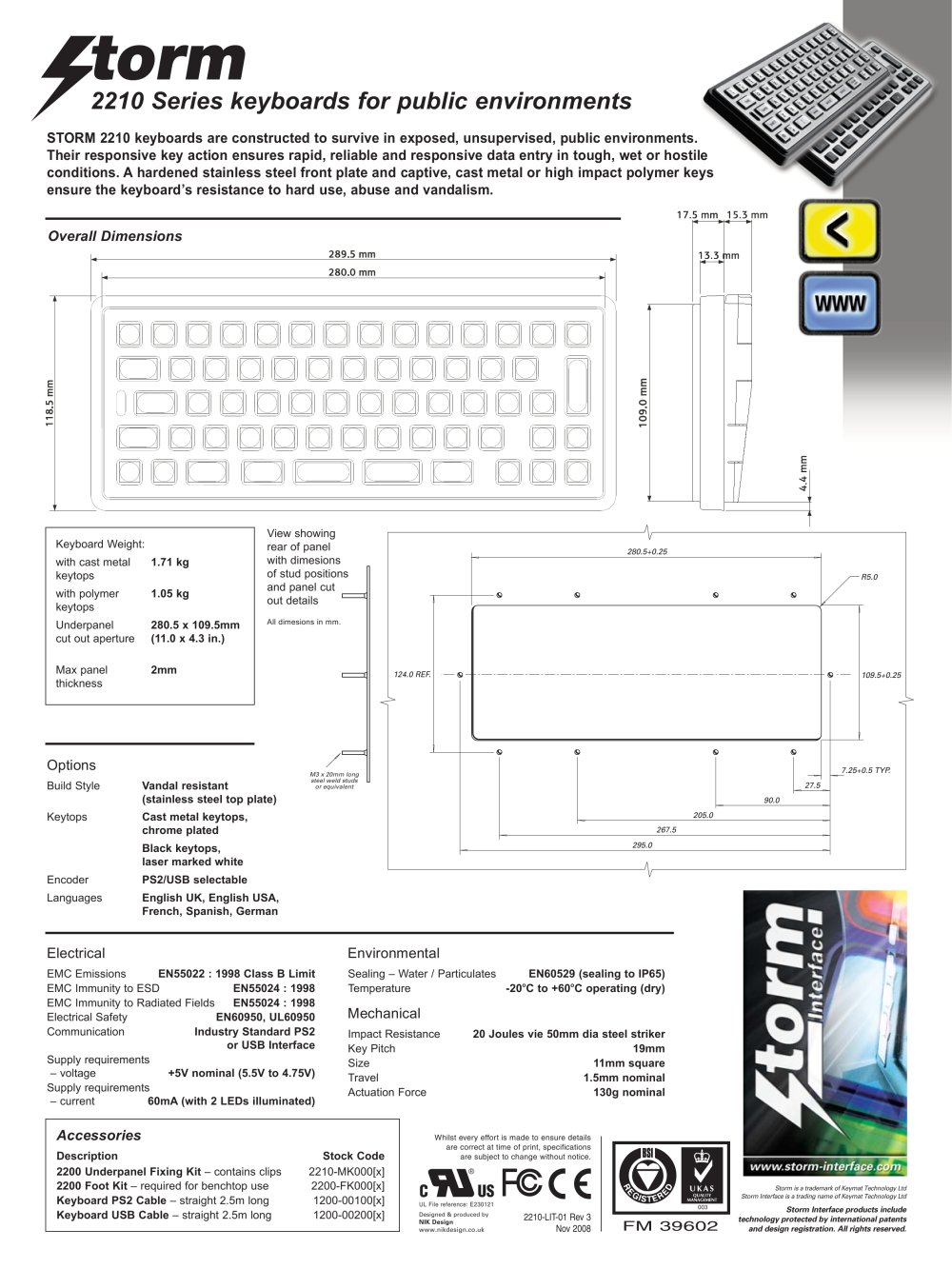

2210 Series keyboards for public environments Overall Dimensions Options Build Style Vandal resistant (stainless steel top plate) Keytops Cast metal keytops, chrome plated Black keytops, laser marked white Encoder PS2/USB selectable Languages English UK, English USA, French, Spanish, German Accessories Description Stock Code 2200 Underpanel Fixing Kit – contains clips 2210-MK000[x] 2200 Foot Kit – required for benchtop use 2200-FK000[x] Keyboard PS2 Cable – straight 2.5m long 1200-00100[x] Keyboard USB Cable – straight 2.5m long 1200-00200[x] FM 39602 003 2210-LIT-01 Rev 3 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. STORM 2210 keyboards are constructed to survive in exposed, unsupervised, public environments. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and captive, cast metal or high impact polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. Electrical EMC Emissions EN55022 : 1998 Class B Limit EMC Immunity to ESD EN55024 : 1998 EMC Immunity to Radiated Fields EN55024 : 1998 Electrical Safety EN60950, UL60950 Communication Industry Standard PS2 or USB Interface Supply requirements – voltage +5V nominal (5.5V to 4.75V) Supply requirements – current 60mA (with 2 LEDs illuminated) Mechanical Impact Resistance 20 Joules vie 50mm dia steel striker Key Pitch 19mm Size 11mm square Travel 1.5mm nominal Actuation Force 130g nominal Environmental Sealing – Water / Particulates EN60529 (sealing to IP65) Temperature -20oC to +60oC operating (dry) 205.0 267.5 295.0 90.0 27.5 280.5+0.25 124.0 REF. 109.5+0.25 R5.0 7.25+0.5 TYP. M3 x 20mm long steel weld studs or equivalent Keyboard Weight: with cast metal 1.71 kg keytops with polymer 1.05 kg keytops Underpanel 280.5 x 109.5mm cut out aperture (11.0 x 4.3 in.) Max panel 2mm thickness UL File reference: E230121 Designed & produced by NIK Design www.nikdesign.co.uk View showing rear of panel with dimesions of stud positions and panel cut out details All dimesions in mm. Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
