2200 Series - Rugged Trackballs - Storm Keymat Technology - #2

Text version of the page

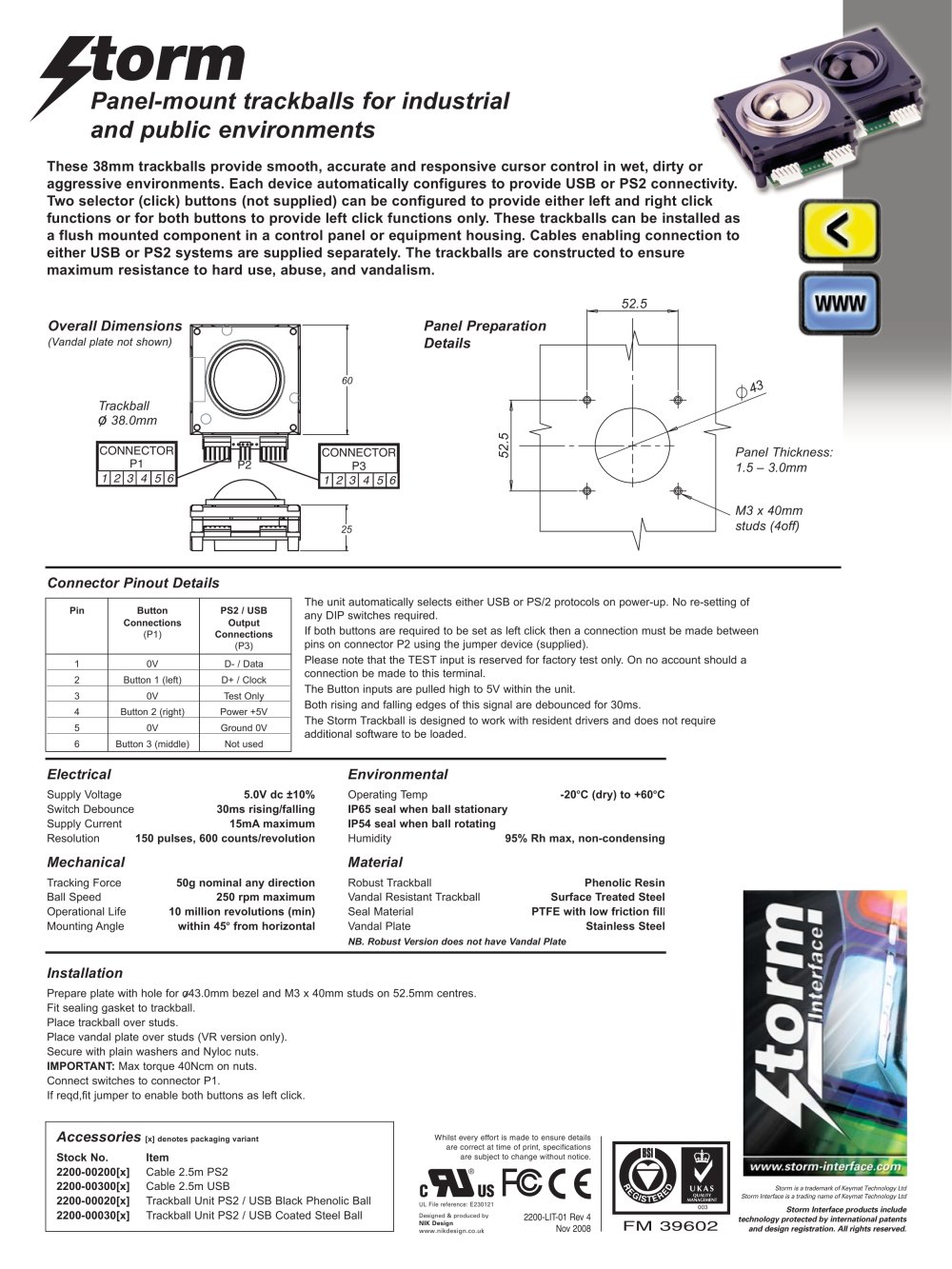

Panel-mount trackballs for industrial and public environments 25 60 Connector Pinout Details Pin Button PS2 / USB Connections Output (P1) Connections (P3) 1 0V D- / Data 2 Button 1 (left) D+ / Clock 3 0V Test Only 4 Button 2 (right) Power +5V 5 0V Ground 0V 6 Button 3 (middle) Not used Electrical Supply Voltage 5.0V dc ±10% Switch Debounce 30ms rising/falling Supply Current 15mA maximum Resolution 150 pulses, 600 counts/revolution Mechanical Tracking Force 50g nominal any direction Ball Speed 250 rpm maximum Operational Life 10 million revolutions (min) Mounting Angle within 45o from horizontal Installation Prepare plate with hole for o43.0mm bezel and M3 x 40mm studs on 52.5mm centres. Fit sealing gasket to trackball. Place trackball over studs. Place vandal plate over studs (VR version only). Secure with plain washers and Nyloc nuts. IMPORTANT: Max torque 40Ncm on nuts. Connect switches to connector P1. If reqd,fit jumper to enable both buttons as left click. Material Robust Trackball Phenolic Resin Vandal Resistant Trackball Surface Treated Steel Seal Material PTFE with low friction fill Vandal Plate Stainless Steel NB. Robust Version does not have Vandal Plate Environmental Operating Temp -20oC (dry) to +60oC IP65 seal when ball stationary IP54 seal when ball rotating Humidity 95% Rh max, non-condensing Accessories [x] denotes packaging variant Stock No. Item 2200-00200[x] Cable 2.5m PS2 2200-00300[x] Cable 2.5m USB 2200-00020[x] Trackball Unit PS2 / USB Black Phenolic Ball 2200-00030[x] Trackball Unit PS2 / USB Coated Steel Ball Overall Dimensions (Vandal plate not shown) 43 52.5 52.5 Panel Preparation Details Panel Thickness: 1.5 – 3.0mm Trackball o 38.0mm M3 x 40mm studs (4off) The unit automatically selects either USB or PS/2 protocols on power-up. No re-setting of any DIP switches required. If both buttons are required to be set as left click then a connection must be made between pins on connector P2 using the jumper device (supplied). Please note that the TEST input is reserved for factory test only. On no account should a connection be made to this terminal. The Button inputs are pulled high to 5V within the unit. Both rising and falling edges of this signal are debounced for 30ms. The Storm Trackball is designed to work with resident drivers and does not require additional software to be loaded. These 38mm trackballs provide smooth, accurate and responsive cursor control in wet, dirty or aggressive environments. Each device automatically configures to provide USB or PS2 connectivity. Two selector (click) buttons (not supplied) can be configured to provide either left and right click functions or for both buttons to provide left click functions only. These trackballs can be installed as a flush mounted component in a control panel or equipment housing. Cables enabling connection to either USB or PS2 systems are supplied separately. The trackballs are constructed to ensure maximum resistance to hard use, abuse, and vandalism. 1 2 3 4 5 6 CONNECTOR P1 1 2 3 4 5 6 CONNECTOR P2 P3 FM 39602 003 2200-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. UL File reference: E230121 Designed & produced by NIK Design www.nikdesign.co.uk Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
