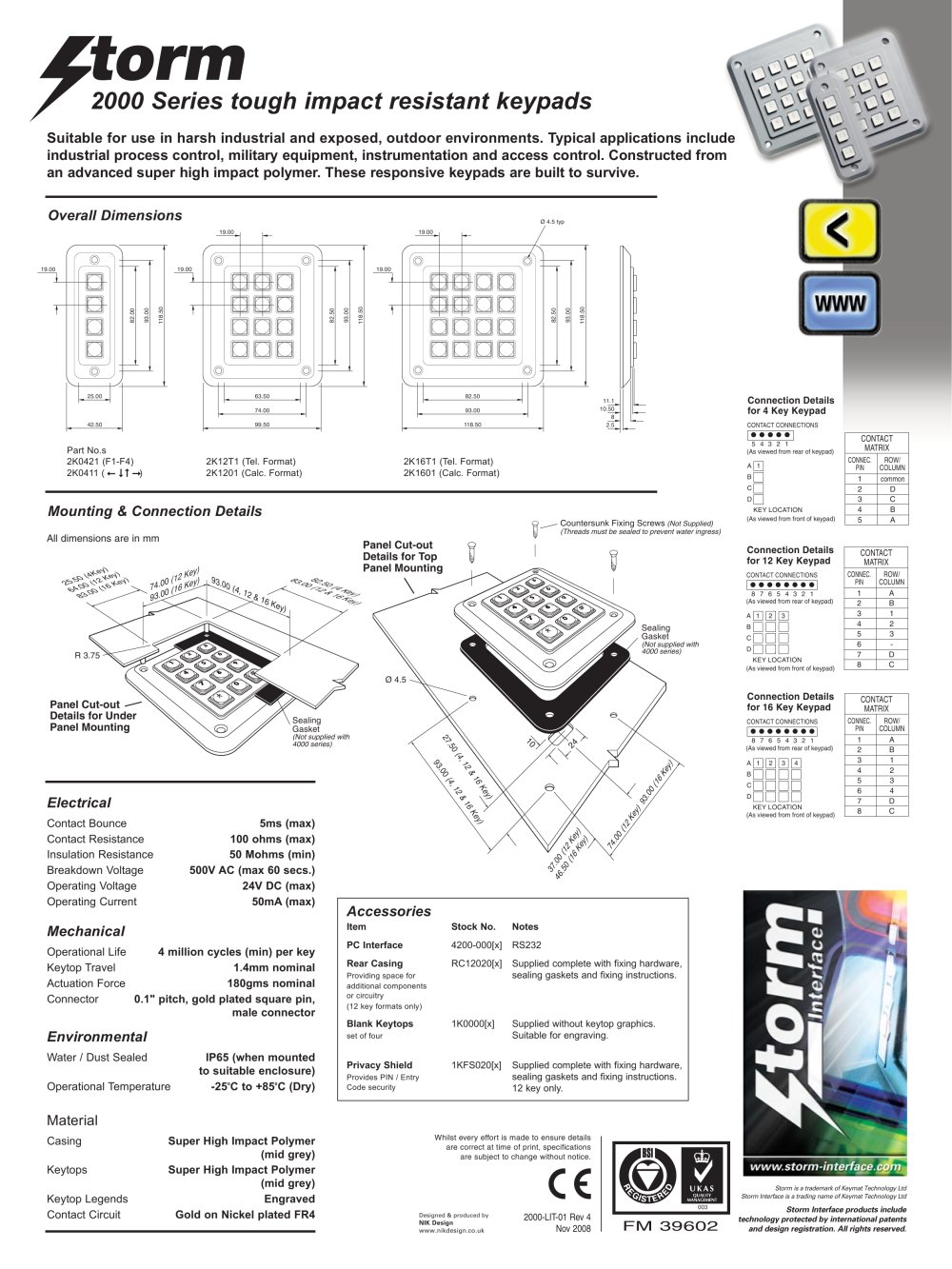

2000 Series tough impact resistant keypads 118.50 118.50 19.00 19.00 82.50 82.50 93.00 93.00 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 42.50 118.50 82.00 19.00 25.00 93.00 Ø 4.5 typ 10.50 2.5 8 11.1 • • • • • 5 4 3 2 1 COMMON A 1 B C D KEY LOCATION CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 common D C B A CONNEC. PIN ROW/ COLUMN CONTACT MATRIX 37.00 (12 Ke 46.50 (16 A 1 2 3 B C D KEY LOCATION CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 12 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 6 7 8 A B 1 2 3 - D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX A 1 2 3 4 B C D KEY LOCATION 1 2 3 4 5 6 7 8 A B 1 2 3 4 D C CONNEC. PIN ROW/ COLUMN CONTACT MATRIX CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 16 Key Keypad (As viewed from front of keypad) Suitable for use in harsh industrial and exposed, outdoor environments. Typical applications include industrial process control, military equipment, instrumentation and access control. Constructed from an advanced super high impact polymer. These responsive keypads are built to survive. Overall Dimensions Mounting & Connection Details CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 Connection Detai for 12 Key Keypad • • • • • 5 4 3 2 1 CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad CONTACT MATRIX 10 Panel Cut-out Details for Top Panel Mounting 27.50 (4, 12 & 16 Key) 37.00 (12 Key) 46.50 (16 Key) Countersunk Fixing Screws (Not Supplied) (Threads must be sealed to prevent water ingress) Ø 4.5 93.00 (4, 12 & 16 Key) 74.00 (12 Key) 93.00 (16 Key) 24 Pa De Pa Sealing Gasket (Not supplied with 4000 series) pplied)A ll dimensions are in mm ingress) Sealing Gasket (Not supplied with 4000 series) Panel Cut-out Details for Under Panel Mounting 25.50 (4Key) 64.00 (12 Key) 83.00 (16 Key) 82.50 (4 Key) 83.00 (12 & 16 Key) R 3.75 74.00 (12 Key) 93.00 (16 Key) 93.00 (4, 12 & 16 Key) h Part No.s 2K0421 (F1-F4) 2K0411 ( ) 2K12T1 (Tel. Format) 2K1201 (Calc. Format) 2K16T1 (Tel. Format) 2K1601 (Calc. Format) FM 39602 003 2000-LIT-01 Rev 4 Nov 2008 Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice. Designed & produced by NIK Design www.nikdesign.co.uk Electrical Contact Bounce 5ms (max) Contact Resistance 100 ohms (max) Insulation Resistance 50 Mohms (min) Breakdown Voltage 500V AC (max 60 secs.) Operating Voltage 24V DC (max) Operating Current 50mA (max) Mechanical Operational Life 4 million cycles (min) per key Keytop Travel 1.4mm nominal Actuation Force 180gms nominal Connector 0.1" pitch, gold plated square pin, male connector Material Casing Super High Impact Polymer (mid grey) Keytops Super High Impact Polymer (mid grey) Keytop Legends Engraved Contact Circuit Gold on Nickel plated FR4 Environmental Water / Dust Sealed IP65 (when mounted to suitable enclosure) Operational Temperature -25oC to +85oC (Dry) Accessories Item Stock No. Notes PC Interface 4200-000[x] RS232 Rear Casing RC12020[x] Supplied complete with fixing hardware, Providing space for sealing gaskets and fixing instructions. additional components or circuitry (12 key formats only) Blank Keytops 1K0000[x] Supplied without keytop graphics. set of four Suitable for engraving. Privacy Shield 1KFS020[x] Supplied complete with fixing hardware, Provides PIN / Entry sealing gaskets and fixing instructions. Code security 12 key only. Storm is a trademark of Keymat Technology Ltd Storm Interface is a trading name of Keymat Technology Ltd Storm Interface products include technology protected by international patents and design registration. All rights reserved.
