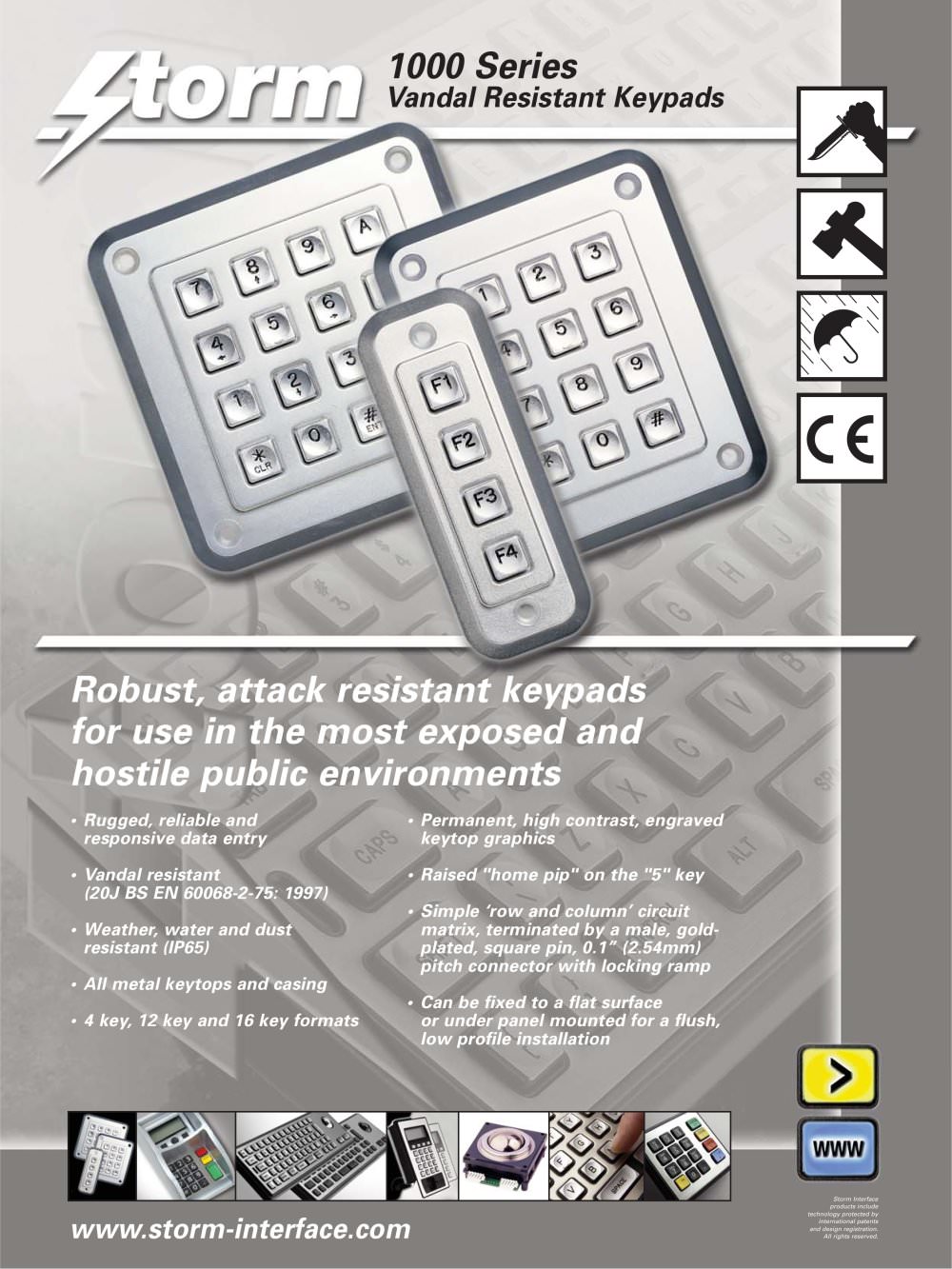

Robust, attack resistant keypads for use in the most exposed and hostile public environments • Rugged, reliable and responsive data entry • Vandal resistant (20J BS EN 60068-2-75: 1997) • Weather, water and dust resistant (IP65) • All metal keytops and casing • 4 key, 12 key and 16 key formats • Permanent, high contrast, engraved keytop graphics • Raised "home pip" on the "5" key • Simple ‘row and column’ circuit matrix, terminated by a male, goldplated, square pin, 0.1” (2.54mm) pitch connector with locking ramp • Can be fixed to a flat surface or under panel mounted for a flush, low profile installation 1000 Series Vandal Resistant Keypads www.storm-interface.com Storm Interface products include technology protected by international patents and design registration. All rights reserved.

1000 Series vandal resistant keypads 118.50 118.50 19.00 19.00 82.50 82.50 93.00 93.00 99.50 118.50 63.50 82.50 19.00 19.00 74.00 93.00 42.50 118.50 82.00 19.00 25.00 93.00 Ø 4.5 typ 10.50 2.5 8 11.1 • • • • • 5 4 3 2 1 COMMON A 1 B C D KEY LOCATION CONTACT CONNECTIONS (As viewed from rear of keypad) Connection Details for 4 Key Keypad (As viewed from front of keypad) 1 2 3 4 5 common D C B A CONNEC. PIN ROW/ COLUMN CONTACT MATRIX 37.00 (12 Ke 46.50 (16 A 1 2 3 B C D KEY LOCATION CONTACT CONNECTIONS • • • • • • • • 8 7 6 5 4 3 2 1 (As viewed from rear of keypad) Connection Details for 12 Key...
