STV0986 5 Megapixel mobile imaging processor
4Pages

{{requestButtons}}

Catalog excerpts

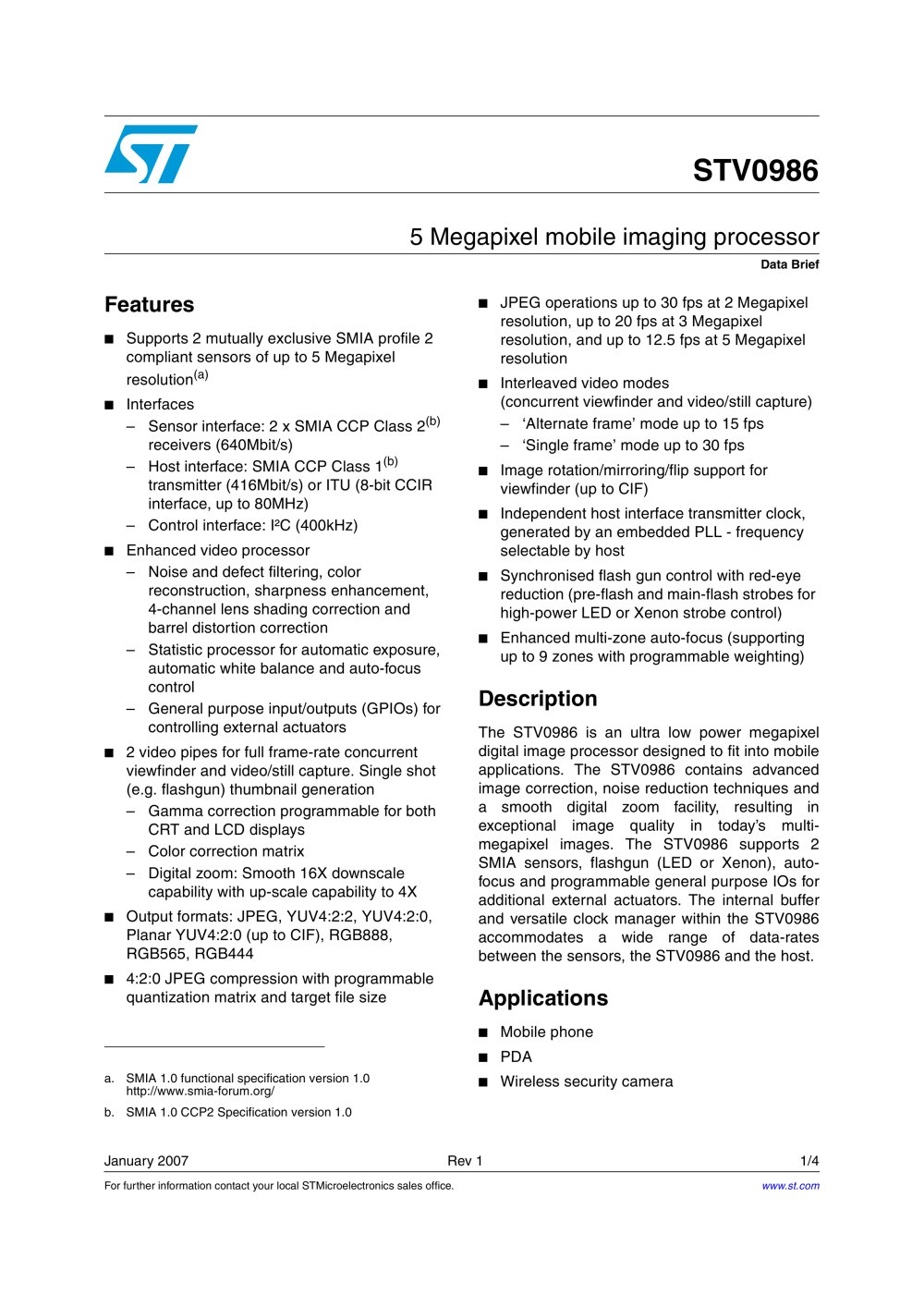

STV0986 5 Megapixel mobile imaging processor - 1

Data Brief For further information contact your local STMicroelectronics sales office. January 2007 Rev 1 1/4 4 STV0986 5 Megapixel mobile imaging processor Features ¡ Supports 2 mutually exclusive SMIA profile 2 compliant sensors of up to 5 Megapixel resolution(a) ¡ Interfaces – Sensor interface: 2 x SMIA CCP Class 2(b) receivers (640Mbit/s) – Host interface: SMIA CCP Class 1(b) transmitter (416Mbit/s) or ITU (8-bit CCIR interface, up to 80MHz) – Control interface: I²C (400kHz) ¡ Enhanced video processor – Noise and defect filtering, color reconstruction, sharpness enhancement, 4-channel lens shading correction and barrel distortion correction – Statistic processor for automatic exposure, automatic white balance and auto-focus control – General purpose input/outputs (GPIOs) for controlling external actuators ¡ 2 video pipes for full frame-rate concurrent viewfinder and video/still capture. Single shot (e.g. flashgun) thumbnail generation – Gamma correction programmable for both CRT and LCD displays – Color correction matrix – Digital zoom: Smooth 16X downscale capability with up-scale capability to 4X ¡ Output formats: JPEG, YUV4:2:2, YUV4:2:0, Planar YUV4:2:0 (up to CIF), RGB888, RGB565, RGB444 ¡ 4:2:0 JPEG compression with programmable quantization matrix and target file size ¡ JPEG operations up to 30 fps at 2 Megapixel resolution, up to 20 fps at 3 Megapixel resolution, and up to 12.5 fps at 5 Megapixel resolution ¡ Interleaved video modes (concurrent viewfinder and video/still capture) – ‘Alternate frame’ mode up to 15 fps – ‘Single frame’ mode up to 30 fps ¡ Image rotation/mirroring/flip support for viewfinder (up to CIF) ¡ Independent host interface transmitter clock, generated by an embedded PLL - frequency selectable by host ¡ Synchronised flash gun control with red-eye reduction (pre-flash and main-flash strobes for high-power LED or Xenon strobe control) ¡ Enhanced multi-zone auto-focus (supporting up to 9 zones with programmable weighting) Description The STV0986 is an ultra low power megapixel digital image processor designed to fit into mobile applications. The STV0986 contains advanced image correction, noise reduction techniques and a smooth digital zoom facility, resulting in exceptional image quality in today’s multimegapixel images. The STV0986 supports 2 SMIA sensors, flashgun (LED or Xenon), autofocus and programmable general purpose IOs for additional external actuators. The internal buffer and versatile clock manager within the STV0986 accommodates a wide range of data-rates between the sensors, the STV0986 and the host. Applications ¡ Mobile phone ¡ PDA a. SMIA 1.0 functional specification version 1.0 ¡ Wireless security camera http://www.smia-forum.org/ b. SMIA 1.0 CCP2 Specification version 1.0 www.st.com

Open the catalog to page 1
STV0986 5 Megapixel mobile imaging processor - 2

Technical specifications STV0986 2/4 Technical specifications Table 1. Technical specifications Technology 90nm CMOS Sensor SMIA compliant sensors up to 5 Megapixels. Frame rate Up to 30fps: – @ 2MP JPEG + CIF RGB565 – @ VGA YUV422 – @ CIF RGB888 + QCIF YUV422 Up to 20fps @ 3MP JPEG + CIF RGB565 Up to 12.5fps – @ 5MP JPEG + CIF RGB565l Still digital zoom 16X downscale from full input resolution and up to 4X upscale Video/Viewfinder digital zoom 16X downscale from full input resolution and up to 4X upscale, with smooth zoom effect in x0.001 steps Power supplies 2.8V or 1.8V +/- 5% (I/O ring)...

Open the catalog to page 2
STV0986 5 Megapixel mobile imaging processor - 3

STV0986 Ordering information 3/4 Ordering information Revision history Figure 1. Application diagram Figure 2. Block diagram Data Baseband or Application STV0986 Processor 5.0 Megapixel Image Signal Processor Camera module 1 Camera module 2 Control Data Data Control MSCL MSDA Power management Clock & SSCL SSDA MCU code PDN RST PCLK1 PDATA1 PCLK2 PDATA2 Microprocessor Internal bus I²C master CCP2 serial receiver ITU CCP2 256KB ITU HSYNC VSYNC HCLK HDATA GPIO TDO TCK TMS TDI 1V2_OUT LDO_EN LDO_TEST LDO Voltage Regulator Test and emulation VCLK SRAM MCU RST_DIR SYSCLK transmitter GPIO...

Open the catalog to page 3
STV0986 5 Megapixel mobile imaging processor - 4

STV0986 4/4 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice,...

Open the catalog to page 4
