Catalogue excerpts

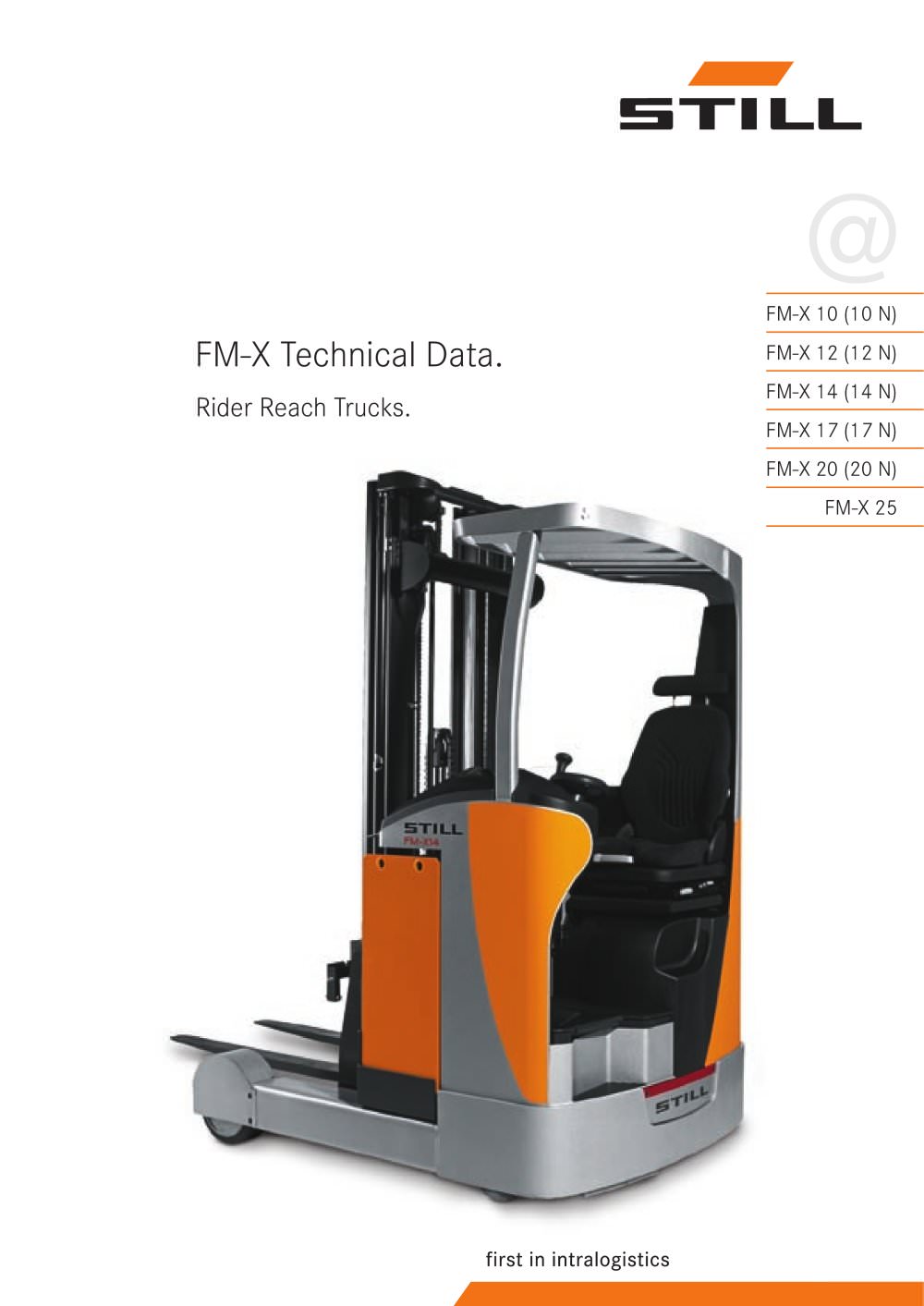

FM-X 10 (10 N) FM-X 12 (12 N) FM-X 14 (14 N) FM-X 17 (17 N) FM-X 20 (20 N) FM-X 25 FM-X Technical Data. Rider Reach Trucks. @

 Open the catalogue to page 1

2 In accordance with VDI guidelines this specification applies to the standard model only. For special masts, attachments etc. specifications may vary. Description 1.1 Manufacturer STILL STILL 1.2 Manufacturer‘s model designation FM-X 10 FM-X 12 1.3 Drive (electric, diesel, petrol, LPG) Electric Electric 1.4 Operation (hand, pedestrian, stand-on, rider seated) Seat Seat 1.5 Load capacity Q kg 1000 1200 1.6 Load centre c mm 600 600 1.8 Load distance1) x mm 239 311 1.9 Wheel base y mm 1237 1309 Weights 2.1 Tare weight incl. battery kg 2872 2889 2.3 Axle load closed fork, without load, drive side/load...

 Open the catalogue to page 2

5 Load capacities FM-X 25 Load capacity (kg) Load centre c Load capacities FM-X 20 (20 N) Load capacity (kg) Load centre c Load capacities FM-X 17 (17 N) Load capacity (kg) Load centre c Load capacities FM-X 14 (14 N) Load capacity (kg) Load centre c Load capacities FM-X 12 (12 N) Load capacity (kg) Load centre c Load capacities FM-X 10 (10 N) Load capacity (kg) Load centre c

 Open the catalogue to page 5

6 Description 1.1 Manufacturer STILL STILL STILL 1.2 Manufacturer’s model designation FM-X 10N FM-X 12N FM-X 14N 1.3 Drive (electric, diesel, petrol, LPG) Electric Electric Electric 1.4 Operation (hand, pedestrian, stand-on, rider seated) Seat Seat Seat 1.5 Load capacity/load Q kg 1000 1200 1400 1.6 Load centre c mm 600 600 600 1.8 Load distance1) x mm 149 221 266 1.9 Wheel base y mm 1237 1309 1381 Weights 2.1 Tare weight incl. battery kg 2825 2842 3127 2.3 Axle load closed fork, without load, drive side/load side kg 1650/1175 1711/1131 1839/1288 2.4 Axle load extended fork, with load, drive side/load...

 Open the catalogue to page 6

8 Driver’s compartment. - Spacious driver’s compartment with adjustable controls. The driver is always inside the contour of the vehicle for maximum safety. - Damped driver’s compartment (optional) reduces shocks from uneven floors and therefore the likelihood of back injuries. - Proportional adjustment of seat and footplate (optional), electrically controlled. Ergonomic control layout ensures an optimum all-round view regardless of the driver’s physique. - Comfortable, tilting seat with multiple adjustment to suit individual drivers, plus tilting mast, enable a good view of the load while reducing...

 Open the catalogue to page 8

9 Brake system. - Maintenance-free regenerative braking with energy recovery and high efficiency. - Maximum safety by 3-circuit brake system. Regenerative braking when releasing the accelerator pedal. When operating the brake pedal additional regenerative deceleration is activated. If the pedal is pressed further the hydraulic load wheel brake is actuated. - Electromagnetic disc brake for emergency stop and parking. Electrical equipment. - LCD display with automatic brightness adjustment. Clear, user-friendly display of all operating states. Indicator wizard for height pre-selection assists the...

 Open the catalogue to page 9

10 Standard Option FM-X 10 12 14 17 20 25 10N 12N 14N 17N 20N Driver’s space Adjustable position of the steering wheel and horizontal adjustment of the seat Comfort seat with hydraulic damping and weight adjustment Comfort tilt seat (standard for closed mast height 2600 mm and above) - - - - - Damped driver’s compartment for best comfort on uneven floors and thresholds - - - - - Heated seat Imitation leather seat with vinyl upholstering Proportional adjustment of the seat and foot plate - - - - - Ergonomic package - - - - - - - Free view mast with view optimised over head guard Joystick (hydraulic...

 Open the catalogue to page 10

FM-X 1.2 HHe 07/09 Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/FM-X Your contact @
