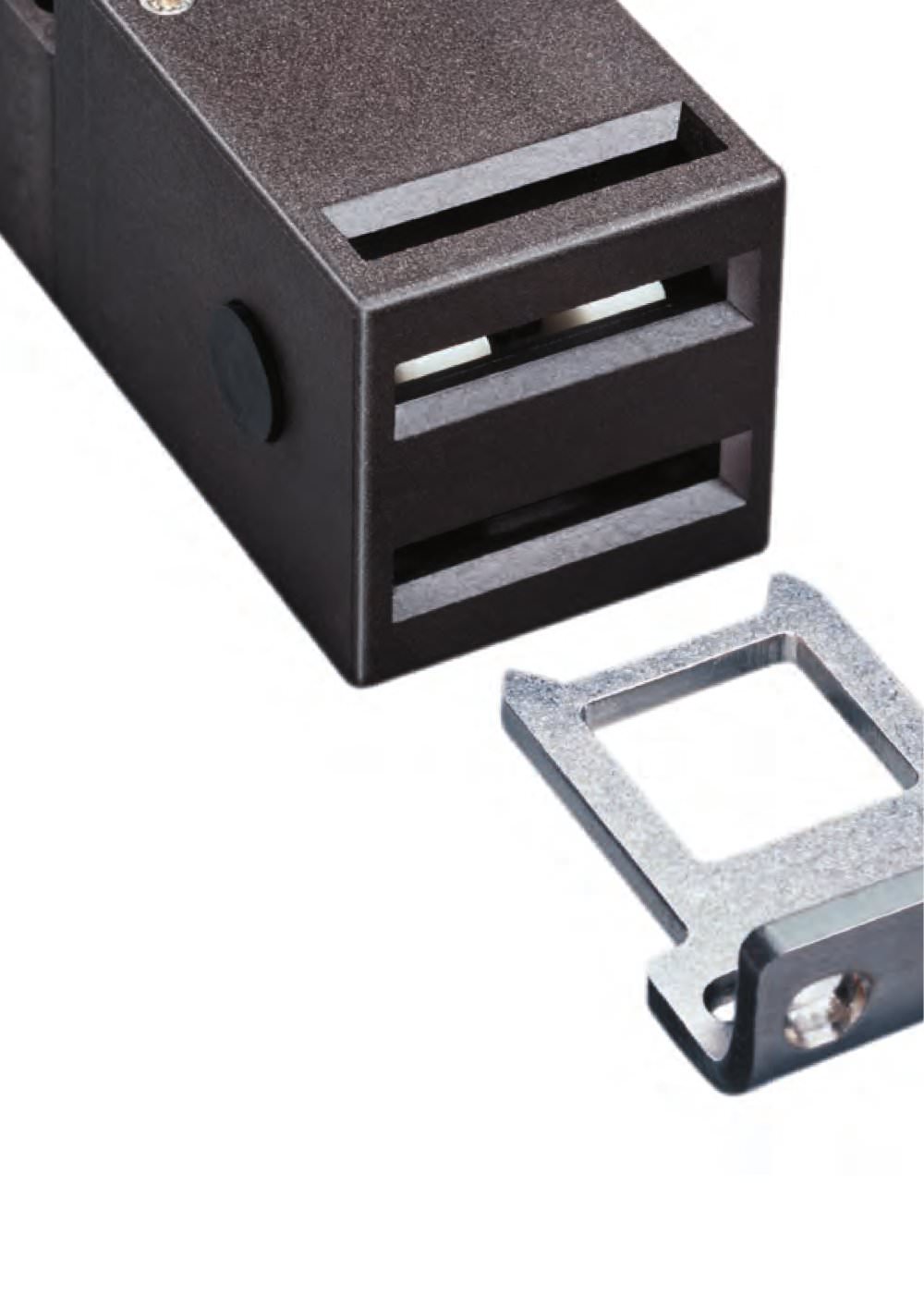

Safety switches with separate industrial actuator
// Series ST 14, actuators
Features/OptionsST 14-B1 - Rubber mounting damps vibrations on guard devices - Actuating radius on hinged guardsa =140 mm and b =1000 mm- Axial misalignment x = 30 mmST 14-B3 - Especially fit for hinged guards- Actuating radius on hinged guardsa = 50 mm- Axial misalignment x =14 mm Features/Options ST 14-B5- Rubber mounting damps vibrations on guard devices- Suitable for hinged guards - Actuating radius on hinged guardsa =140 mm and b =1000 mm- Axial misalignment x =15 mmNoteInserted position of actuator = 0 in switch travel diagram. The actuators are not included with the switches. // Straight actuator ST 14-B1
// Flexible actuator ST 14-B3
13 13 // Angled actuator ST 14-B5
// Actuating radius
- The axis of the hinge should be x mm above thetop edge of the safety switch and in the same plane - a Actuating radius to the plane of the actuator- b Actuating radius in line with the plane of theactuator- x Axial misalignment
