Position switches

//

Series ES/EM 95

Features/Options - Thermoplastic enclosure- Horizontal mounting slots- Double insulated X - Snap action with constant contact pressure up to switching point- Slow action with overlapping contacts available- Wide range of alternative actuators - Actuator heads can be repositioned by 4 x 90°- Angle of offset roller lever can be adjusted in 10°steps- 1 cable entry M20 x 1.5- Good resistance to oil and petroleum spiritStandards IEC/EN 60947-5-1; EN 1088; BG-GS-ET-15

//

ES/EM 95

Class

Technical data

DIN EN 50 047 Enclosure glass-fibre reinforced, shock-proof thermo-plastic, self-extinguishing UL 94-V0 Protection class IP 67 to IEC/EN 60529 Contact material silver Switching elements change-over contact with double break Zb or 2NC contacts, galvanically separated contactbridges Switching system A IEC 60947-5-1 slow or snap action, positive break NC contacts Termination plug-in connector Cable section max. 2.5 mm
2 (incl. conductor ferrules) Cable entry M 20 x 1.5 Uimp 4 kV Ui 400 V

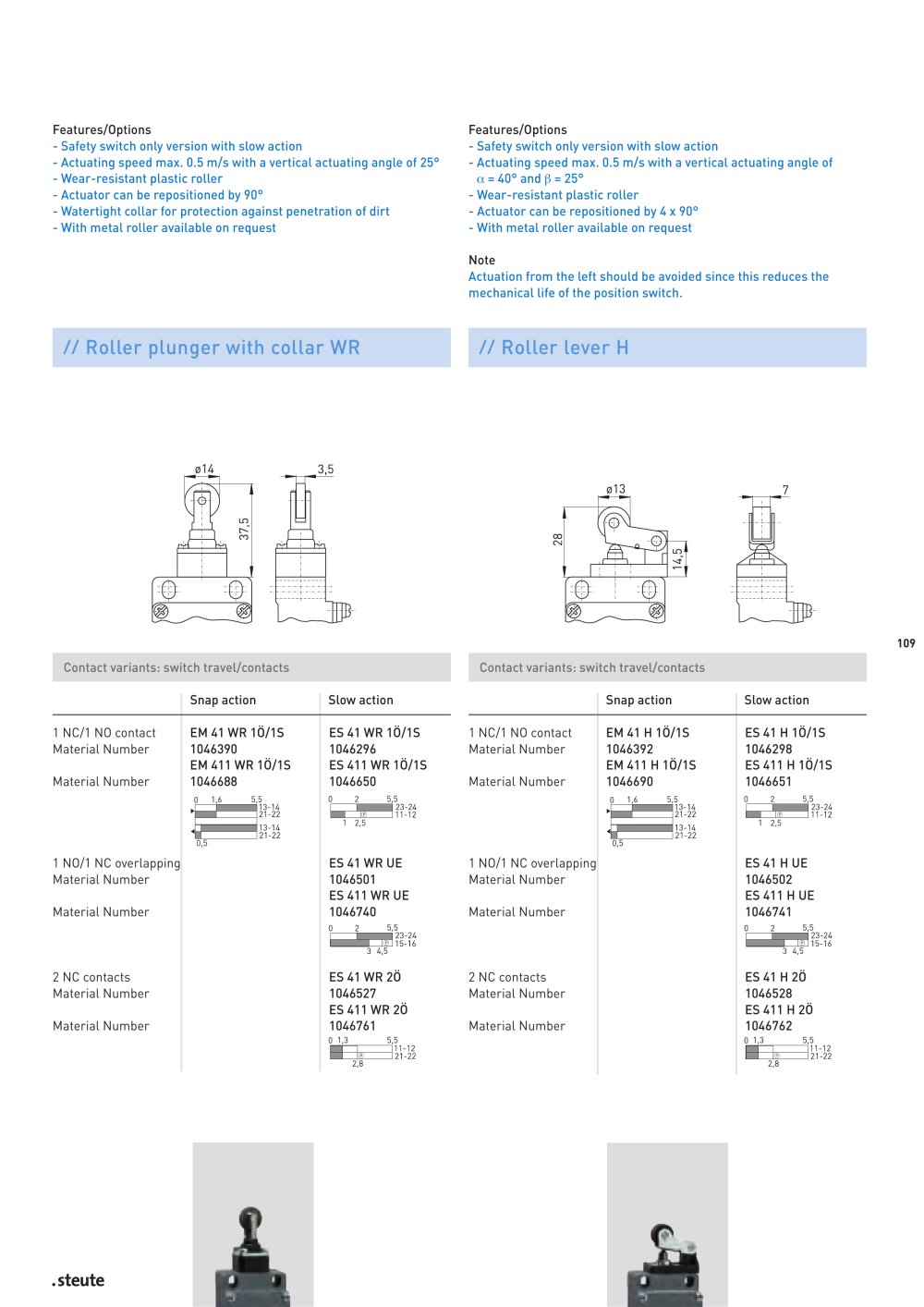

110 Ithe 6 A Utilisation category AC-15; DC-13 Ie/Ue 6 A/400 VAC;0.25 A/230 VDC Max. industrial fuse rating 6 A gL/gG D-fuse Mechanical life > 1 million operations Switching frequency 1800/h Ambient temperature – 20 °C … + 80 °C Contact opening 2 x 3.5 mm Approvals Ordering detailsES 95 WH 1Ö/1S-V-LL Longitudinal slotted holesLockingContact type 1NC/1NO, (2Ö, 2S, UE)Actuator H (R, D, DS, etc. …)Watertight collarSeriesS Slow action (M Snap action)
