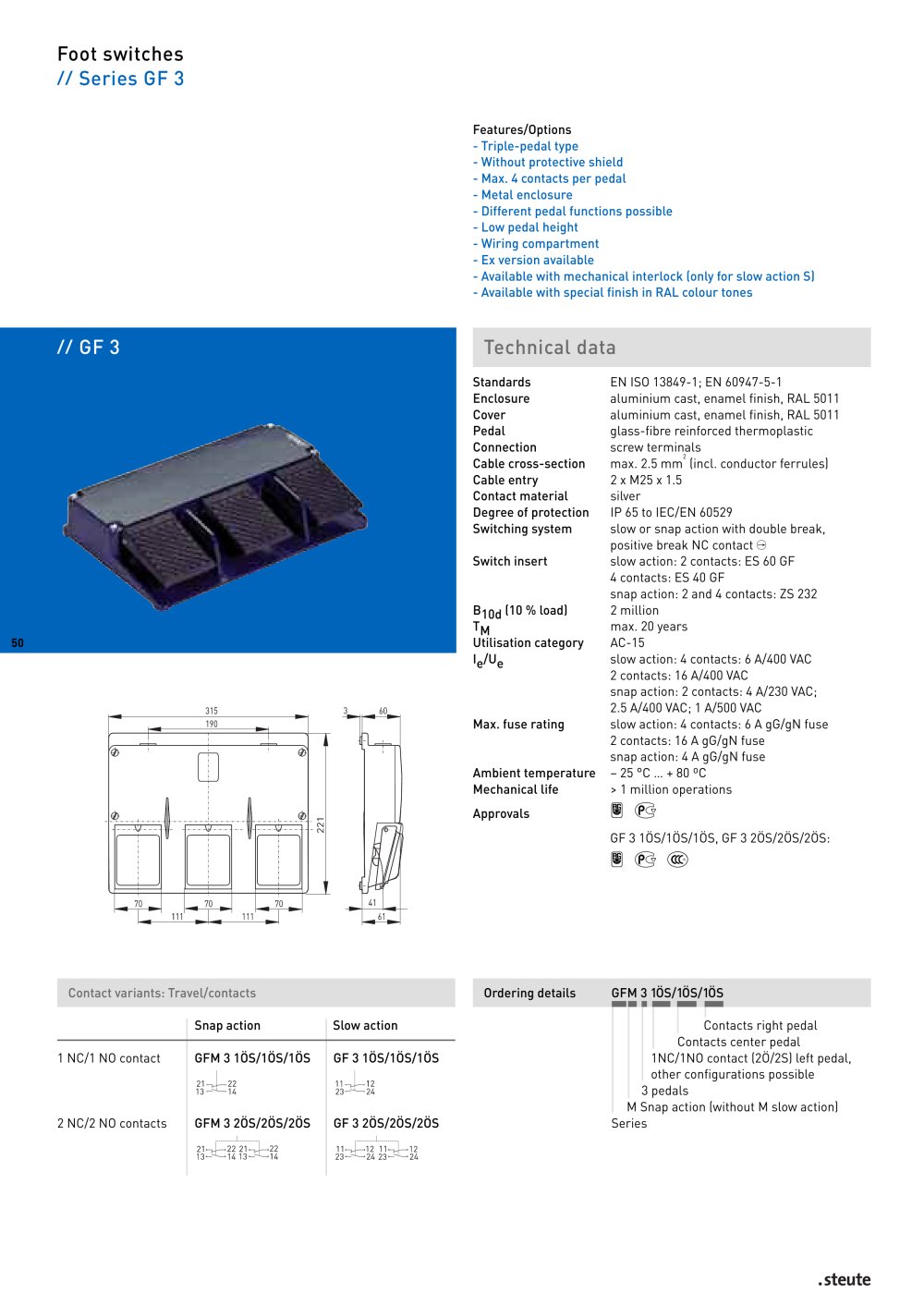

Foot switches

//

Series GF 3

Features/Options IEC/EN 60947-5-1 - Triple-pedal type-Without protective shield - Max. 4 contacts per pedal - Metal enclosure - Different pedal functions possible - Low pedal height - Wiring compartment - Ex version available - Available with mechanical interlock (only for slow action S) - Available with special finish in RAL colour tonesStandards Enclosure aluminium cast, enamel finish, RAL 5011 Cover aluminium cast, enamel finish, RAL 5011 Pedal glass-fibre reinforced thermoplastic Protective shield – Termination screw terminals Wire cross-section max. 2.5 mm

//

GF 3 Technical data

2 (incl. conductor ferrules) Cable entry 2 x M25 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow or snap action with double break, positive break NC contact A Switch insert slow action: 2 contacts: ES 60 GF 4 contacts: ES 40 GF snap action: 2 and 4 contacts: ZS 232 Utilisation category AC-15 Ie/Ue Max. industrial fuse rating slow action: 4 contacts: 6 A/400 VAC 2 contacts: 16 A/400 VAC snap action: 2 contacts: 4 A/230 VAC; 2.5 A/400 VAC; 1 A/500 VAC slow action: 4 contacts: 6 A gL/gG D-fuse2 contacts: 16 A gL/gG D-fuse snap action: 4 A gL/gG D-fuse Ambient temperature – 25 °C … + 80 ºC
50 Mechanical life > 1 million operations Contact variants: Travel/contacts Ordering detailsGFM 3 1ÖS/1ÖS/1ÖS Snap actionSlow action Contacts right pedalContacts center pedal1NC/1NO contact (2Ö/2S) left pedal, other configurations possible3 pedals M Snap action (without M slow action)Series 1 NC/1 NO contact GFM 3 1ÖS/1ÖS/1ÖSGF 3 1ÖS/1ÖS/1ÖS 2 NC/2 NO contacts GFM 3 2ÖS/2ÖS/2ÖSGF 3 2ÖS/2ÖS/2ÖS
