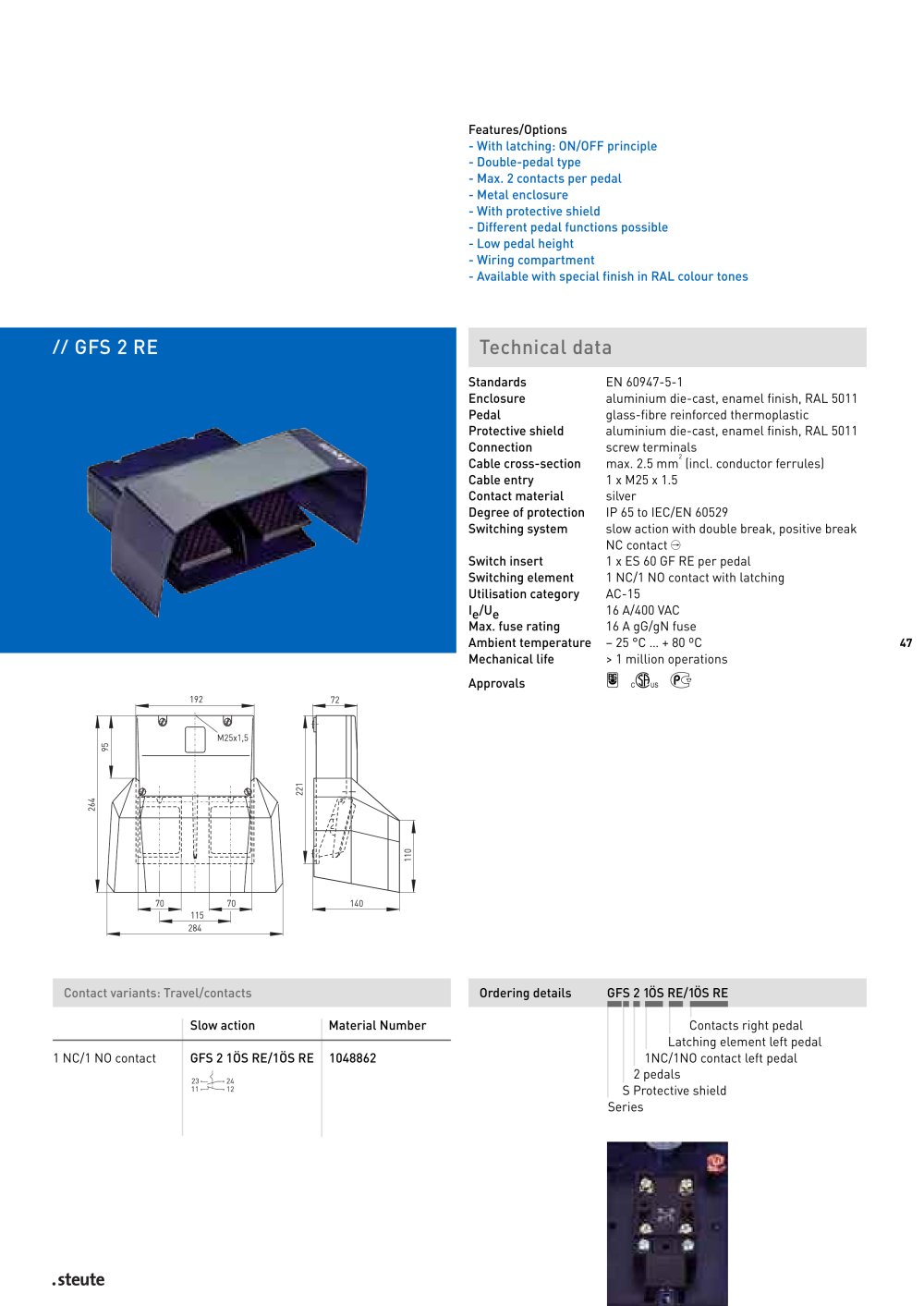

Features/Options - With latching: ON/OFF principle - Double-pedal type - Max. 2 contacts per pedal - Metal enclosure - With protective shield - Different pedal functions possible - Low pedal height - Wiring compartment - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover – Pedal glass-fibre reinforced thermoplastic Protective shield aluminium die-cast, enamel finish, RAL 5011 Termination screw terminals

//

GFS 2 RE

Wire cross-section

Technical data

max. 2.5 mm
2 (incl. conductor ferrules) Cable entry M25 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow action with double break, positive breakNC contact A Switch insert ES 60 GF RE Switching element 1 NC/1 NO contact with latching Utilisation category AC-15 Ie/Ue 16 A/400 VAC Max. industrial fuse rating 16 A gL/gG D-fuse
47 Ambient temperature – 25 °C … + 80 ºC Mechanical life > 1 million operations Contact variants: Travel/contacts Ordering detailsGFS 2 1ÖS RE/1ÖS RE Slow action Contacts right pedalLatching element left pedal1NC/1NO contact left pedal2 pedals S Protective shieldSeries 1 NC/1 NO contact GFS 2 1ÖS RE/1ÖS RE
