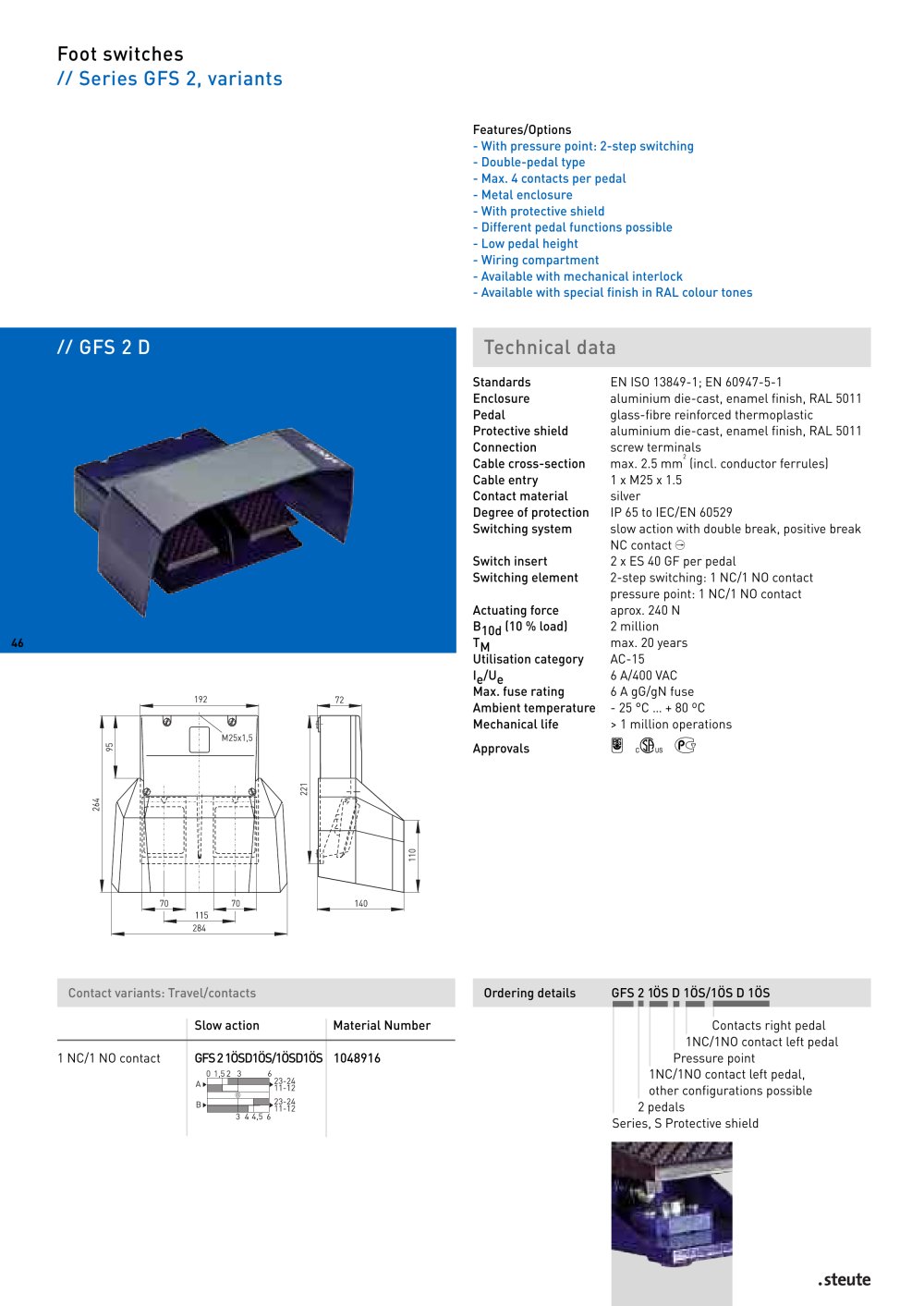

Foot switches

//

Series GFS 2, variants

Features/Options IEC/EN 60947-5-1 - With pressure point: 2-step switching- Double-pedal type - Max. 4 contacts per pedal - Metal enclosure - With protective shield - Different pedal functions possible - Low pedal height - Wiring compartment - Available with mechanical interlock - Available with special finish in RAL colour tonesStandards Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover – Pedal glass-fibre reinforced thermoplastic Protective shield aluminium die-cast, enamel finish, RAL 5011 Termination screw terminals Wire cross-section max. 2.5 mm

//

GFS 2 D Technical data

2 (incl. conductor ferrules) Cable entry M25 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow action with double break, positive break NC contact A Switch insert ES 40 GF Switching element 2-step switching: 1 NC/1 NO contact pressure point: 1 NC/1 NO contact Actuating force aprox. 240 N
46 Utilisation category AC-15 Ie/Ue 6 A/400 VAC Max. industrial fuse rating 6 A gL/gG D-fuse Ambient temperature - 25 °C … + 80 ºC Mechanical life > 1 million operations Approvals Contact variants: Travel/contacts Ordering detailsGFS 2 1ÖS D 1ÖS/1ÖS D 1ÖS Slow action Contacts right pedal1NC/1NO contact left pedalPressure point1NC/1NO contact left pedal, other configurations possible2 pedals Series, S Protective shield 1 NC/1 NO contact GFS 2 1ÖS D 1ÖS/1ÖS D 1ÖS
