Features/Options - With potentiometer: Analogue output- Double-pedal type - Metal enclosure - With various potentiometers available: 1 k , 2 k , 5 k or 10 k - Start value can be set in factory - Without protective shield - Different pedal functions possible - Low pedal height - Wiring compartment - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover aluminium cast, enamel finish, RAL 5011 Pedal glass-fibre reinforced thermoplastic Protective shield – Termination soldering terminals Cable entry M25 x 1.5 Contact material silver, gold-plated

//

GF 2 POTI

Protection class

Technical data

IP 65 to EN 60529 Switching system potentiometer Resistance R 20 … 1 k ±3 %;20 … 2 k ±3 %;50 … 5 k ±3 %;100 … 10 k ±3 % Linearity ±0.5 % Utilisation category – Ie/Ue micro switch manufacturer: 0.1 A/250 VAC; 0.1 A/24 VDC

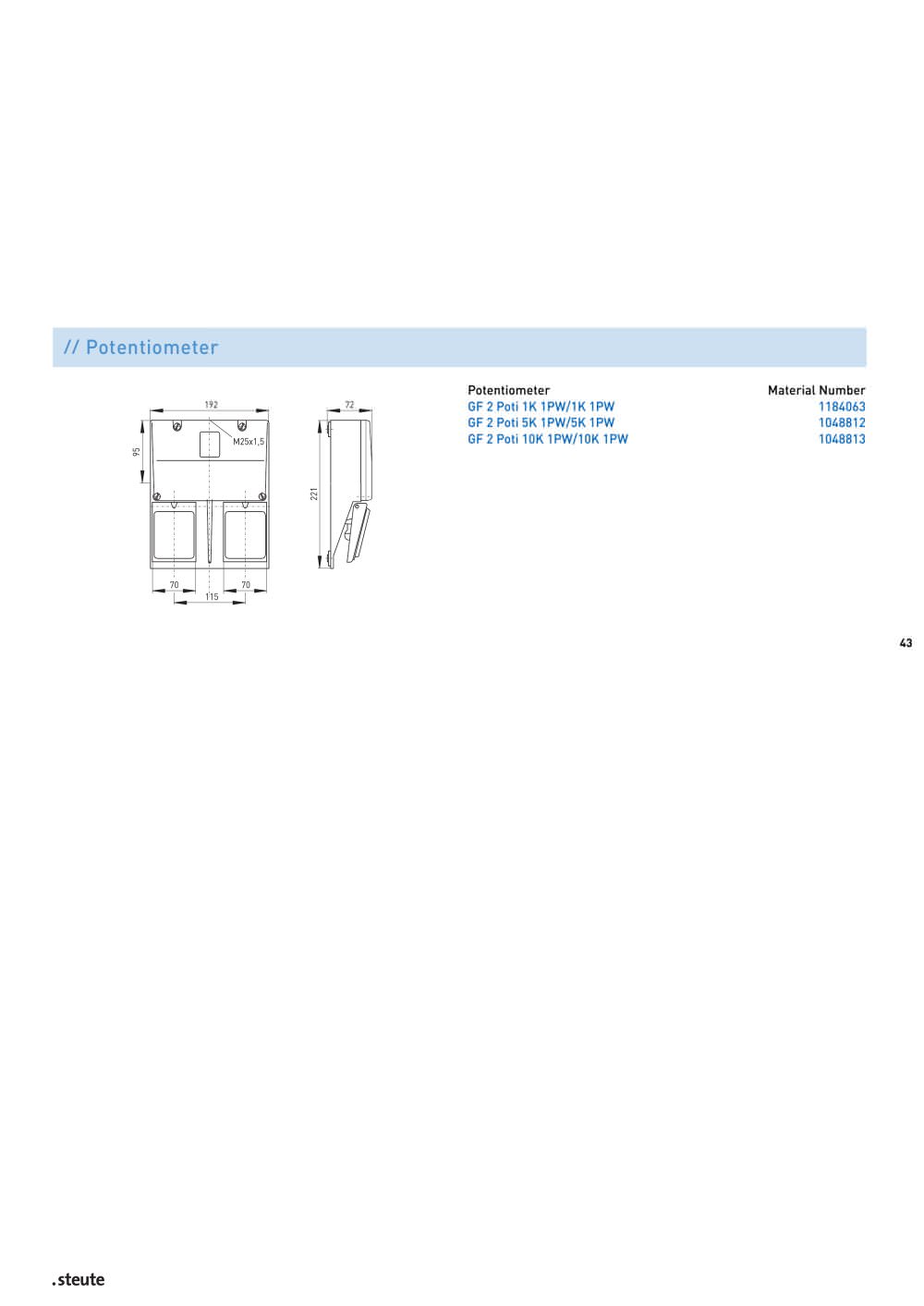

43 Switching power potentiometer: max. 1.5 W at 40 °C Max. industrial fuse rating – Ambient temperature – 15 °C … + 80 °C Mechanical life > 1 million operations Note The built-in micro switch provides for poten-tial-free switching of the potentiometer. Contact variants: Travel/contacts Ordering detailsGF 2 POTI 1k 1PW/1k 1PW Potentiometer Contacts right pedal
Micro sw.1 change-over (2PW) l.p.POTI value 1 k 1 change-over GF 2 POTI … 1PW/… 1PW
(2, 5 or 10 k ) leftpedal , other configur. possible
Potentiometer 2 pedals 2 change-over GF 2 POTI … 2PW/… 2PW
Series
